Schneider Electric 389FXAXC1-240A

Schneider Electric 389FXAXC1-240A

MPN389FXAXC1-240A
Obsolete

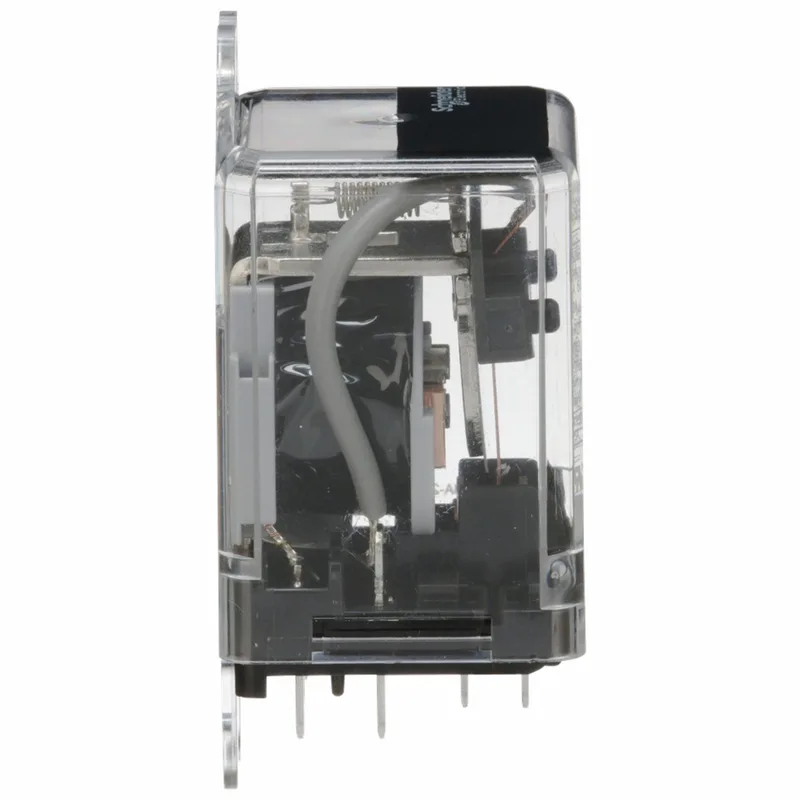

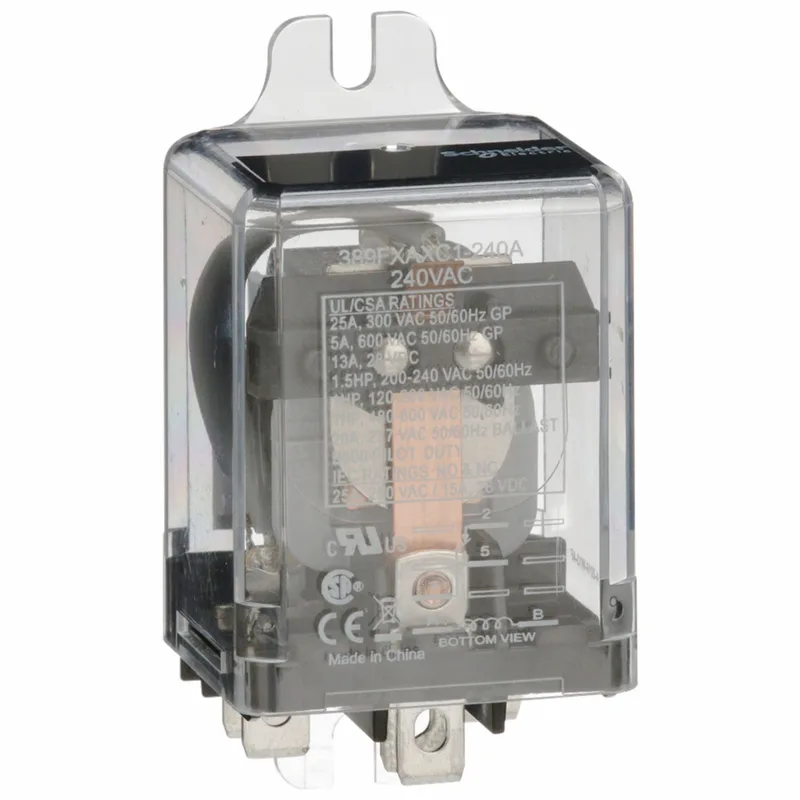

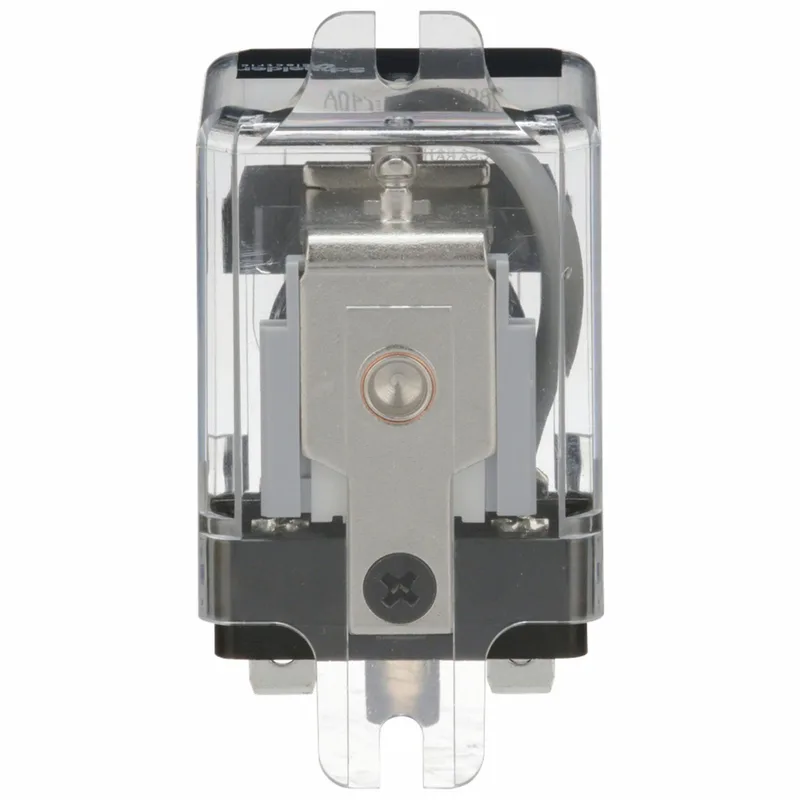

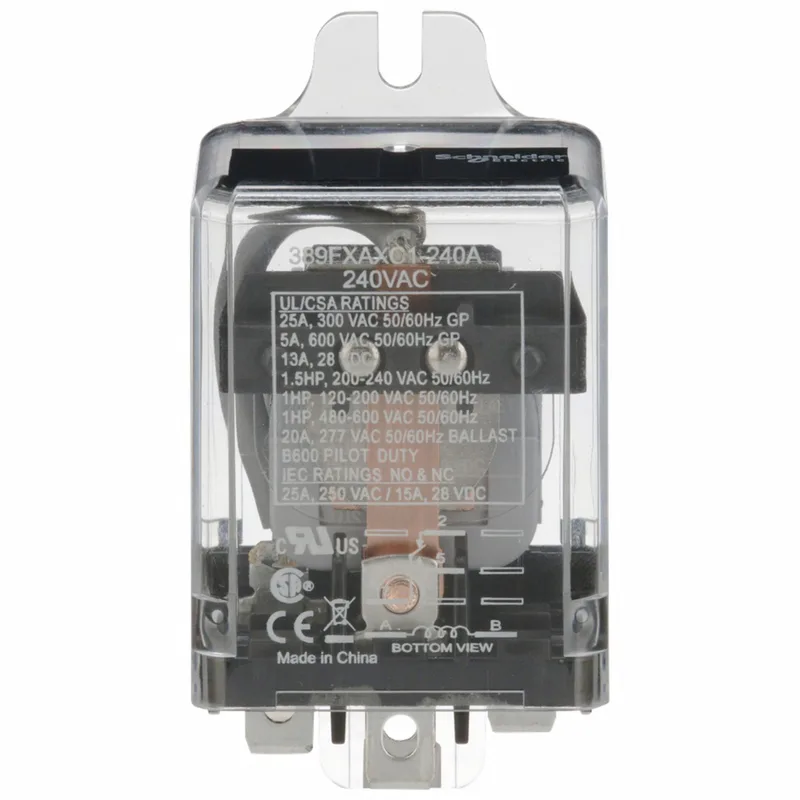

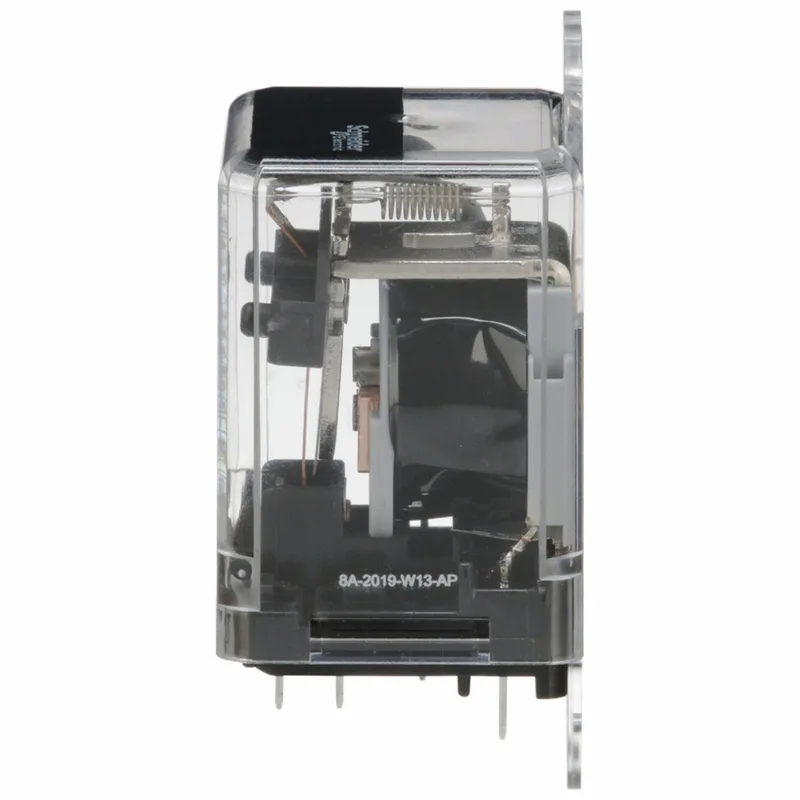

SCHNEIDER Enclosed Power Relay: Surface (Side Flange) Mounted, 25 A Current Rating, 240V AC, SPDT

Schneider Electric 389FXAXC1-240A datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

389FXAXC1-240A key specifications
ParameterValue
Product typePower relay
Input voltage240 V AC
Voltage range0.85...1.1 Uc AC
Maximum switching voltage600 V AC
Drop-out voltage threshold>= 0.1 Uc AC/DC
Input current25 A
Short circuit current3 kA
Minimum switching current100 mA 5 V DC
Rated operational current25 A at 300 V AC (on resistive load) conforming to UL 5 A at 600 V AC (on resistive load) conforming to UL 13 A at 28 V DC (on resistive load) conforming to UL 22 A at 120 V AC (full load) conforming to UL 20 A at 277 V AC (ballast) conforming to UL 25 A at 250 V AC-1 (NO/NC) conforming to IEC 15 A at 28 V DC-1 (NO/NC) conforming to IEC
Motor power1.5 hp 200/240 V AC 50/60 Hz 1 hp 120...200V AC 50/60 Hz 1 hp 600 V AC 50/60 Hz
Power consumption in1.3 W DC
Average pole impedance4 mOhm

All specifications

389FXAXC1-240A additional specifications
ParameterValue
IP degree of protectionIP40
MountingFlange
Wire strip length0.3 in (8 mm)
Connections terminalsQuick
Product weight3.0 oz (84 g)
Contacts materialSilver alloy contacts
Electrical durability100000 cycles resistive load 50000 cycles resistive DC load
Mechanical durability5000000 cycles
CategoryUS10CP221127
Coil resistance7200 Ohm
Switch functionSPDT
Contact composition1 NC + 1 NO
Dielectric strength2200 V AC between coil and contact 2200 V AC between poles 1600 V AC between contacts
Associated fuse rating32 A gG at 400 V coordination type 2 for power circuit
Ambient air temperature for storage-22...185 °F (-30...85 °C)
Ambient air temperature for operation-22...131 °F (-30...55 °C)
