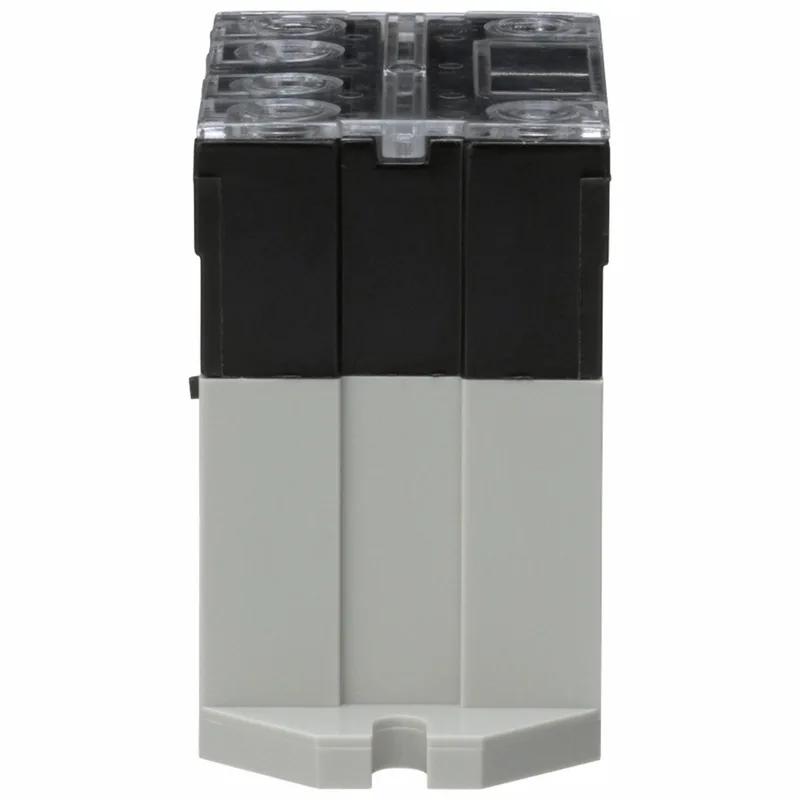

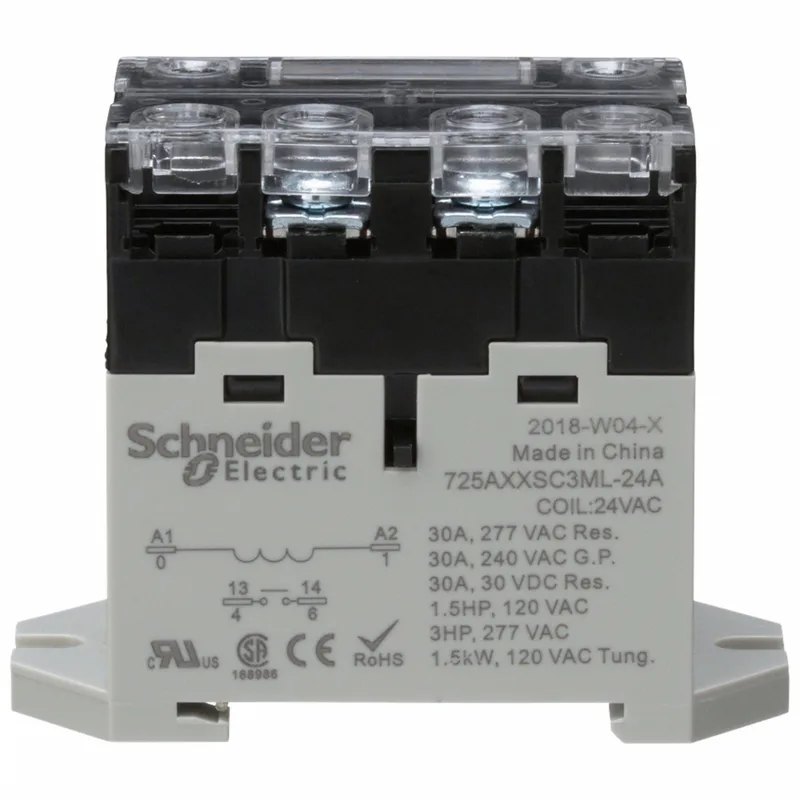

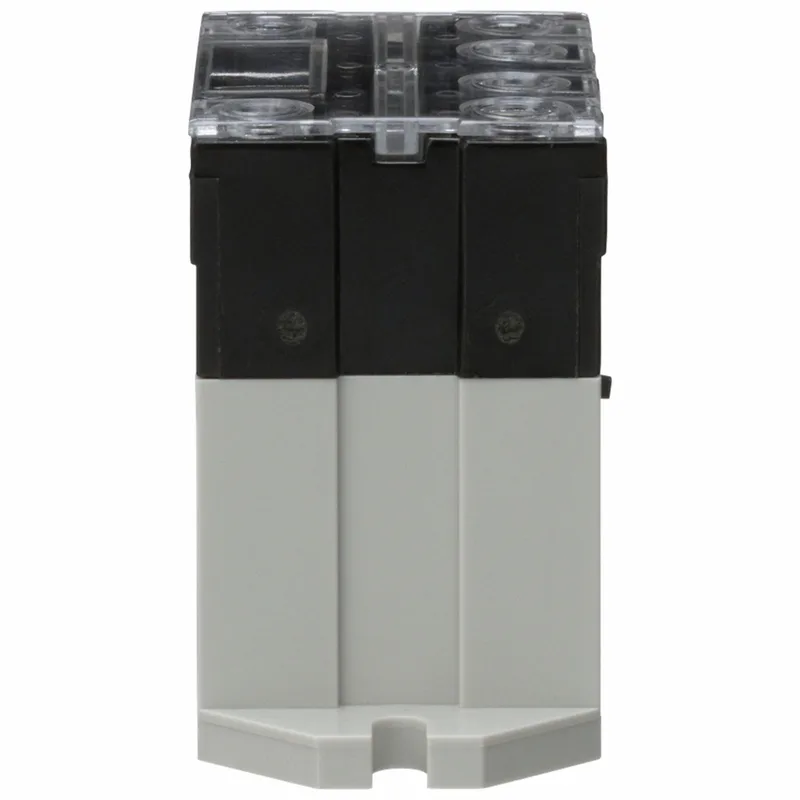

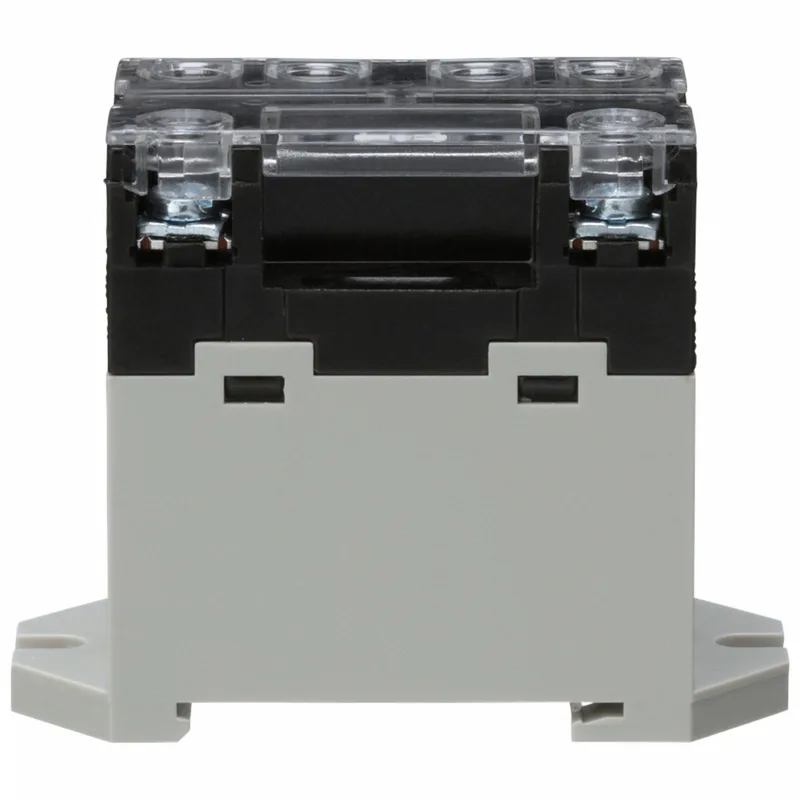

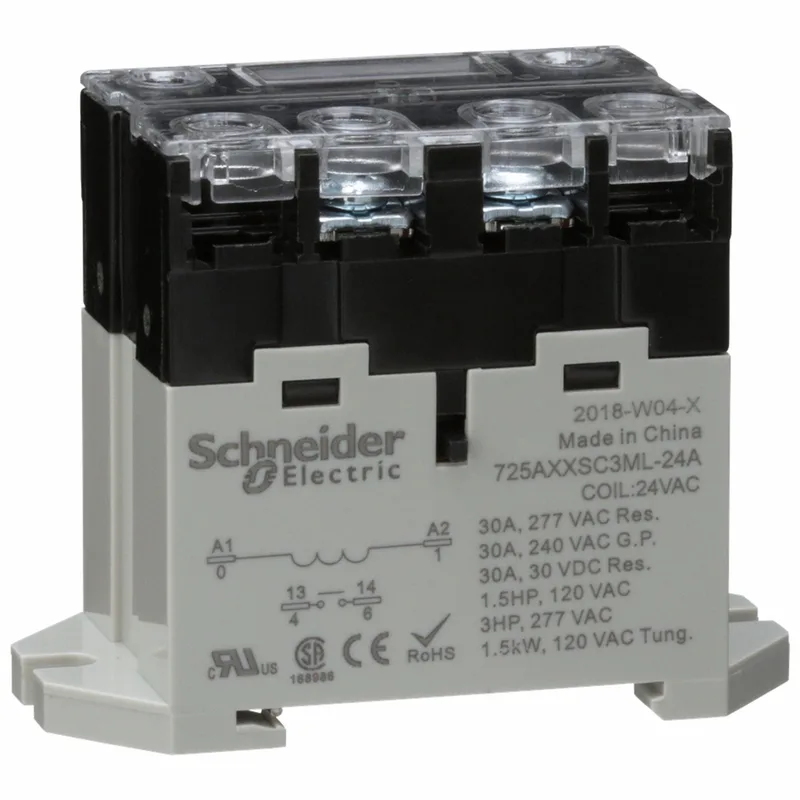

Schneider Electric 725AXXSC3ML-24A
MPN725AXXSC3ML-24A
Active
SCHNEIDER Enclosed Power Relay: DIN-Rail & Surface Mounted, 30 A Current Rating, 24V AC, SPST-NO
$34.79Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Power relay |
| Series name | 725 series |
| Control type | Test button |
| Range of product | Harmony Electromechanical Relays |
| Product or component type | DIN rail/panel mount relay |
| Contacts type and composition | 1 NO |
| Nominal input voltage | 20.4...26.4 V AC 50/60 Hz |
| Maximum switching voltage | 240 V CE 277 V UL |
| Drop-out voltage threshold | AC |
| Coil voltage | 24 V AC |
| Short-circuit current | 3 kA |
| Minimum switching current | 100 mA 5 V DC |
All specifications
| Parameter | Value |
|---|---|
| [Ie] rated operational current | 30 A at 277 V AC (on resistive load) conforming to UL 30 A at 240 V AC (general purpose) conforming to UL 30 A at 30 V DC (on resistive load) conforming to UL 30 A at 240 V AC (on resistive load) conforming to IEC 30 A at 28 V DC (on resistive load) conforming to IEC |
| [Ithe] conventional enclosed thermal current | 30 A |
| Rated power in | 3 hp 277 V AC 1.5 hp 120 V AC |
| Network frequency | 50/60 Hz |
| Average pole impedence | 2 mOhm |
| IP degree of protection | IP20 |
| Mounting support | DIN rail Panel |
| Wire stripping length | 0.3 in (8 mm) |
| Response time | 30 ms |
| Depth | 2.1 in (53.9 mm) |
| Width | 1.4 in (34.9 mm) |
| Height | 2.7 in (67.7 mm) |
| Contacts material | Silver alloy contacts |
| Electrical durability | 100000 cycles resistive IEC |
| Mechanical durability | 5000000 cycles |
| Standards | IEC 60947-1 UL 60947-4-1A |
| Category | US10CP221127 |
| Status LED | With |
| Class number | 725 |
| Shape of pin | Screw |
| Coil resistance | 275 Ohm |
| Local signalling | LED indicator test button |
| Tightening torque | 10.6...15 lb.in 1.2...1.7 N.m |
| Dielectric strength | 4000 V AC between coil and contact |
| Associated fuse rating | 32 A gG at 400 V coordination type 2 for power circuit |
| Average coil consumption | 2.50 VA |
| Ambient air temperature for storage | -67...212 °F (-55...100 °C) |
| Ambient air temperature for operation | -4...131 °F (-20...55 °C) |
