Schneider Electric 782XBXC-240A

Schneider Electric 782XBXC-240A

MPN782XBXC-240A
Obsolete

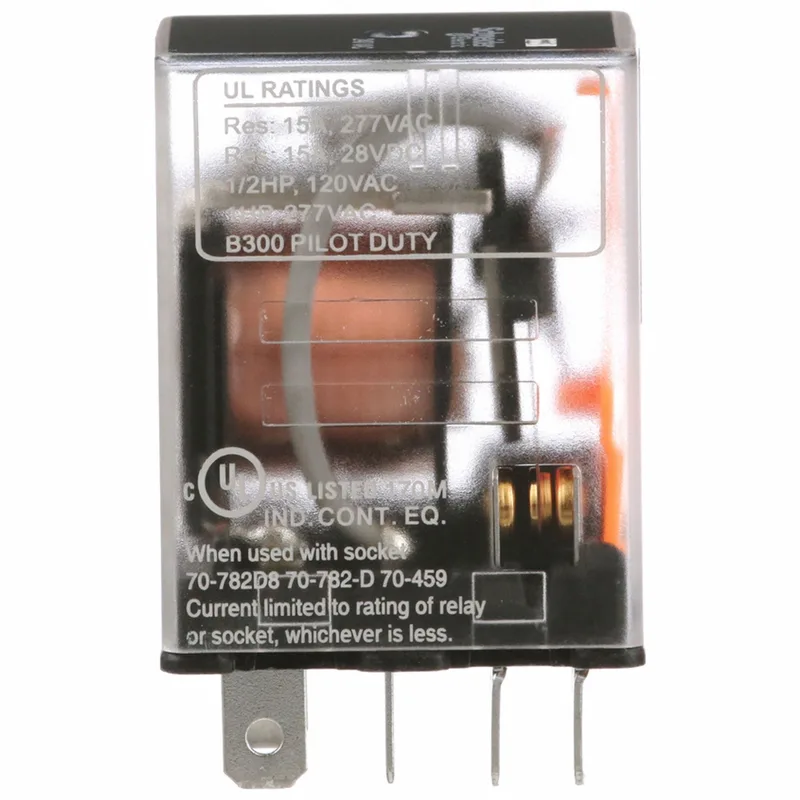

Power relay, SE Relays, 15A, DPDT, 240 VAC, clear cover

$13.33Ref. price · indicative, final on quote
Schneider Electric 782XBXC-240A datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

782XBXC-240A key specifications
ParameterValue
Product typePower relay
Input voltage240 V AC
Voltage range0.8...1.1 Un AC/DC
Maximum switching voltage300 V AC UL 300 V AC CSA 250 V AC IEC
Drop-out voltage threshold>= 0.15 Uc AC >= 0.1 Uc DC
Input current15 A
Minimum switching current10 mA 17 V
Rated operational current15 A at 120...277 V AC conforming to UL 15 A at 28 V DC conforming to UL 15 A at 120/150 V AC conforming to CSA 10 A at 151/277 V AC conforming to CSA 15 A at 28 V DC conforming to CSA 15 A at 250 V AC (NO) conforming to IEC 15 A at 28 V DC (NO) conforming to IEC 7.55 A at 250 V AC (NC) conforming to IEC 7.55 A at 28 V DC (NC) conforming to IEC
Motor power0.5 hp 120 V AC 50/60 Hz 1 hp 277 V AC 50/60 Hz
Power consumption in0.85 W DC
MountingSocket
Connections terminalsFaston terminals

All specifications

782XBXC-240A additional specifications
ParameterValue
Shock resistance15 gn in operation
Vibration resistance+/- 1 mm 10...35 Hz) 3 gn 35...150 Hz)
Depth1.07 in (27.3 mm)
Width0.8 in (21 mm)
Height1.4 in (34.8 mm)
Product weight1.3 oz (36 g)
Contacts materialSilver alloy, gold flashed
Electrical durability100000 cycles resistive
Mechanical durability10000000 cycles
CategoryUS10CP221127
Product rangeLegacy
Operating time20 ms operating 20 ms tripping
Coil resistance17720 Ohm
Switch functionDPDT
Local signallingFlag
Contact composition2 NO + 2 NC
Dielectric strength2000 V AC between coil and contact 2000 V AC between poles 1500 V AC between contacts
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation-40...131 °F (-40...55 °C)
MPN
782XBXC-240A
