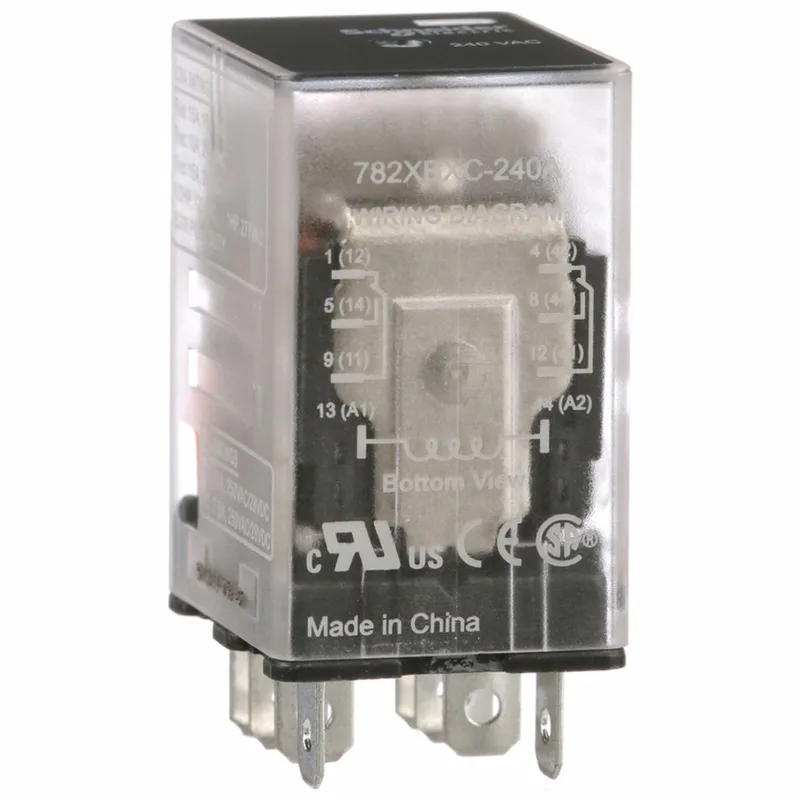

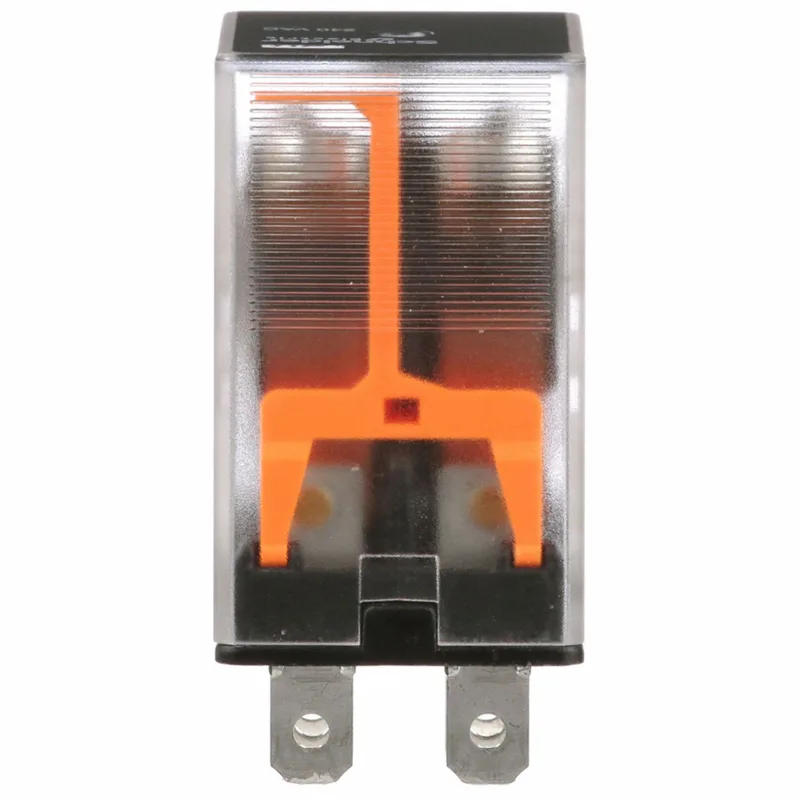

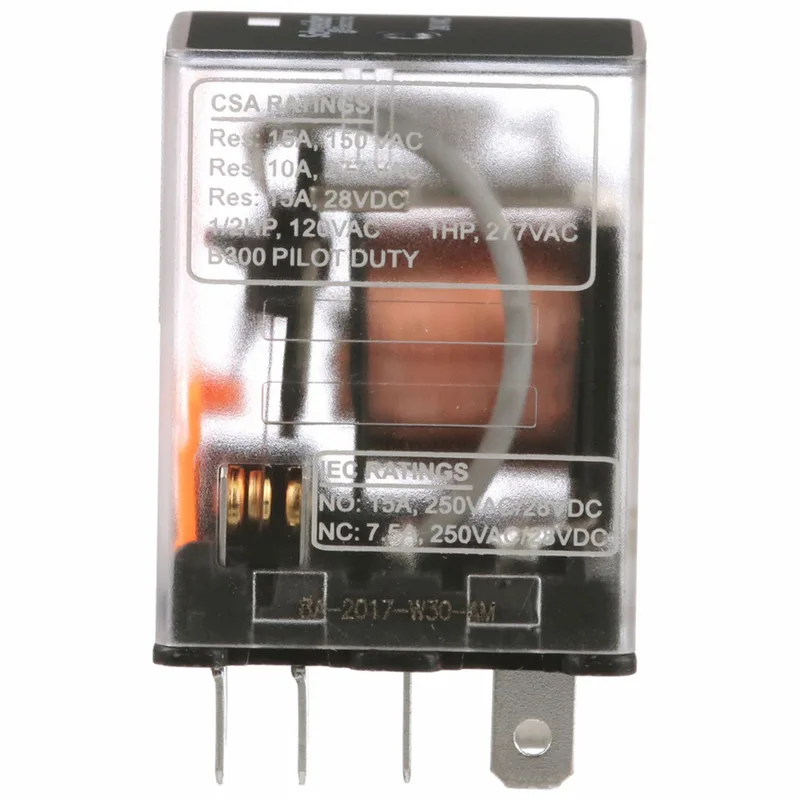

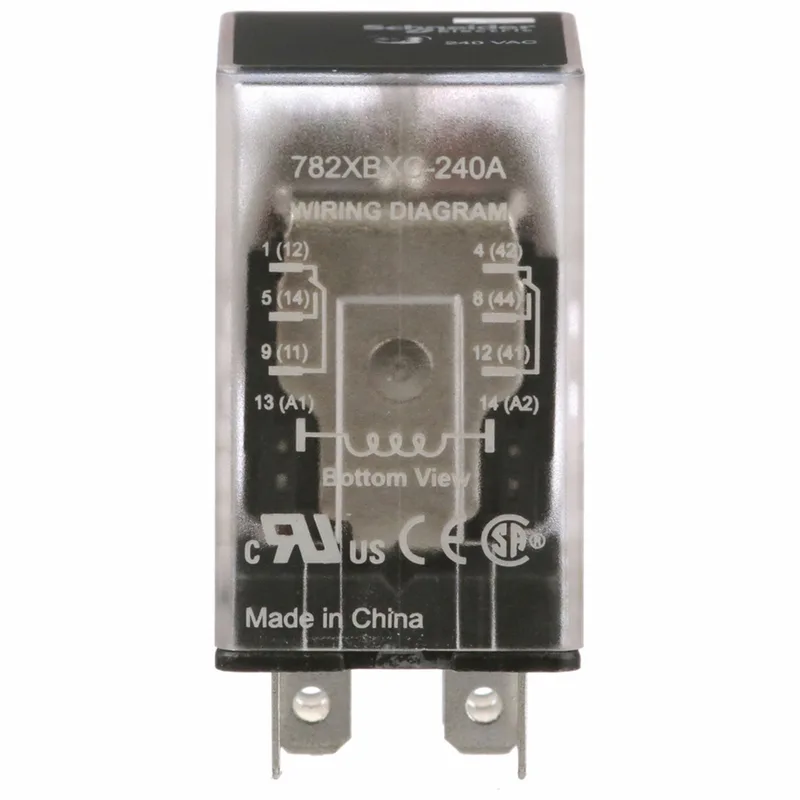

Schneider Electric 782XBXC240A
MPN782XBXC240A
Square D 782XBXC240A (Nri)|Square D 782XBXC240A (Nri)
$13.33Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 782 Series |
| Height | 35.56 |
| Dielectric | 1,500 V AC Between Contacts; 2,000 V AC Between Coil and Contact; 2,000 V AC Between Poles |
| Motor_rated | yes |
| Socket_code | D |
| Contact form | DPDT |
| Horsepower | 1/2 hp |
| Mounting | Socket |
| Terminal_type | Tab |
| Coil voltage | 240 |
| Terminal_count | 8 |
| Contact rating | 7.55 |
| Has_push_to_test | No Test Button |
| Switching current | 15 |
| Has_status_indicator | Mechanical Flag |
| Electrical_life_cycles | 100 |
| Mechanical_life_cycles | 10 |
MPN
782XBXC240A
