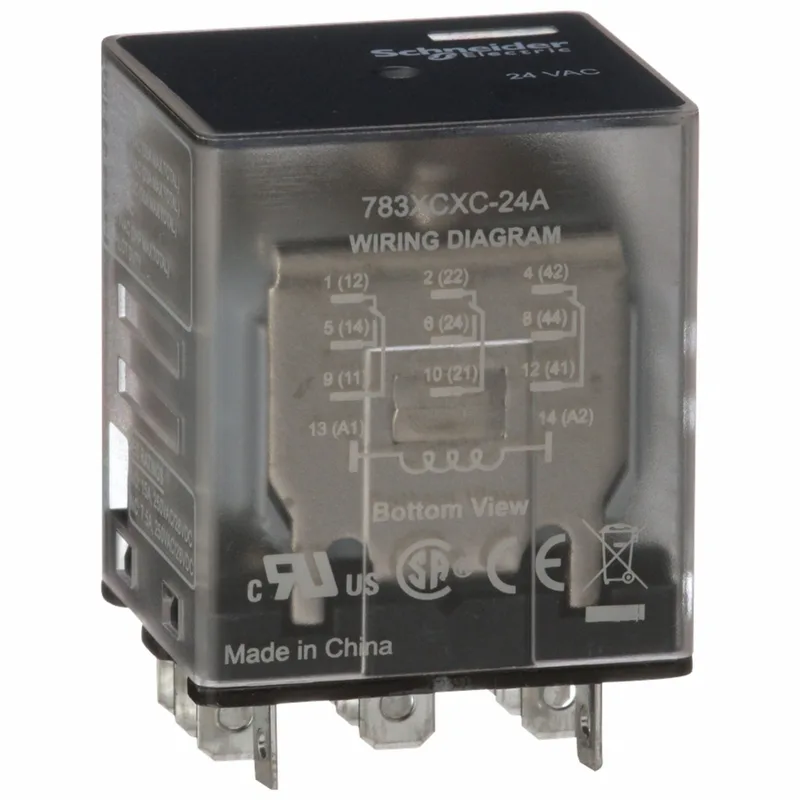

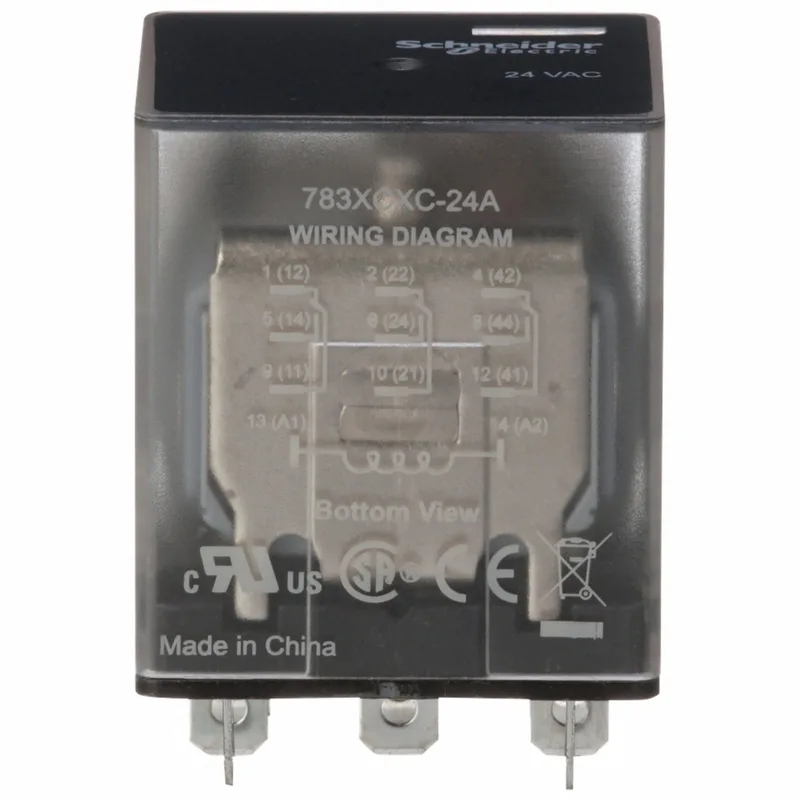

Schneider Electric 783 Series 783XCXC-24A power relay, 3PDT, 15 A contact rating, 24 V coil, 1/2 hp, socket mount, lockable push-to-test, mechanical flag.
| Parameter | Value |
|---|---|
| Product type | Power relay |
| Input voltage | 24 V AC |
| Voltage range | 0.8...1.1 Un AC/DC |
| Maximum switching voltage | 300 V AC UL 300 V AC CSA 250 V AC IEC |
| Drop-out voltage threshold | >= 0.15 Uc AC >= 0.1 Uc DC |
| Input current | 15 A |
| Minimum switching current | 10 mA 17 V |

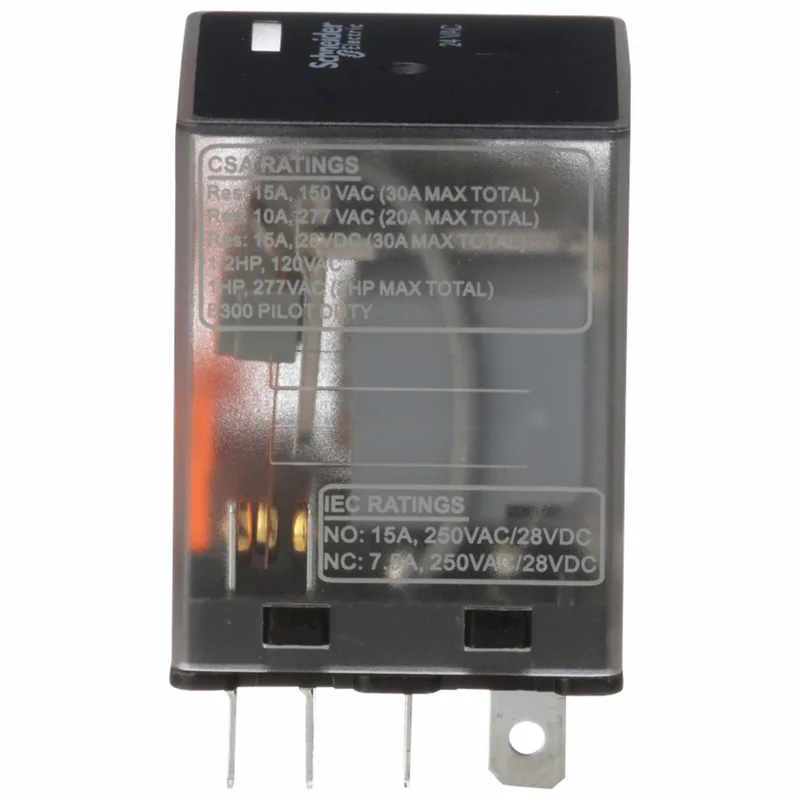

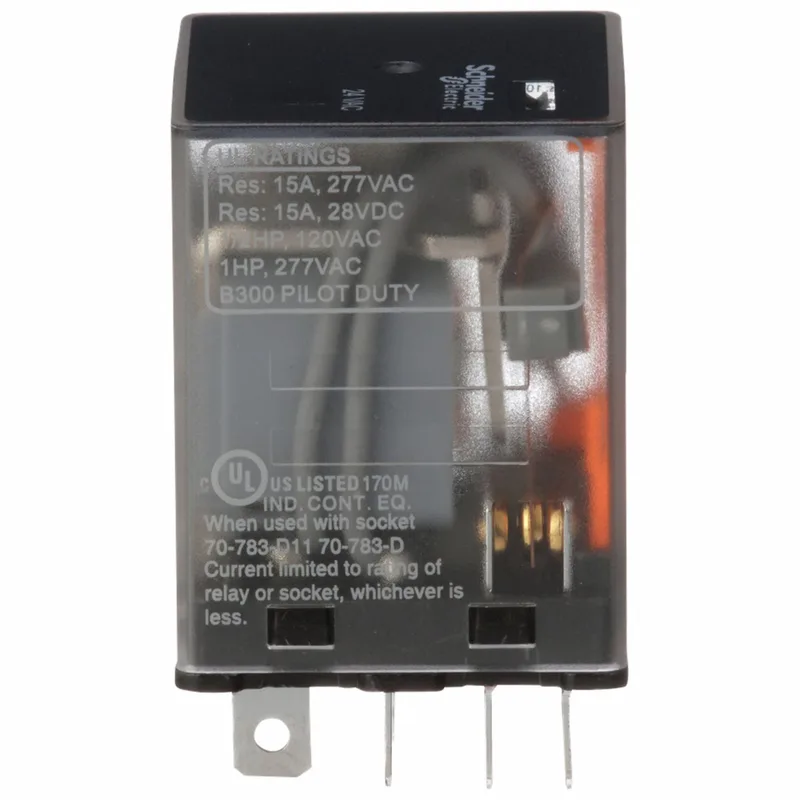

| Rated operational current | 15 A at 120...277 V AC conforming to UL 15 A at 28 V DC conforming to UL 15 A at 120/150 V AC conforming to CSA 10 A at 151/277 V AC conforming to CSA 15 A at 28 V DC conforming to CSA 15 A at 250 V AC (NO) conforming to IEC 15 A at 28 V DC (NO) conforming to IEC 7.55 A at 250 V AC (NC) conforming to IEC 7.55 A at 28 V DC (NC) conforming to IEC |
| Motor power | 0.5 hp 120 V AC 50/60 Hz 1 hp 277 V AC 50/60 Hz |
| Power consumption in | 1.7 VA AC |
| Mounting | Socket |
| Connections terminals | Faston terminals |
| Parameter | Value |
|---|---|
| Shock resistance | 15 gn in operation |
| Vibration resistance | +/- 1 mm 10...35 Hz) 3 gn 35...150 Hz) |
| Depth | 1.07 in (27.3 mm) |
| Width | 1.2 in (30.6 mm) |
| Height | 1.4 in (34.8 mm) |
| Product weight | 1.9 oz (54 g) |
| Contacts material | Silver alloy, gold flashed |
| Electrical durability | 100000 cycles resistive |
| Mechanical durability | 10000000 cycles |
| Category | US10CP221127 |
| Operating time | 20 ms operating 20 ms tripping |
| Coil resistance | 110 Ohm |
| Switch function | 3PDT |
| Local signalling | Flag |
| Contact composition | 3 NO + 3 NC |
| Dielectric strength | 2000 V AC between coil and contact 2000 V AC between poles 1500 V AC between contacts |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -40...131 °F (-40...55 °C) |

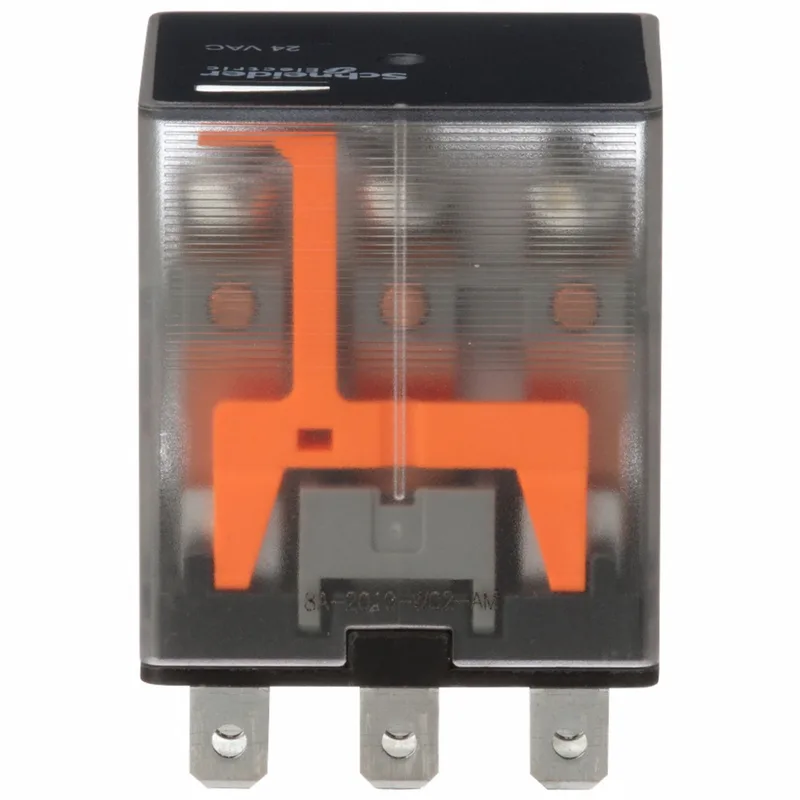

The 783XCXC-24A is a 783 Series power relay from Schneider, switching 15 A through a 3PDT contact set on a 24 V coil. It carries a 1/2 hp motor rating and includes a lockable push-to-test button and a mechanical flag for local status indication.
