Schneider Electric 783XCXC12D
MPN783XCXC12D

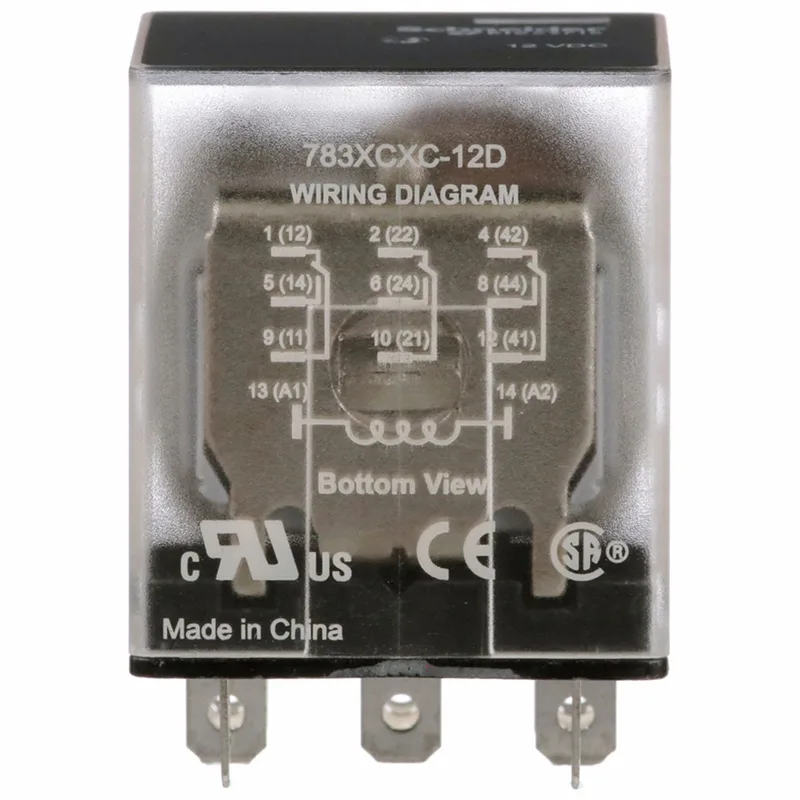

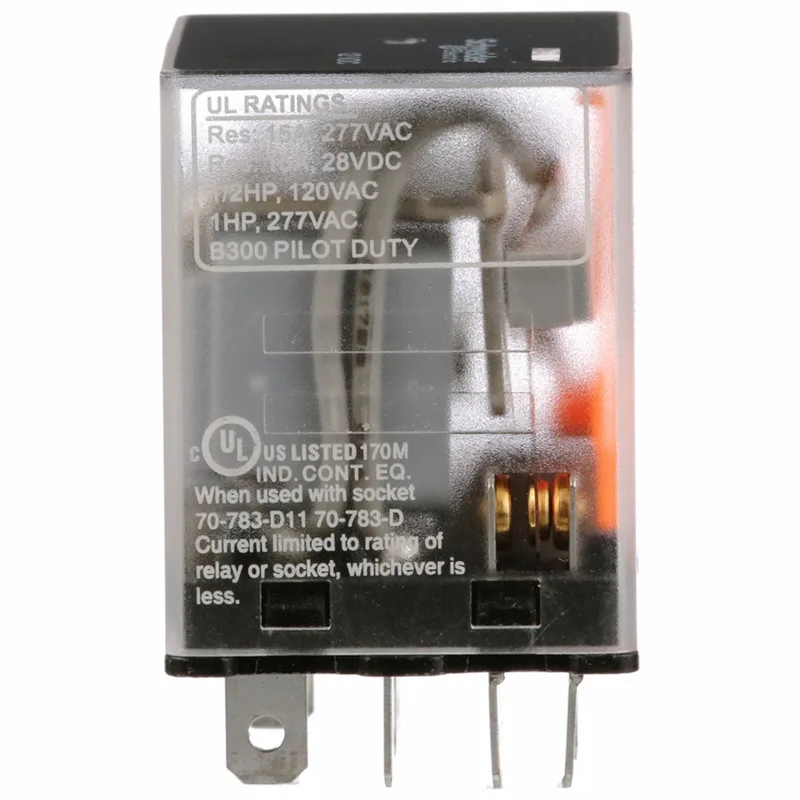

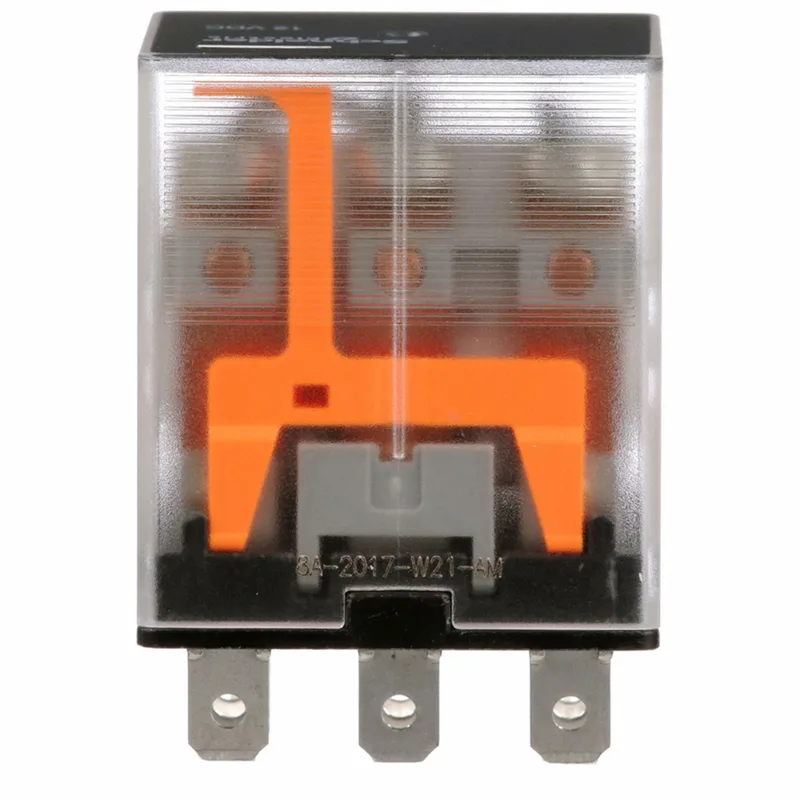

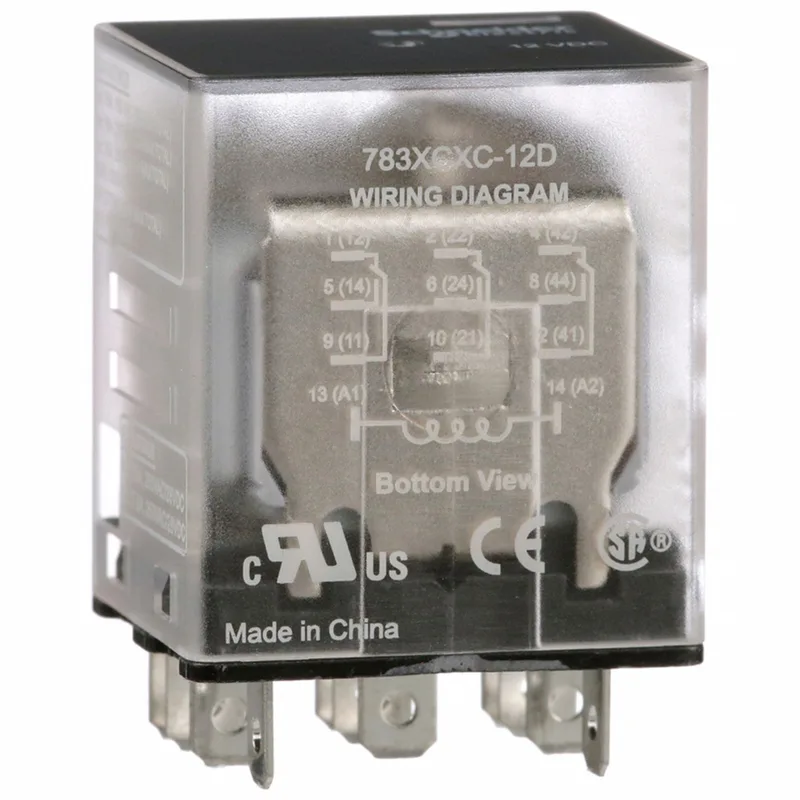

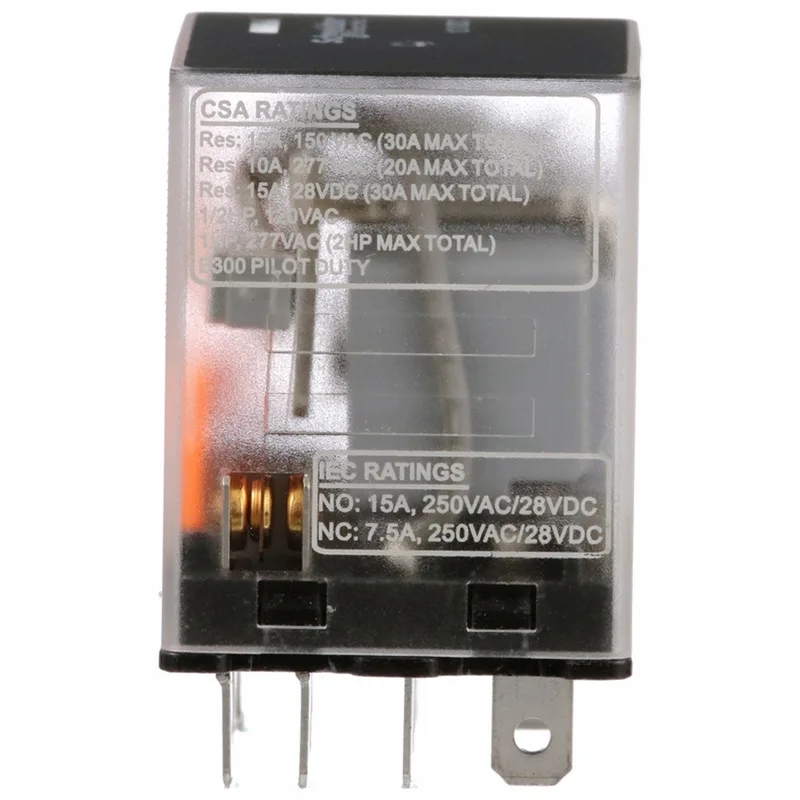

Square D 783XCXC12D 15A Plug-In Relay|Square D 783XCXC12D 15A Plug-In Relay
$18.60Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 783 Series |
| Horsepower | 1/2 hp |
| Mounting | Socket |
| Terminal_type | Tab |
| Terminal_count | 11 |
| Width | 30.48 |
| Height | 35.56 |
| Dielectric | 1,500 V AC Between Contacts; 2,000 V AC Between Coil and Contact; 2,000 V AC Between Poles |
| Motor_rated | yes |
| Socket_code | E |
| Contact form | 3PDT |
| Coil voltage | 12 |
| Contact rating | 7.55 |
| Has_push_to_test | Lockable Push Test Button |
| Switching current | 15 |
| Has_status_indicator | Mechanical Flag |
| Electrical_life_cycles | 100 |
| Mechanical_life_cycles | 10 |
MPN
783XCXC12D
