Schneider Electric 784XDXC-12D

MPN784XDXC-12D

Obsolete

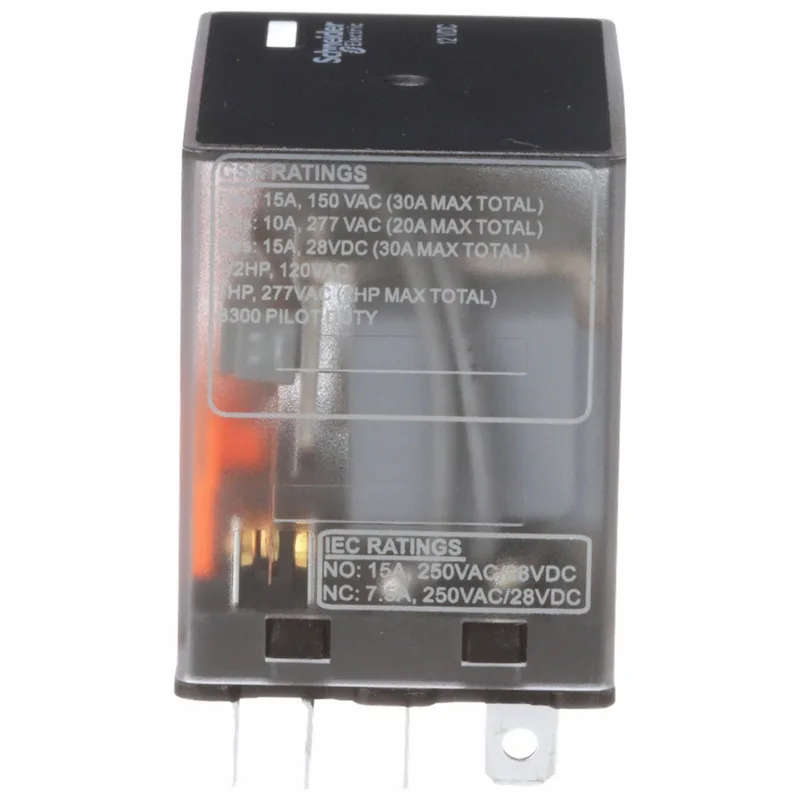

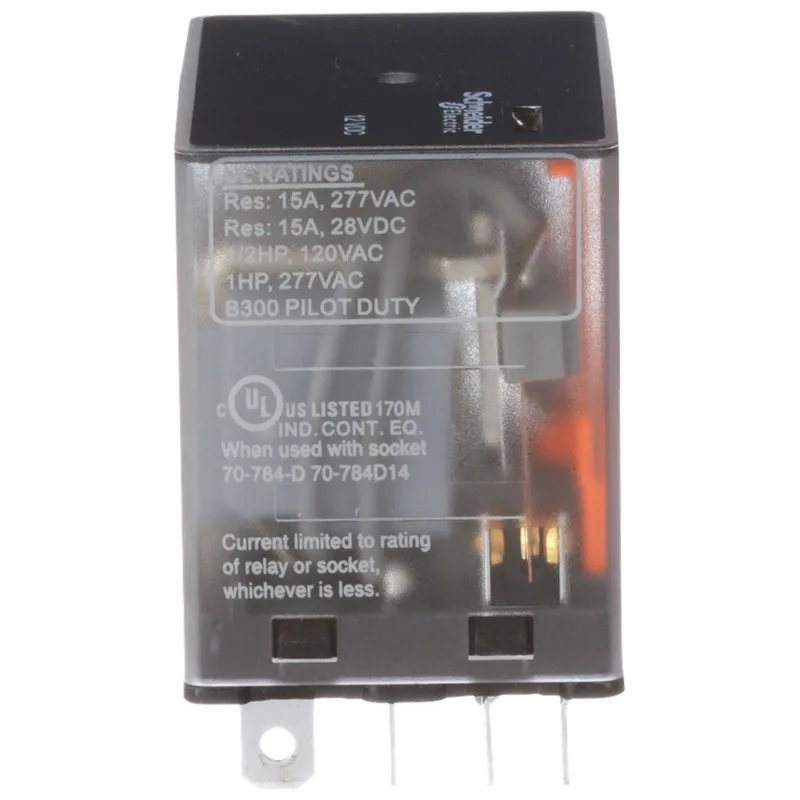

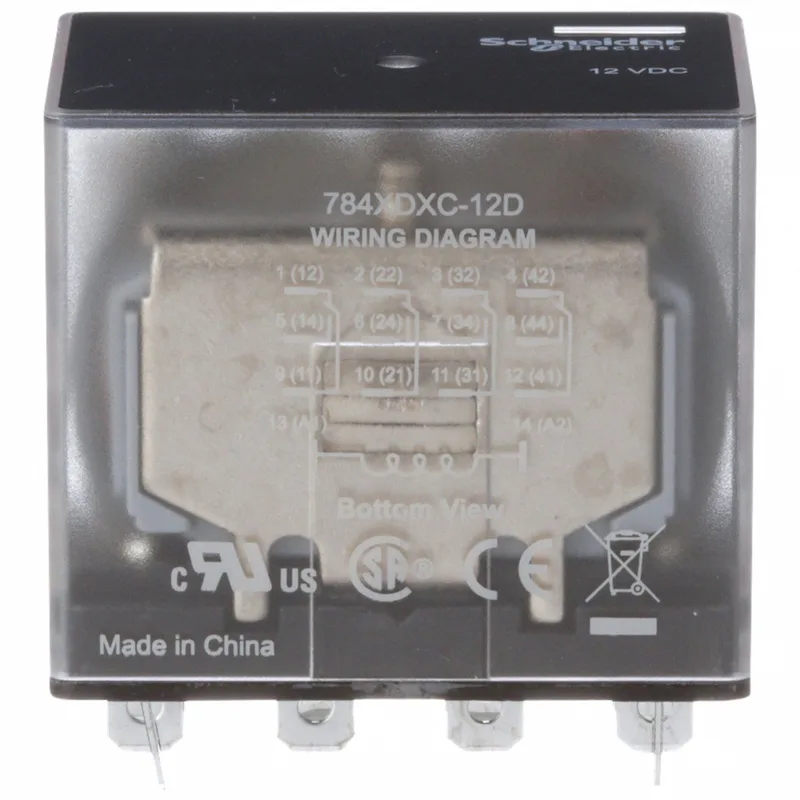

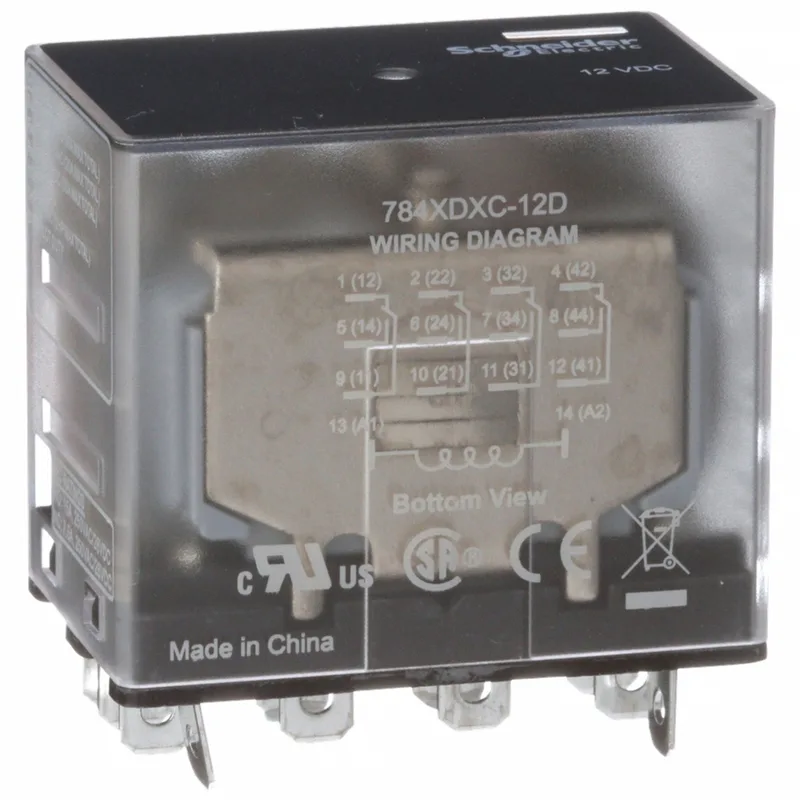

Square D 784XDXC-12D Power relay SE Relays 15A 4PDT 12 VDC clear cover|Square D 784XDXC-12D Power relay, SE Relays, 15A, 4PDT, 12 VDC, clear cover

$11.69 – $21.77Ref. price · indicative, final on quote

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

784XDXC-12D key specifications
Parameter	Value
Product type	Power relay
Input voltage	12 V DC
Voltage range	0.8...1.1 Un AC/DC
Maximum switching voltage	300 V AC UL 300 V AC CSA 250 V AC IEC
Drop-out voltage threshold	>= 0.15 Uc AC >= 0.1 Uc DC
Input current	15 A
Minimum switching current	10 mA 17 V
Rated operational current	15 A at 120...277 V AC conforming to UL 15 A at 28 V DC conforming to UL 15 A at 120/150 V AC conforming to CSA 10 A at 151/277 V AC conforming to CSA 15 A at 28 V DC conforming to CSA 15 A at 250 V AC (NO) conforming to IEC 15 A at 28 V DC (NO) conforming to IEC 7.55 A at 250 V AC (NC) conforming to IEC 7.55 A at 28 V DC (NC) conforming to IEC
Motor power	0.5 hp 120 V AC 50/60 Hz 1 hp 277 V AC 50/60 Hz
Power consumption in	2.5 VA AC
Mounting	Socket
Connections terminals	Faston terminals

784XDXC-12D additional specifications
Parameter	Value
Shock resistance	15 gn in operation
Vibration resistance	+/- 1 mm 10...35 Hz) 3 gn 35...150 Hz)
Depth	1.07 in (27.3 mm)
Width	1.6 in (40.6 mm)
Height	1.4 in (34.9 mm)
Product weight	2.5 oz (71 g)
Contacts material	Silver alloy, gold flashed
Electrical durability	100000 cycles resistive
Mechanical durability	10000000 cycles
Category	US10CP221127
Product range	Legacy
Operating time	20 ms operating 20 ms tripping
Coil resistance	76 Ohm
Switch function	4PDT
Local signalling	Flag
Contact composition	4 NO + 4 NC
Dielectric strength	2000 V AC between coil and contact 2000 V AC between poles 1500 V AC between contacts
Ambient air temperature for storage	-40...185 °F (-40...85 °C)
Ambient air temperature for operation	-40...131 °F (-40...55 °C)
