Schneider Electric 784XDXC120A
MPN784XDXC120A

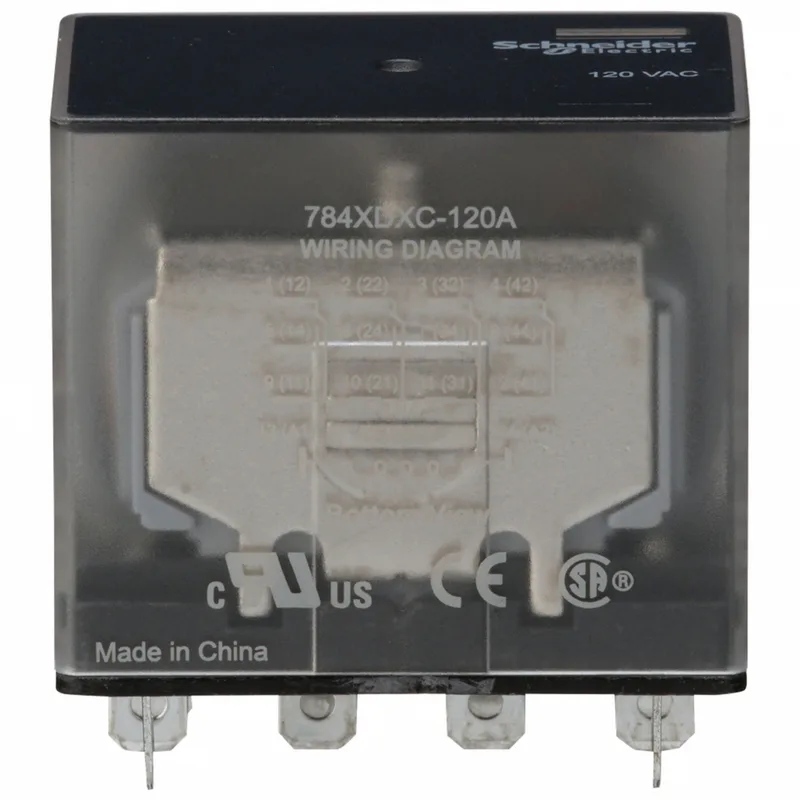

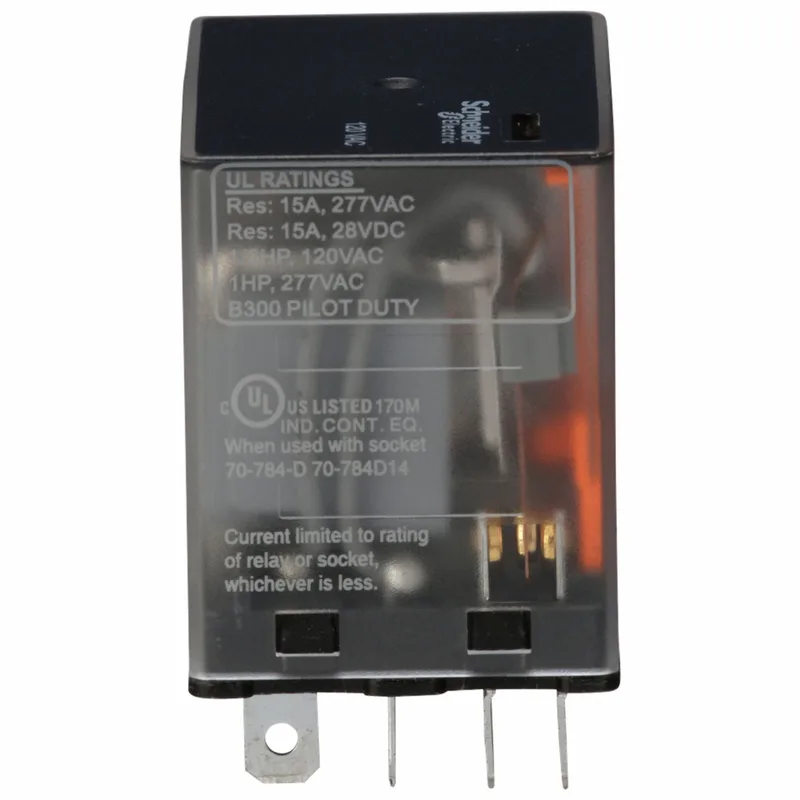

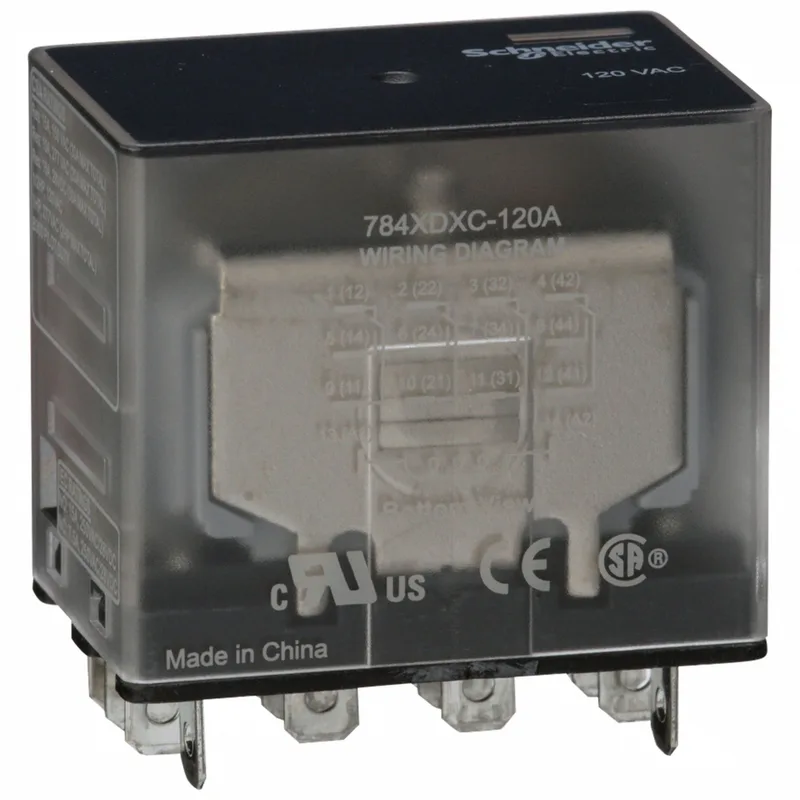

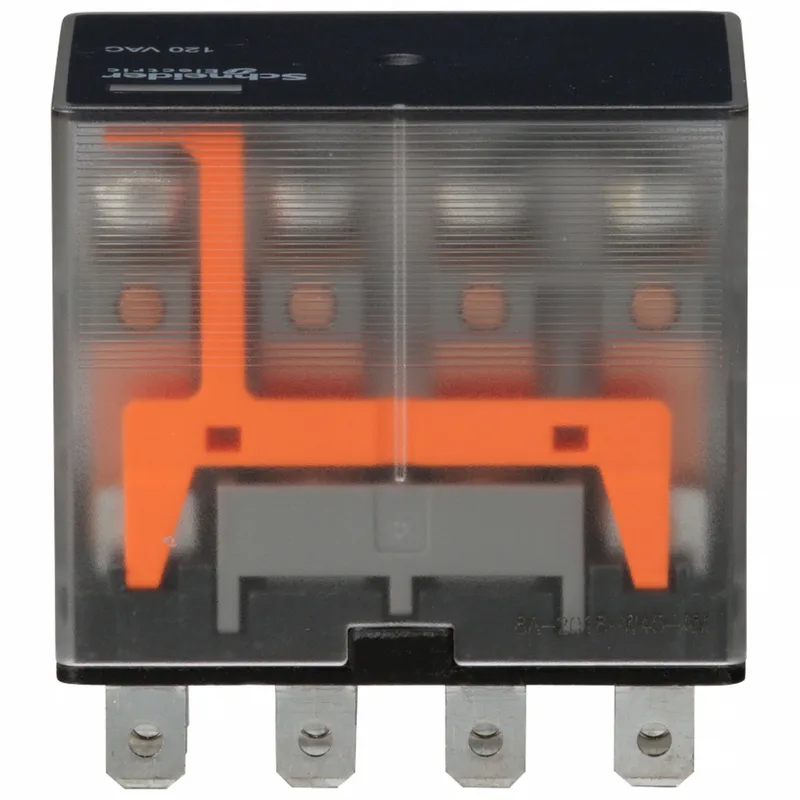

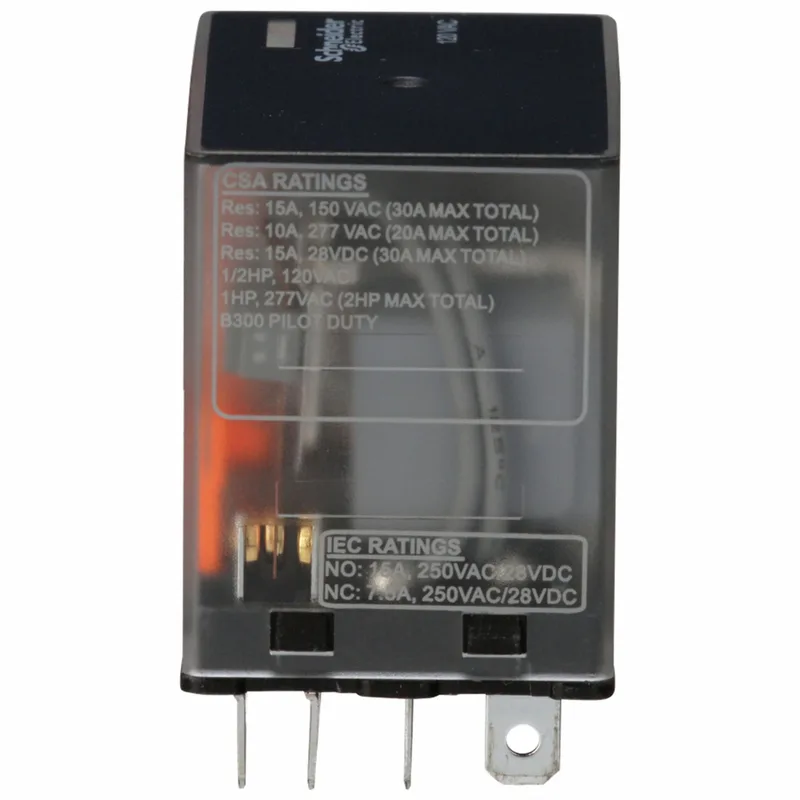

Square D 784XDXC120A 15A Plug-In Relay|Square D 784XDXC120A 15A Plug-In Relay
$23.27 – $32.49Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 784 Series |
| Height | 35.56 |
| Dielectric | 1,500 V AC Between Contacts; 2,000 V AC Between Coil and Contact; 2,000 V AC Between Poles |
| Motor_rated | yes |
| Socket_code | no |
| Contact form | 4PDT |
| Horsepower | 1/2 hp |
| Mounting | Socket |
| Terminal_type | Tab |
| Coil voltage | 120 |
| Terminal_count | 14 |
| Contact rating | 7.55 |
| Has_push_to_test | No Test Button |
| Switching current | 15 |
| Has_status_indicator | Mechanical Flag |
| Electrical_life_cycles | 100 |
| Mechanical_life_cycles | 10 |
MPN
784XDXC120A
