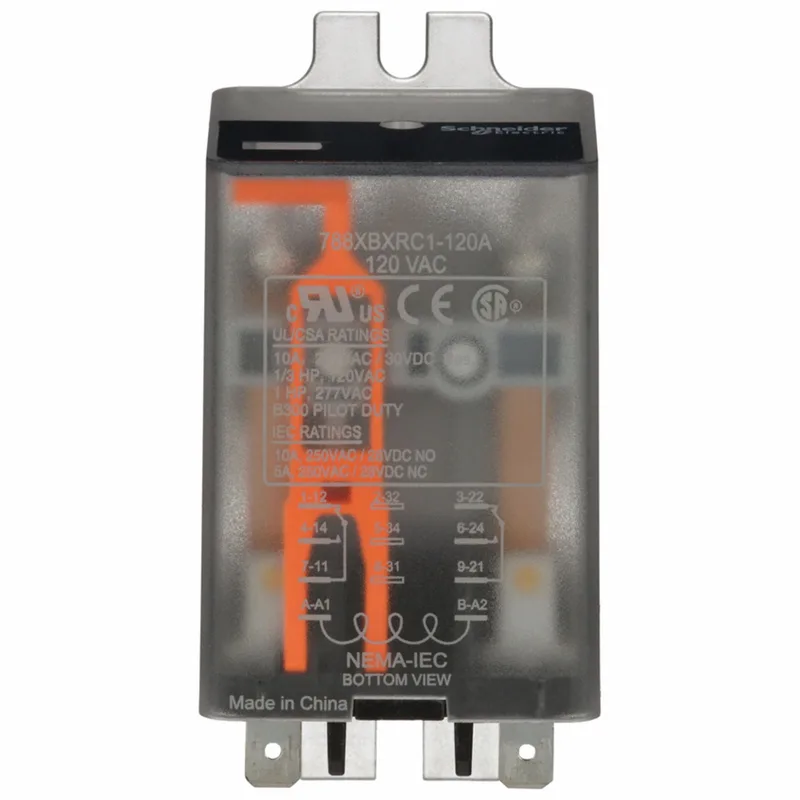

Schneider Electric 788XBXRC1-120A

MPN788XBXRC1-120A

Obsolete

General purpose relay, SE Relays, 788R, DPDT, 10A, 120 VAC, Quick terminal, flange cover

$27.09Ref. price · indicative, final on quote

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

788XBXRC1-120A key specifications
Parameter	Value
Product type	Plug-in electromechanical relay
Maximum switching voltage	300 V UL 300 V CSA 250 V IEC
Drop-out voltage threshold	>= 0.15 Uc AC >= 0.1 Uc DC
Control circuit voltage limits	0.85...1.1 Un AC
[Ue] rated operational voltage	120 V AC
Rated line current	10 A
Minimum switching current	10 mA 17 V DC
Rated operational current	10 A at 277 V AC (on resistive load) conforming to UL 10 A at 30 V DC (on resistive load) conforming to UL 10 A at 250 V AC-1 (1 NO) (on resistive load) conforming to IEC 10 A at 28 V DC-1 (1 NO) (on resistive load) conforming to IEC 5 A at 250 V AC-1 (1 NC) (on resistive load) conforming to IEC 5 A at 28 V DC-1 (1 NC) (on resistive load) conforming to IEC
Rated power in	0.33 HP 120 V AC 1 HP 277 V AC
IP degree of protection	IP40
Mounting support	plug-in Side flange
Connections terminals	blade terminal

788XBXRC1-120A additional specifications
Parameter	Value
Shock resistance	10 gn
Vibration resistance	+/- 1 mm 10...35 Hz in operation 3 gn 35...150 Hz in operation
Depth	1.4 in (35.5 mm)
Width	1.4 in (35 mm)
Height	2.8 in (70.3 mm)
Product weight	2.9 oz (83 g)
Contacts material	Silver alloy, gold flashed
Electrical durability	100000 cycles
Mechanical durability	5000000 cycles
Category	US10CP221127
Resistance	1700 Ohm
Operating time	20 ms
Switch function	DPDT
Local signalling	Flag
Average consumption	3 VA
Contact composition	2 NC + 2 NO
Dielectric strength	2500 V AC between coil and contact 2000 V AC between poles 1500 V AC between contacts
Ambient air temperature for storage	-40...185 °F (-40...85 °C)
Ambient air temperature for operation	-40...131 °F (-40...55 °C)
