Schneider Electric 788XBXRC1120A
MPN788XBXRC1120A

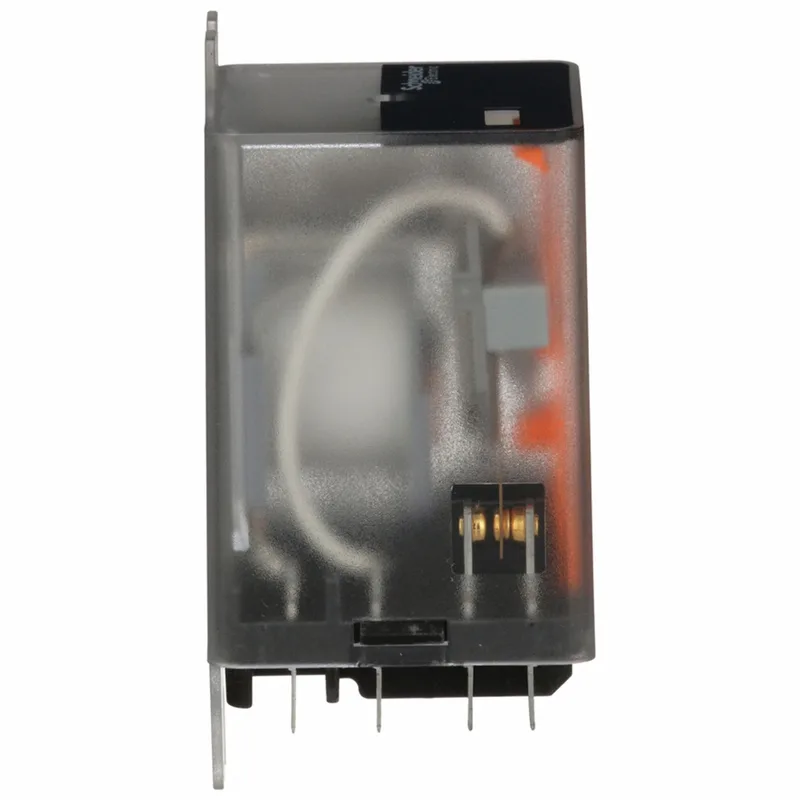

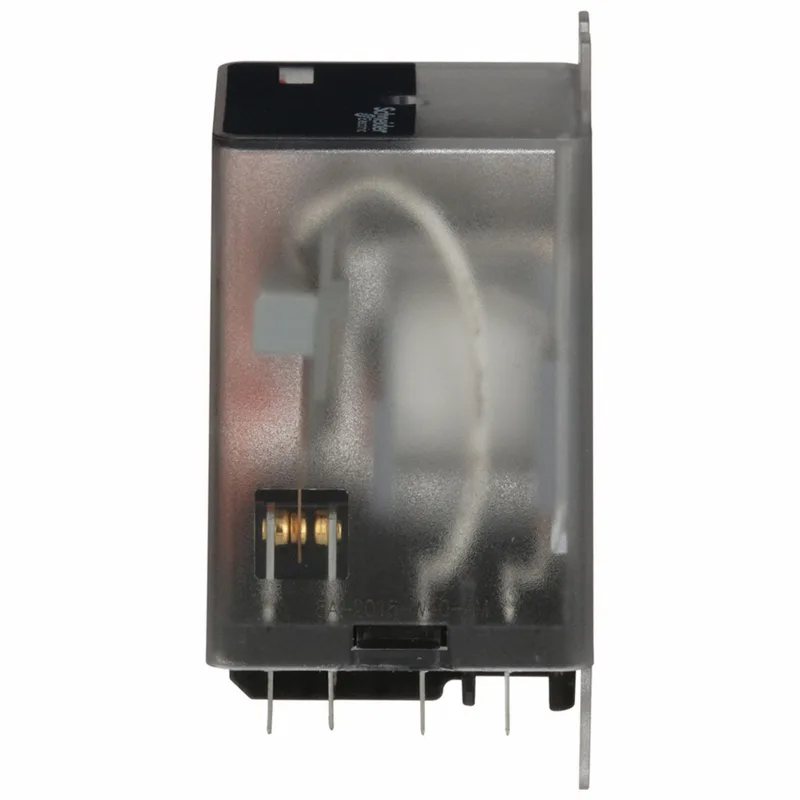

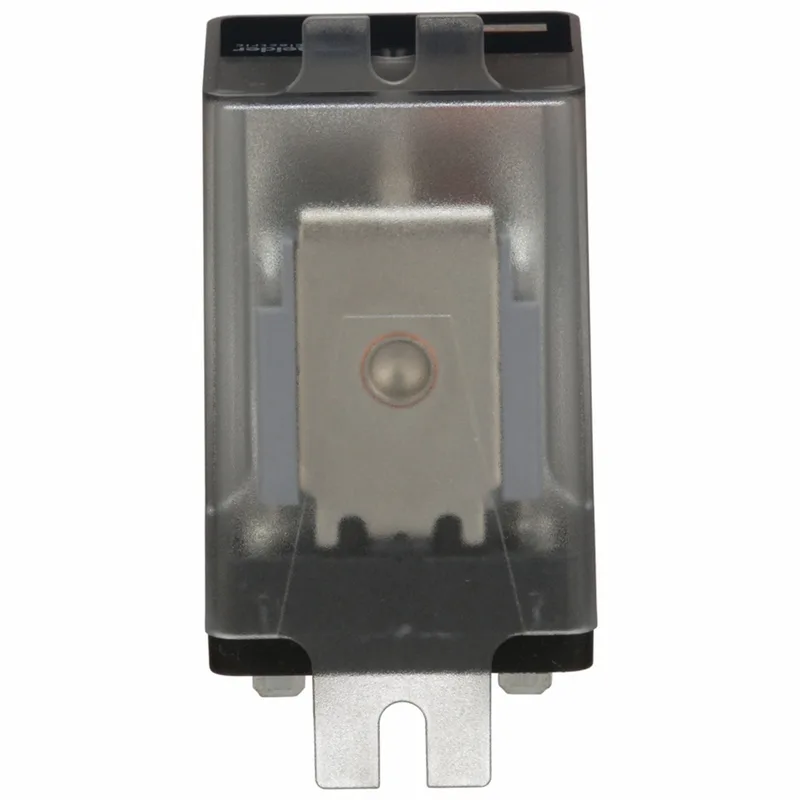

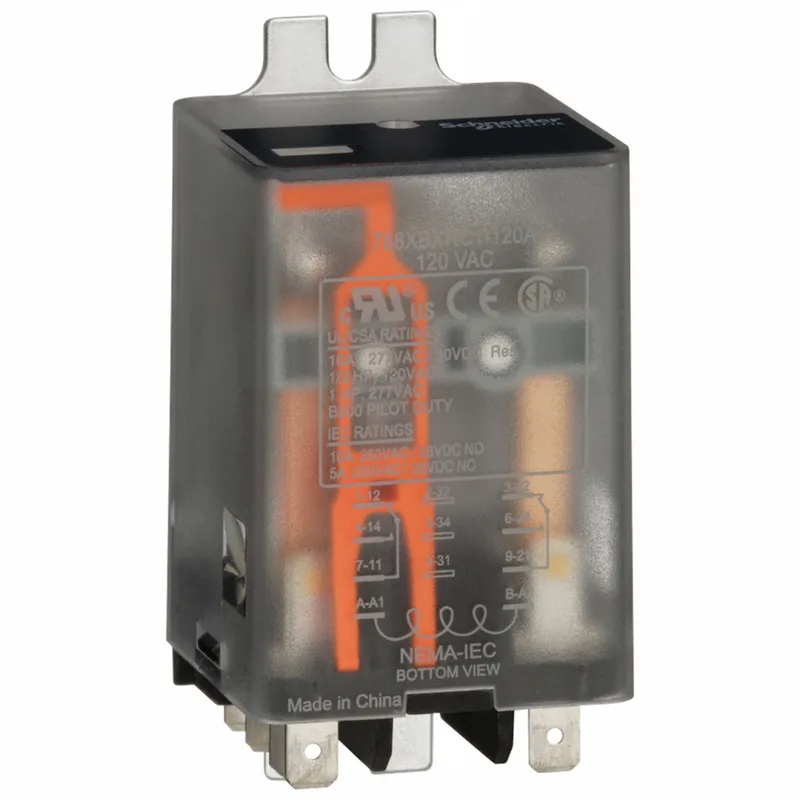

Square D 788XBXRC1120A 787 QC Relay Flange Mount Dpdt 10A 120VAC|Square D 788XBXRC1120A 787 QC Relay, Flange Mount, Dpdt, 10A,120VAC
$27.09Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 788R Series |
| Dielectric | 1,500 V AC Between Contacts; 2,000 V AC Between Poles; 2,500 V AC Between Coil and Contact |
| Motor_rated | yes |
| Contact form | DPDT |
| Sealing_type | Enclosed |
| Horsepower | 1/3 hp |
| Mounting | Surface (Side Flange) |
| Terminal_type | Tab |
| Coil voltage | 120 |
| Terminal_count | 8 |
| Contact rating | 5 |
| Has_push_to_test | No Test Button |
| Switching current | 10 |
| Has_status_indicator | Mechanical Flag |
| Electrical_life_cycles | 100 |
| Mechanical_life_cycles | 5 |
MPN
788XBXRC1120A
