Schneider ABE7P08T330 Modicon ABE7 sub-base, 8 ch, 1 A, discontinued

MPNABE7P08T330
Obsolete

Schneider ABE7P08T330 Solid State Overload Relays — now discontinued, supplied from remaining surplus and broker stock.

$514.12Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

ABE7P08T330 key specifications
ParameterValue
Sub-base typeOutput sub-base
Range of productModicon ABE7
Supply voltage typeDC
Product or component typeSub-base for plug-in relay
Supply voltage19...30 V IEC 61131-2
Voltage300 V coil circuit/contact circuits IEC 60947-1 2000 V terminals/mounting rails
Voltage drop on power supply fuse0.3 V
[Uimp] rated impulse withstand voltage2.5 kV
Maximum supply current1 A
Short-circuit protection1 A internal fuse, 5 x 20 mm, fast blow PLC end)
Maximum current per output common16 A
IP degree of protectionIP2X conforming to IEC 60529

All specifications

ABE7P08T330 additional specifications
ParameterValue
Installation categoryII IEC 60664-1
Connections - terminalsScrew type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
Resistance to incandescent wire1382 °F (750 °C) 30 s IEC 60695-2-11
Pollution degree2 IEC 60664-1
Shock resistance15 gn 11 ms IEC 60068-2-27
Vibration resistance2 gn (f= 10...150 Hz) conforming to IEC 60068-2-6
Category22375-INTERFACE MODULE(ABA,R,S)
Status LED1 LED per channel (Green) channel status 1 LED (Green) power ON
Fixing modeBy clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit)
Tightening torque5.3 lbf.in (0.6 N.m) flat Ø 3.5 mm
Channels8
Polarity distributionVolt-free
Resistance to fast transients2 kV level 3 IEC 61000-4-4
Resistance to radiated fields9.1 V/m (10 V/m) 26000000...1000000000 Hz)IEC 61000-4-3 level 3
Ambient air temperature for storage-40...176 °F (-40...80 °C) IEC 61131-2
Ambient air temperature for operation23...140 °F (-5...60 °C) IEC 61131-2
Resistance to electrostatic discharge4 kV contact) level 3 IEC 61000-4-2 8 kV air) level 3 IEC 61000-4-2

Product details

Overview

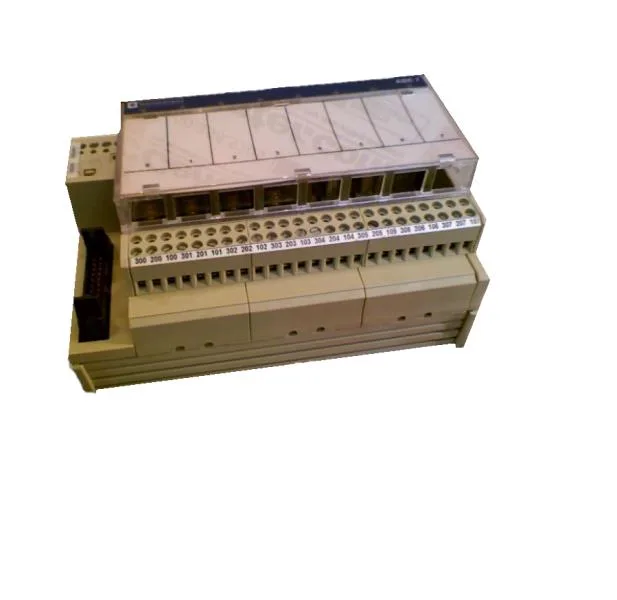

The ABE7P08T330 is an 8-channel output sub-base for plug-in relay in the Schneider Modicon ABE7 range, rated 1 A per channel with volt-free polarity distribution and IP2X enclosure protection. It accepts screw terminals for 0.14 to 2.5 mm² solid or stranded wire, mounts on 35 mm DIN rail or solid plate, and carries CSA, GL, DNV, and UL certifications.

The 8-channel ABE7P08T330 lacks the per-channel switch disconnector found on the 16-channel ABE7P16T214, and its 1 A per-channel rating matches the ABE7P16T214's 1 A per channel, but the ABE7P16T214 carries a 16 A total rated current and a 24 V DC supply rating not listed for this seed.
