Compared to the ABE7R16S111, which offers 16 relay outputs with 8 channels per common and 1 terminal per channel, the ABE7S08S2B0 provides 8 solid-state outputs with 2 terminals per channel — a lower channel count but per-channel wiring flexibility for smaller I/O slices.

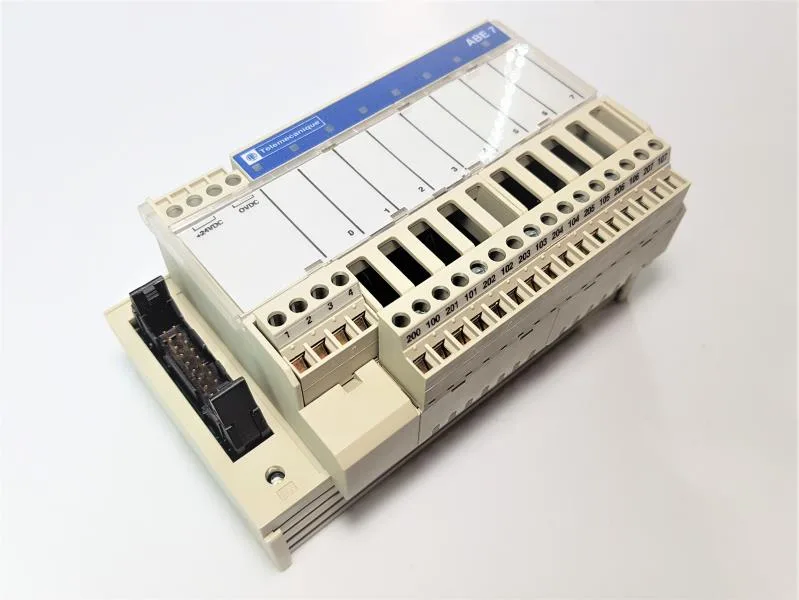

Schneider ABE7S08S2B0 Advantys Telefast solid-state output relay sub-base, 8 out
MPNABE7S08S2B0
Obsolete
Schneider ABE7S08S2B0 Plc Expansion Modules — now discontinued, supplied from remaining surplus and broker stock.
$233.68Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Fault type | Overload Short-circuit |
| Type | Soldered solid state relay |
| Range of product | Advantys Telefast ABE7 |
| Terminal block type | Removable |
| Product or component type | Solid state output relay sub-base |
| Drop-out voltage | 0.6 V (preactuator end) |
| Supply voltage | 24 V DC for PLC end 24 V DC for preactuator end |
| Voltage state 0 guaranteed | 3.4 V for PLC end |
| Voltage state 1 guaranteed | 16.9 V for PLC end |
| Current per channel | 0.5 A for preactuator end |
| Maximum residual current | 0.3 mA preactuator end |
| Maximum switching current | 500 mA DC-12 500 mA DC-13 |
All specifications
| Parameter | Value |
|---|---|
| Minimum switching current | 1 mA |
| Current state 0 guaranteed | 0.4 mA (PLC end) |
| Current state 1 guaranteed | 3.1 mA (PLC end) |
| Maximum current per output common | 8 A |
| Switching frequency | < 0.6/LI² Hz |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Installation category | II conforming to IEC 60664-1 |
| Number of terminal per channel | 2 |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Response time | <= 0.1 ms from state 0 to 1 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Width | 125 mm |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Fault indication | Yes |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Channels | 8 |
| Protective treatment | TC |
| Maximum tungsten load | <10 W DC-6 |
| Isolation PLC (operative part) | No |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Resistance to radiated fields | 10 V/m (26000000...1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Switchable inductive energy l (R) | <= 400(U.I) ms |
| Maximum circuit breaker threshold | 0.75 A |
| Ambient air temperature for storage | -40...80 °C conforming to IEC 61131-2 |
| Ambient air temperature for operation | -5...60 °C conforming to IEC 61131-2 |
Product details
MPN
ABE7S08S2B0
