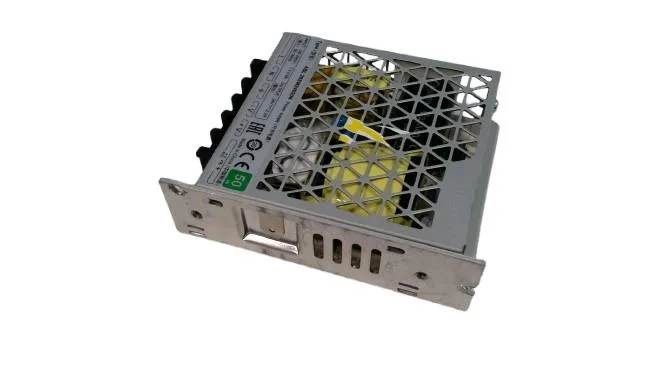

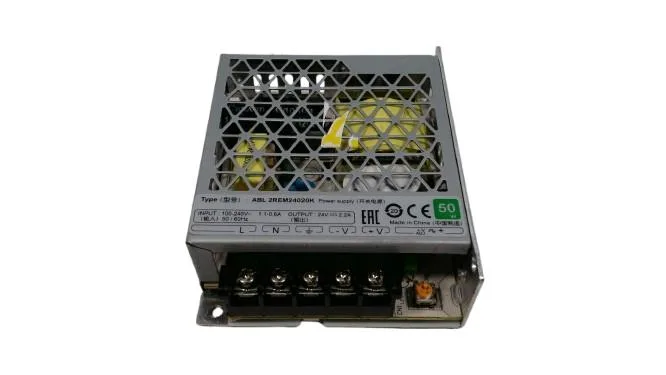

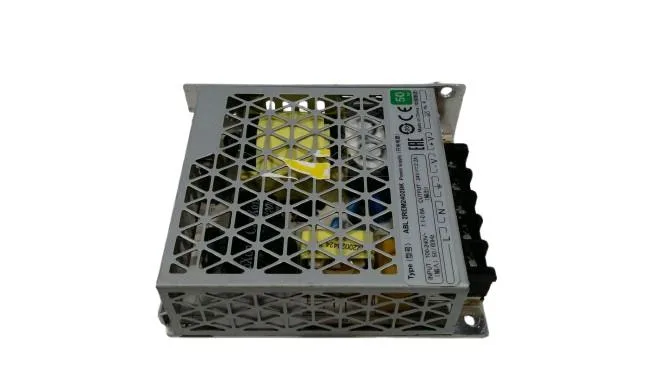

Schneider Electric ABL2REM24020K
MPNABL2REM24020K
Active
Single Phase Power Supply
$17.78 – $23.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Easy Modicon ABL2 |
| Power supply type | Regulated switch mode |
| Input protection type | Integrated fuse (not interchangeable) |
| Output protection type | Against overload, protection technology: 1.1...1.5 x In Against short-circuits, protection technology: 1.1...1.5 x In Against overvoltage, protection technology: 28.8...33.6 V |
| Product or component type | Power supply |
| Output voltage | 24 V DC |
| Main input voltage | 100...240 V AC single phase |
| Input voltage limits | 85...264 V |
| Output voltage limits | 20.4...27.6 V |
| Inrush current | 45 A at 100...240 V AC |
| Current consumption | 0.6 A at 240 V |
| Power supply output current | 2.2 A |
All specifications
| Parameter | Value |
|---|---|
| Rated power in | 53 W |
| Power dissipation in | 7.9 W |
| Network frequency | 47...63 Hz |
| IP degree of protection | IP20 conforming to IEC 62368-1 |
| Mounting support | DIN rail with accessory Panel mounting with accessory |
| Connections - terminals | For ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12 |
| Pollution degree | 2 |
| Relative humidity | 10...95 % |
| Operating altitude | 5000 m |
| Vibration resistance | 4 gn (f= 10...500 Hz) conforming to IEC 61131-2 |
| Depth | 1.2 in (30 mm) |
| Width | 3.9 in (99 mm) |
| Height | 3.2 in (82 mm) |
| Meantime between failure [MTBF] | 600000 h at 77 °F (25 °C) |
| Cos phi | 0.45 |
| Marking | CE |
| Category | US1CP4B22153 |
| Efficiency | 87 % |
| Status LED | 1 LED (Green) output voltage |
| Holding time | >= 12 ms at 115 V |
| Name of test | Electromagnetic hypersensitivity (EHS) conforming to IEC 61000-6-2 level A |
| Output coupling | Series |
| Operating position | Any position |
| Dielectric strength | 2000 V between input and ground |
| Overvoltage category | Class I conforming to IEC 62368-1 |
| Line and load regulation | +/- 1 % |
| Electromagnetic compatibility | Immunity to electromagnetic interference conforming to EN 55022 Class B |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -22...158 °F (-30...70 °C) (with power derating of 2.5 % per °C) |
