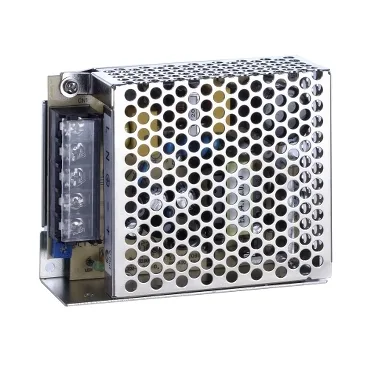

Schneider Electric ABL2REM24015H
MPNABL2REM24015H
Obsolete
Switching mode power supply in 100-240 VAC, out 24VDC, 35 W
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Easy Modicon ABL2 |
| Power supply type | Regulated switch mode |
| Input protection type | Integrated fuse (not interchangeable) |
| Output protection type | Against overload, protection technology: 1.1...1.5 x In Against short-circuits, protection technology: 1.1...1.5 x In Against overvoltage, protection technology: 1.1...1.5 x In |
| Product or component type | Power supply |
| Output voltage | 24 V DC |
| Main input voltage | 100...240 V AC single phase |
| Input voltage limits | 85...264 V |
| Output voltage limits | 21.6...26.4 V |
| Inrush current | 45 A at 100...240 V AC |
| Current consumption | 0.4 A at 240 V |
| Power supply output current | 1.5 A |
All specifications+28 ▾
| Parameter | Value |
|---|---|
| Rated power in | 35 W |
| Power dissipation in | 4.7 W |
| Network frequency | 47...63 Hz |
| IP degree of protection | IP20 conforming to EN/IEC 60950 |
| Mounting support | DIN rail with accessory Panel mounting with accessory |
| Connections - terminals | For ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12 |
| Pollution degree | 2 |
| Relative humidity | 20...90 % |
| Operating altitude | 2000 m |
| Vibration resistance | 2 gn (f= 10...500 Hz) conforming to EN/IEC 61131-2 |
| Depth | 36 mm |
| Width | 81 mm |
| Height | 105 mm |
| Meantime between failure [MTBF] | 350000 h at 25 °C |
| Cos phi | 0.45 |
| Marking | CE |
| Efficiency | 83 % |
| Status LED | 1 LED (green) output voltage |
| Holding time | >= 12 ms at 115 V |
| Name of test | Conducted interference conforming to EN 61000-6-4 level A |
| Output coupling | Series |
| Operating position | Any position |
| Dielectric strength | 2000 V between input and ground |
| Overvoltage category | Class I conforming to VDE 0106-1 |
| Line and load regulation | +/- 1 % |
| Environmental characteristic | EMC conforming to EN 55022 class B |
| Ambient air temperature for storage | -20...85 °C |
| Ambient air temperature for operation | -20...70 °C (with rated power derating 5 W per °C) |
