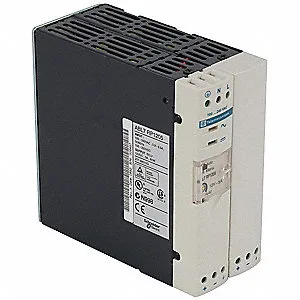

Schneider Electric ABL7RP1205
MPNABL7RP1205
Obsolete
Power Supply, Phaseo, 1PH, 240VAC, 250VDC, Input, 12VDC Output, 60W|Power Supply, Phaseo, Filtered, Book Style, 1-phase, 240 Volt AC, 250 Volt DC, Input, 12 Volt DC Output, 60 Watt
$211.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon Power Supply |
| Power supply type | Regulated switch mode |
| Input protection type | Integrated fuse (not interchangeable) |
| Output protection type | Against overload, protection technology: 1.1 x In Against overvoltage, protection technology: tripping if U > 1.5 x Un Against short-circuits, protection technology: manual or automatic reset Against undervoltage, protection technology: tripping if U < 0.8 x Un |
| Product or component type | Power supply |
| Output voltage | 12 V DC |
| Nominal input voltage | 100...240 V AC phase to phase L1-L2 100...240 V AC single phase N-L1 110...220 V DC |
| Output voltage adjustment | 100...120 % adjustable |
| Inrush current | 30 A |
| Current consumption | 0.4 A 240 V AC 0.8 A 100 V AC |
| Power supply output current | 5 A |
| Power factor | 0.98 at 12 V DC |
All specifications
| Parameter | Value |
|---|---|
| Rated power in | 60 W |
| Power dissipation in | 10.6 W |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting support | 75 x 7.5 mm symmetrical DIN rail 35 x 15 mm symmetrical DIN rail 35 x 7.5 mm symmetrical DIN rail |
| Connections - terminals | Screw type terminals 2 x 0.14...2 x 2.5 mm², AWG 26...AWG 14) input connection Screw type terminals 1 x 0.14...1 x 2.5 mm², AWG 26...AWG 14) input ground connection Screw type terminals 2 x 0.14...2 x 2.5 mm², AWG 26...AWG 14) output connection Screw type terminals 1 x 0.14...1 x 2.5 mm², AWG 26...AWG 14) output ground connection |
| Operating altitude | 6561.68 ft (2000 m) |
| Depth | 4.7 in (120 mm) |
| Width | 2.1 in (54 mm) |
| Height | 4.7 in (120 mm) |
| Standards | CSA C22.2 No 60950-1 UL 508 EN/IEC 62368-1 |
| Supply | SELV IEC 60950-1 SELV IEC 60204-1 SELV IEC 60364-4-41 |
| Marking | CE |
| Category | US1CP1222525 |
| Efficiency | 85 % |
| Status LED | 1 LED (Green) output voltage 1 LED (Orange) input voltage |
| Output coupling | Parallel Series |
| Operating position | Vertical |
| Dielectric strength | 3000 V with between input and ground 3000 V with between input and output 500 V with between output and ground 500 V with between outputs |
| Efficiency at full load | 100...250 V AC 85...264 V AC |
| Environmental characteristic | EMC conforming to EN 50081-1 EMC conforming to EN 50082-2 EMC conforming to IEC 61000-6-2 Safety conforming to EN/IEC 60950 Safety conforming to IEC 61496-1-2 |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) without derating mounting position A < 6561.68 ft (2000 m) 122...140 °F (50...60 °C) with derating factor mounting position A < 6561.68 ft (2000 m) |
MPN
ABL7RP1205
