Schneider Electric AL1200P24K
MPNAL1200P24K
Active

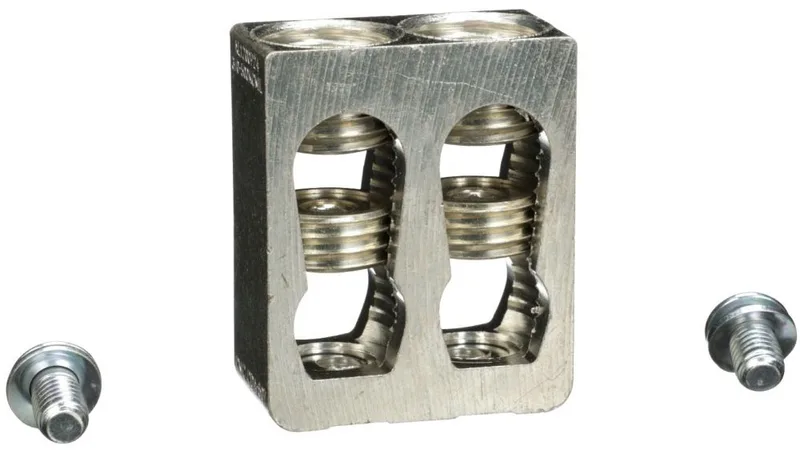

CIRCUIT BREAKER MECHANICAL LUG KIT (1)|Square D,CIRCUIT BREAKER MECHANICAL LUG KIT (1),1200A,Circuit Breaker Lug Kit,Lugs (both ends) #8 to #1/0 AWG(Al) #14 to #1/0 AWG(Cu),M and P
$98.79 – $263.53Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | PowerPact M PowerPact P |
| Product or component type | Mechanical lug |
| Line rated current | 800...1200 A |
| Mounting mode | Unit mount I-Line |
| Location of connection | Downstream |
| Material | Aluminium |
| Category | US10DE201250 |
| AWG gauge | AWG 3/0...500 kcmil aluminium |
| Kcmil size | 500 kcmil |
| Quantity per set | Set of 1 |
| Tightening torque | 442.5 lbf.in (50 N.m) 0.1...0.4 in² (95...240 mm²) (AWG 3/0...500 kcmil) |
| Accessory (separate part category) | Connection accessory |
MPN
AL1200P24K
