Schneider Electric AL1200P7KU
MPNAL1200P7KU
Active

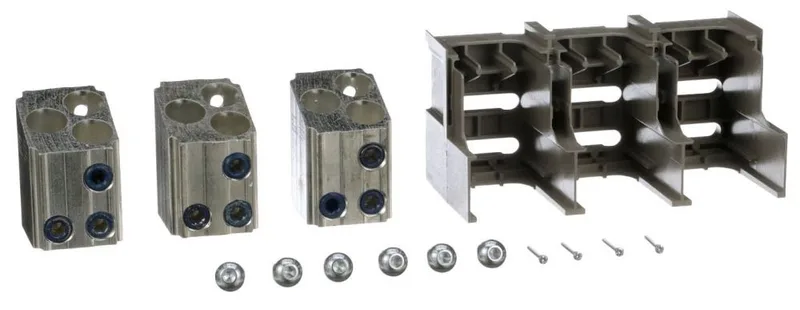

Breaker, Mechanical Lug Kit, 3P, 1155A, 3 x 3/0 - 750MCM, AL|Breaker, Mechanical Lug Kit, 3-Pole, 1155 Amp, 3 x 3/0 - 750 MCM, Aluminum
$1,085.00 – $1,233.42Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Material | Aluminium |
| AWG gauge | AWG 3/0...600 kcmil aluminium/copper AWG 3/0...750 kcmil aluminium |
| Kcmil size | 750 kcmil |
| Fixing mode | By screws |
| Mounting mode | Unit mount |
| Quantity per set | Set of 3 |
| Range of product | PowerPact P |
| Tightening torque | 442.5 lbf.in (50 N.m) 0.1...0.6 in² (95...380 mm²) (AWG 3/0...750 kcmil) |
| Line rated current | 1200 A |
| Circuit breaker type | PGL PJL PLL |
| Location of connection | Downstream Upstream |
| Product or component type | Mechanical lug |
| Accessory (separate part category) | Connection accessory |
MPN
AL1200P7KU
