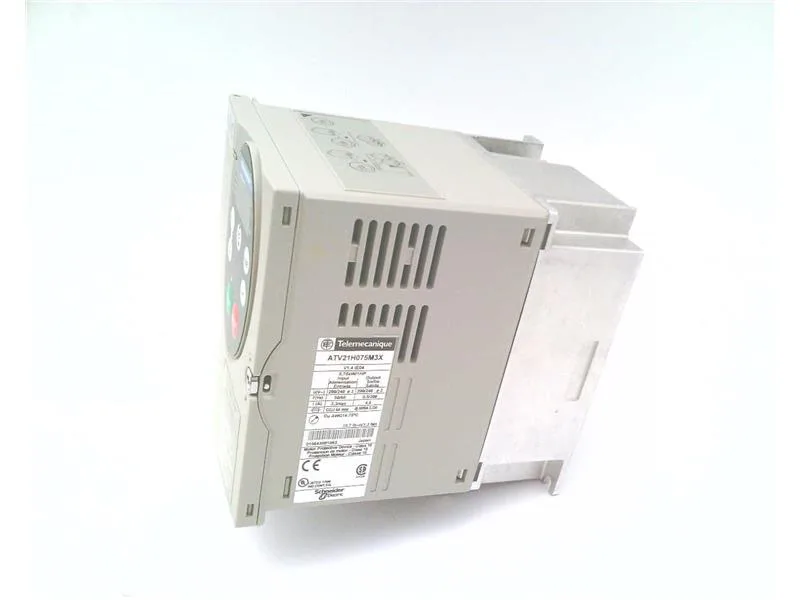

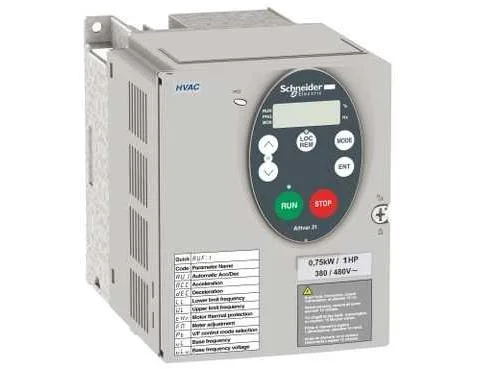

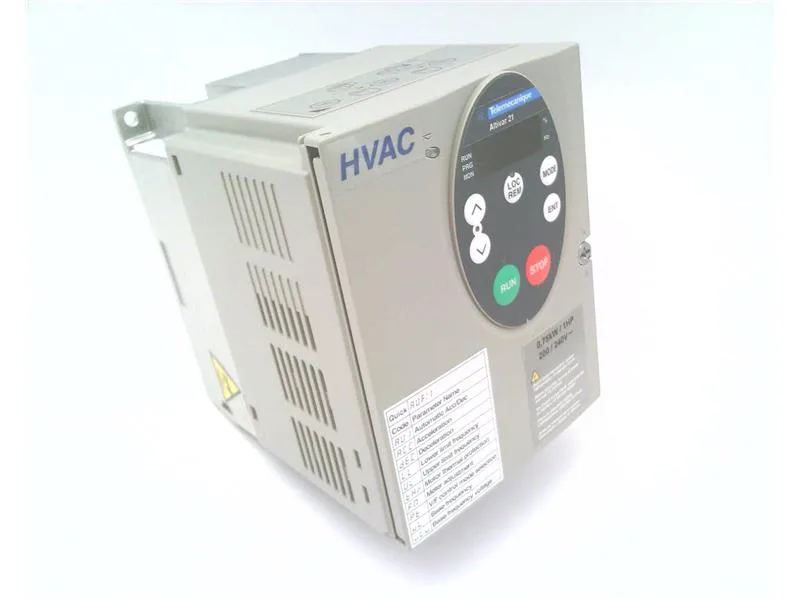

Schneider Electric ATV21H075M3X
MPNATV21H075M3X
Obsolete
ATV21H075M3X - DRIVE by SQUARE D
$787.40Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Connector type | 1 RJ45 |
| Range of product | Altivar 21 |
| Type of polarization | No impedance |
| Product or component type | Variable speed drive |
| Output voltage | = 1 mOhm 500 V DC for 1 minute |
| Power supply voltage | 200...240 V - 15...10 % |
| Power supply voltage limits | 170...264 V |
| Line current | 2.7 A 240 V 3.3 A 200 V |
| Maximum transient current | 5.1 A 60 s |
| Maximum continuous output current | 4.6 A 230 V |
| Apparent power | 1.8 kVA 240 V |
| Motor power | 0.75 kW |
All specifications
| Parameter | Value |
|---|---|
| Power supply frequency | 50...60 Hz - 5...5 % |
| Maximum horse power rating | 1 hp |
| Power supply frequency limits | 47.5...63 Hz |
| Switching frequency | 12...16 kHz with derating factor 6...16 kHz adjustable |
| Frequency resolution | Analog input 0.024/50 Hz Display unit 0.1 Hz |
| Nominal switching frequency | 12 kHz |
| Speed drive output frequency | 0.5...200 Hz |
| Phases | 3 phase |
| IP degree of protection | IP20 on upper part without blanking plate on cover EN/IEC 60529 IP20 on upper part without blanking plate on cover EN/IEC 61800-5-1 IP21 EN/IEC 60529 IP21 EN/IEC 61800-5-1 IP41 on upper part EN/IEC 60529 IP41 on upper part EN/IEC 61800-5-1 |
| Physical interface | 2-wire RS 485 |
| Communication service | Read holding registers (03) 2 words maximum Read device identification (43) Time out setting from 0.1 to 100 s Monitoring inhibitable Write multiple registers (16) 2 words maximum Write single register (06) |
| Communication port protocol | Modbus |
| EMC filter | Without EMC filter |
| Pollution degree | 2 IEC 61800-5-1 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Relative humidity | 5...95 % without condensation IEC 60068-2-3 5...95 % without dripping water IEC 60068-2-3 |
| Vibration resistance | 1 gn (f= 13...200 Hz) conforming to EN/IEC 60068-2-8 1.5 mm (f= 3...13 Hz) conforming to EN/IEC 60068-2-6 |
| Depth | 5.9 in (150 mm) |
| Width | 4.2 in (107 mm) |
| Height | 5.6 in (143 mm) |
| Standards | IEC 61800-3 environments 2 category C1 EN 61800-3 environments 2 category C1 IEC 61800-3 environments 2 category C2 EN 61800-3 environments 1 category C3 UL Type 1 IEC 61800-3 environments 2 category C3 IEC 61800-3 environments 1 category C2 IEC 61800-3 environments 1 category C3 EN 61800-3 EN 61800-3 environments 1 category C1 EN 61800-3 environments 2 category C3 EN 61800-5-1 EN 61800-3 environments 2 category C2 EN 61800-3 environments 1 category C2 IEC 61800-3 environments 1 category C1 IEC 61800-3 IEC 61800-5-1 |
| Marking | CE |
| Category | 22155-ATV212 1 - 25 HP 230 VOLT |
| Diagnostic | 1 LED (red) for DC bus energized |
| Data format | 8 bits, 1 stop, odd even or no configurable parity |
| Noise level | 51 dB 86/188/EEC |
| Option card | Communication card APOGEE FLN Communication card BACnet Communication card LonWorks Communication card METASYS N2 |
| Speed range | 1...10 |
| Assembly style | With heat sink |
| Component name | ATV21 |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
| Regulation loop | Adjustable PI regulator |
| Torque accuracy | +/- 15 % |
| Transmission rate | 9600 bps or 19200 bps |
| Operating position | Vertical +/- 10 degree |
| Transmission frame | RTU |
| Dielectric strength | 2830 V DC between earth and power terminals 4230 V DC between control and power terminals |
| Number of addresses | 1...247 |
| Product destination | Asynchronous motors |
| Transient overtorque | 120 % of nominal motor torque +/- 10 % 60 s |
| Motor slip compensation | Not available in voltage/frequency ratio motor control Automatic whatever the load Adjustable |
| Environmental characteristic | Classes 3C1 conforming to IEC 60721-3-3 Classes 3S2 conforming to IEC 60721-3-3 |
| Product specific application | Pumps and fans in HVAC |
| Maximum prospective line isc | 5 kA |
| Electromagnetic compatibility | 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| Asynchronous motor control profile | Quadratic voltage/frequency ratio Constant voltage/frequency ratio Constant voltage/frequency ratio with automatic IR compensation Energy saving ratio Current flux vector control (FVC) without speed feedback |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 14...104 °F (-10...40 °C) (without derating) 104...122 °F (40...50 °C) (with derating factor) |
MPN
ATV21H075M3X
