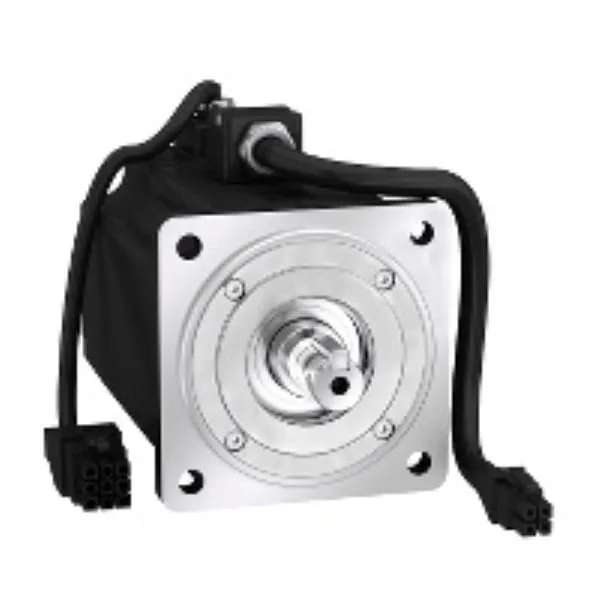

Schneider Electric BCH2LF0733CA5C

Schneider Electric BCH2LF0733CA5C

MPNBCH2LF0733CA5C
Active

Square D BCH2LF0733CA5C 80Mm 750W Ip65 W/ Key Leads|Square D BCH2LF0733CA5C 80Mm, 750W, Ip65, W/ Key, Leads

$335.28 – $889.49Ref. price · indicative, final on quote
Schneider Electric BCH2LF0733CA5C datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

BCH2LF0733CA5C key specifications
ParameterValue
Feedback type20 bits single turn absolute encoder
Type of coolingNatural convection
Product or component typeServo motor
Supply voltage220 V 110 V
Maximum current irms13.23 A LXM28... 0.75 kW, 220 V 13.23 A LXM28... 0.75 kW, 110 V
Continuous stall current4.01 A
Maximum permanent current4.29 A
Continuous power750 W
Brake pull-in power10.2 W
Nominal output power750 W LXM26D 4.5 A, 220 V, single phase 750 W LXM26D 4.5 A, 220 V, three phase 750 W LXM28... 4.5 A, 220 V, single phase 750 W LXM28... 4.5 A, 220 V, three phase 750 W LXM28... 9 A, 110 V, single phase
Number of motor poles4.0
PhasesSingle phase Three phase

All specifications

BCH2LF0733CA5C additional specifications
ParameterValue
Network number of phases1
IP degree of protectionIP50 IM V3 IP65 IM B5, IM V1
Mounting supportAsian standard flange
Mounting holes diameter0.3 in (6.6 mm)
Number of mounting holes4
Circle diameter of the mounting holes3.5 in (90 mm)
Electrical connectionFree lead
Key width0.2 in (6 mm)
Centring collar depth0.2 in (4 mm)
Length5.4 in (138 mm)
Inertia0.0 kg.cm² of brake 1.53 kg.cm² of motor
CategoryUS1PC5318281
Shaft endKeyed
Shaft length1.4 in (35 mm)
Holding brakeWithout
Nominal speed3000 rpm LXM26D 4.5 A, 220 V, single phase 3000 rpm LXM26D 4.5 A, 220 V, three phase 3000 rpm LXM28... 4.5 A, 220 V, single phase 3000 rpm LXM28... 4.5 A, 220 V, three phase 3000 rpm LXM28... 9 A, 110 V, single phase
Rotor inertia1.19 kg.cm²
Nominal torque21.15 lbf.in (2.39 N.m) LXM26D 4.5 A, 220 V, single phase 21.15 lbf.in (2.39 N.m) LXM26D 4.5 A, 220 V, three phase 21.15 lbf.in (2.39 N.m) LXM28... 4.5 A, 220 V, single phase 21.15 lbf.in (2.39 N.m) LXM28... 4.5 A, 220 V, three phase 21.15 lbf.in (2.39 N.m) LXM28... 9 A, 110 V, single phase
Shaft diameter0.7 in (19 mm)
Torque constant0.6 N.m/A 68 °F (20 °C)
Sizing referenceBCH2
Back emf constant36 V/krpm 68 °F (20 °C)
Device short nameBCH2
Motor flange size3.1 in (80 mm)
Peak stall torque63.37 lbf.in (7.16 N.m) LXM26D 4.5 A, 220 V, single phase 63.37 lbf.in (7.16 N.m) LXM26D 4.5 A, 220 V, three phase 63.37 lbf.in (7.16 N.m) LXM28... 4.5 A, 220 V, single phase 63.37 lbf.in (7.16 N.m) LXM28... 4.5 A, 220 V, three phase 63.37 lbf.in (7.16 N.m) LXM28... 9 A, 110 V, single phase
Stator inductance6.1 mH 68 °F (20 °C)
Stator resistance1.5 Ohm 68 °F (20 °C)
Temperature magnet rt68 °F (20 °C)
Maximum axial force fa115 N
Number of motor stacks2
Temperature copper hot275 °F (135 °C)
Temperature magnet hot212 °F (100 °C)
Continuous stall torque21.15 lbf.in (2.39 N.m) LXM26D 4.5 A, 220 V, single phase 21.15 lbf.in (2.39 N.m) LXM26D 4.5 A, 220 V, three phase 21.15 lbf.in (2.39 N.m) LXM28 4.5 A, 220 V, single phase 21.15 lbf.in (2.39 N.m) LXM28 4.5 A, 220 V, three phase 21.15 lbf.in (2.39 N.m) LXM28 9 A, 110 V, single phase
Maximum radial force fr332 N 3000 rpm
Accuracy error [angular]0.044 °
Centring collar diameter2.8 in (70 mm)
Maximum mechanical speed5000 rpm
Distance shaft shoulder-flange0.2 in (4 mm)
Stator electrical time constant4.07 ms 68 °F (20 °C)
Ambient air temperature for operation-4...104 °F (-20...40 °C)
MPN
BCH2LF0733CA5C
