Schneider Electric CV1BG2G0ZF522 — Contactors

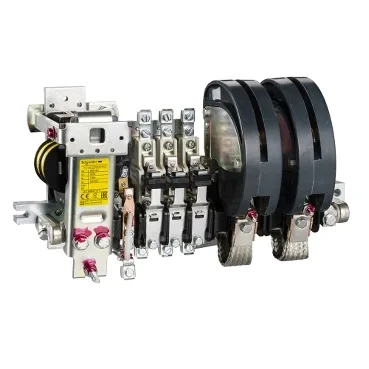

TeSys CV1BG2G0ZF522 Contactor, 2P, 200 A AC, 110 V AC Coil

MPNCV1BG2G0ZF522
Active

Schneider Electric TeSys B, CV1BG2G0ZF522, 2-pole contactor, 200 A AC, 690 V AC, 110 V AC 50 Hz coil.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CV1BG2G0ZF522 — Identification
ParameterValue
Product / component typeContactor
Series / rangeTeSys
ApplicationMotor Resistive circuits, heating, lighting
CV1BG2G0ZF522 — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)690 V AC
Utilisation categoryAC-1 AC-3
CV1BG2G0ZF522 — Contacts & Poles
ParameterValue
Pole configuration2P
CV1BG2G0ZF522 — Other specifications
ParameterValue
Device short nameCV1BG
Control circuit typeAC
Pole contact composition2 NO
Coil voltage110 V AC 50 Hz
Auxiliary contact composition2 NO + 2 NC
[Ie] rated operational current200 A AC for power circuit
Current rating code of contactorBG

Product details

The CV1BG2G0ZF522 is a TeSys B contactor from the Schneider TeSys range — a 2-pole, normally-open power contactor rated for 200 A AC at up to 690 V AC, with a 110 V AC 50 Hz coil.

The 200 A rated operational current in AC-3 duty means this contactor can handle a 200 A motor load — starting and stopping under full load without welding the contacts. The 690 V AC rated operational voltage gives you headroom for 400 V or 480 V systems without derating. The 110 V AC coil is standard for North American control circuits running off a control transformer. That saves panel space and one wiring step.

Frequently asked questions

What are the key ratings for this contactor?

200 A rated operational current in AC-3 duty, 690 V AC rated operational voltage, 110 V AC 50 Hz coil. It has 2 NO power poles and 2 NO + 2 NC auxiliary contacts built in.

What range and product family does this belong to?

It's part of the Schneider TeSys range, specifically the TeSys B product name.

MPN
CV1BG2G0ZF522
