Schneider Electric DPER03
MPNDPER03
Active

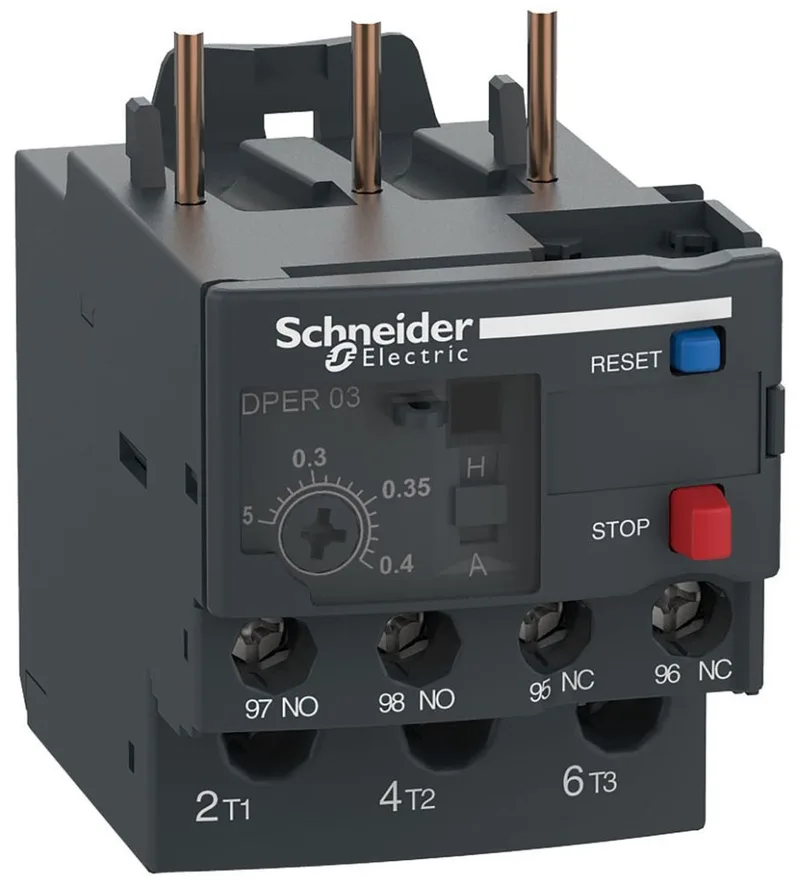

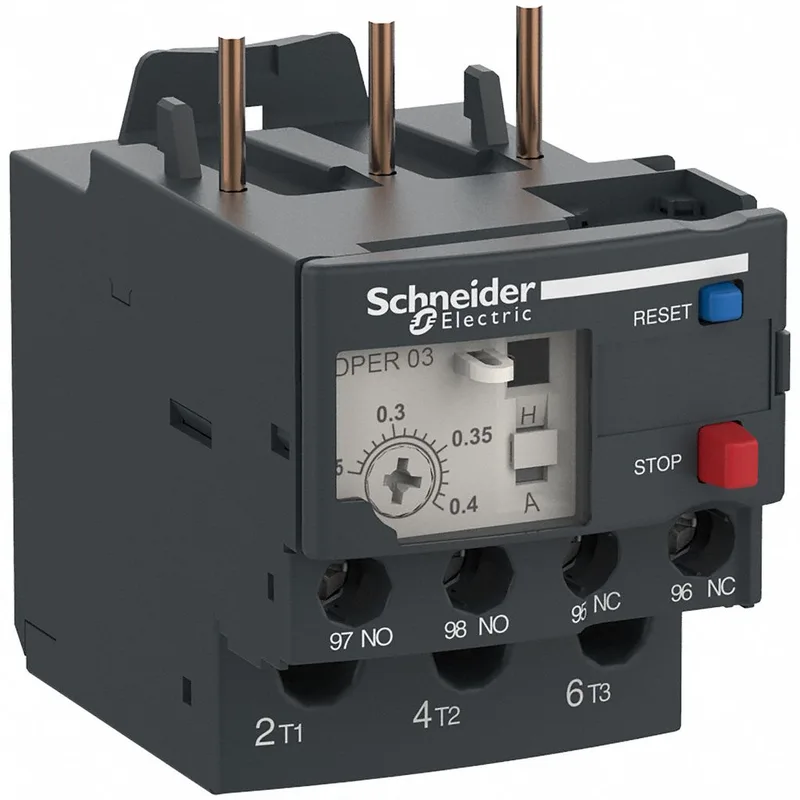

Square D DPER03 Thermal Overload Relay|Square D DPER03 Thermal Overload Relay
$24.39 – $33.55Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Red push-button stop Blue push-button reset |
| Network type | DC AC |
| Protection type | BS fuse 5 A - control circuit GB2 circuit breaker 5 A - control circuit GG fuse 5 A - control circuit |
| Product or component type | Thermal overload relay |
| Surge withstand | 6 kV IEC 60801-5 |
| Voltage | Power circuit 600 V cUL Power circuit 690 V IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 0...400 Hz power circuit IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Permissible current | 3 A 120 V AC-15 signalling circuit 0.22 A 125 V DC-13 signalling circuit |
| [Ith] conventional free air thermal current | 5 A signalling circuit |
| Network frequency | 0...400 Hz |
| Phase failure sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting support | Separate, with specific accessories Under contactor |
| Connections - terminals | Control circuit screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) flexible without cable end Control circuit screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) flexible with cable end Control circuit screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) solid without cable end Power circuit screw clamp terminals 1 0.002...0.009 in² (1.5...6 mm²) flexible without cable end Power circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) flexible with cable end Power circuit screw clamp terminals 1 0.002...0.009 in² (1...6 mm²) solid without cable end |
| Shock resistance | 15 gn 11 ms IEC 60068-2-7 |
| Vibration resistance | 6 gn on plate IEC 60068-2-6 |
| Depth | 2.8 in (70 mm) |
| Width | 1.8 in (45 mm) |
| Height | 2.6 in (66 mm) |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CUL |
| Range | Easy TeSys |
| Category | US10I1322363 |
| Device short name | DPER |
| Relay application | Overload protection |
| Tightening torque | Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals |
| Tripping threshold | 1.14 +/- 0.06 Ir IEC 60947-4-1 |
| Dielectric strength | 1.89 kV 50 Hz IEC 60947-1 |
| Protective treatment | TH IEC 60068 |
| Thermal overload class | Class 10 IEC 60947-4-1 |
| Temperature compensation | -4...140 °F (-20...60 °C) |
| Auxiliary contact composition | 1 NO + 1 NC |
| Ambient air temperature for storage | -76...158 °F (-60...70 °C) |
| Thermal protection adjustment range | 0.25...0.40 A |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) without derating IEC 60947-4-1 |
MPN
DPER03
