Schneider Electric GS1KK3
MPNGS1KK3
Obsolete

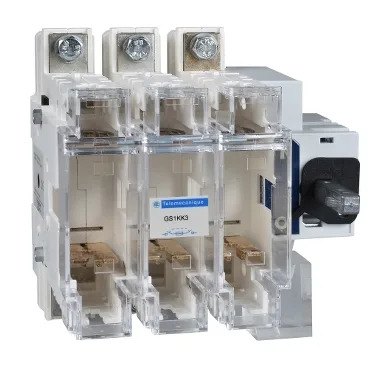

switch-disconnector fuse body GS1 - TeSys GS - 3 poles - DIN - 125 A
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Fuse type | DIN |
| Network type | AC DC |
| Type of operating handle | External frontal External right side |
| Product or component type | Fuse switch disconnector body |
| Voltage | 750 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Breaking capacity | 1000 A at 400 V (AC-23B) |
| [Ie] rated operational current | 100 A at 440 V 2 poles in series per phase DC-23A 100 A at 440 V 2 poles in series per phase DC-23B 100 A at 690 V with terminal cover AC-23A 100 A at 690 V with terminal cover AC-23B 125 A at 400 V AC-23A 125 A at 400 V AC-23B 125 A at 500 V AC-23A 125 A at 500 V AC-23B |
| [Icm] rated short-circuit making capacity | 100 kA at 400 V with protection by gG (gI) fuses 125 kA rating of associated fuses |
| [Ith] conventional free air thermal current | 125 A (at 40 °C) |
| Rated operational power in | at 690 V (AC-23A) at 690 V (AC-23B) at 400 V (AC-23A) at 400 V (AC-23B) at 500 V (AC-23A) at 500 V (AC-23B) |
| Network frequency | 50/60 Hz |
All specifications
| Parameter | Value |
|---|---|
| Poles description | 3P |
| IP degree of protection | IP20 conforming to IEC 60529 (with terminal cover) |
| Mounting support | Plate Rail |
| Connections - terminals | Power circuit: bars Power circuit: screw terminals 35...95 mm² flexible |
| Product weight | 1.5 kg |
| Electrical durability | 1000 cycles AC-23A 1000 cycles AC-23B |
| Mechanical durability | 10000 cycles |
| Standards | IEC 60947-3 IEC 60269-1 IEC 60269-2 |
| Range | TeSys |
| Fuse size | T00 |
| Fire resistance | 850 °C fuse cover conforming to IEC 60695-2-1 960 °C body conforming to IEC 60695-2-1 |
| Making capacity | 1250 A at 400 V AC-23B |
| Device short name | GS1 K |
| Tightening torque | Power circuit: 12 N.m - on bars Power circuit: 12 N.m - on screw terminals |
| Device application | Protection |
| Protective treatment | TH |
MPN
GS1KK3
