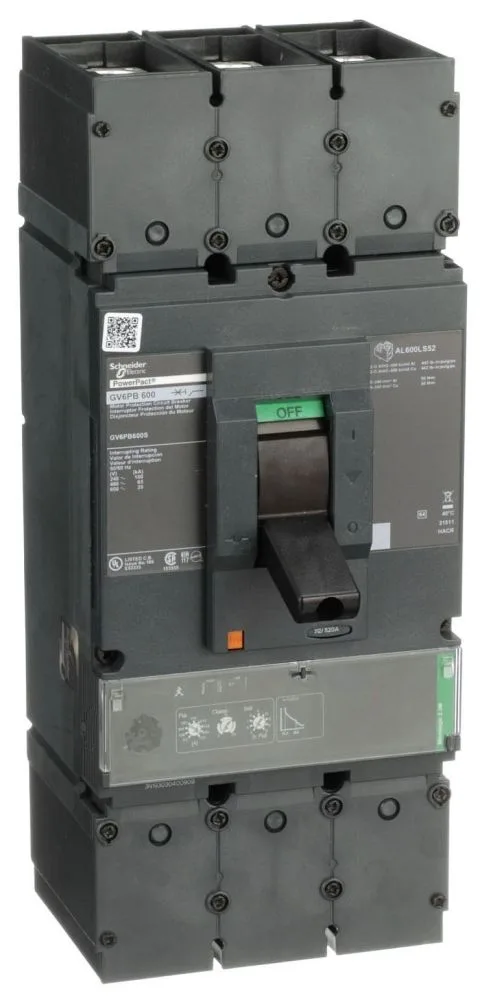

Schneider GV6PB600S 3-Pole 600A Circuit Breaker
MPNGV6PB600S
Active
Square D GV6PB600S 3P 600A CB|Square D GV6PB600S 3P 600A CB
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Motor protection circuit breaker |
| [Ue] rated operational voltage | 600 V AC |
| Breaking capacity | 100 kA 240 V AC 65 kA 480 V AC 25 kA 600 V AC |
| Line rated current | 600 A |
| Breaking capacity code | S |
| Poles description | 3P |
| Phase failure sensitivity | Yes |
| Mounting mode | Unit mount |
| Electrical connection | Lugs, load Lugs, line |
| Depth | 6.61 in (167.89 mm) |
| Width | 5.5 in (139.7 mm) |
| Height | 11.3 in (287.02 mm) |
| Category | US10I1122365 |
| AWG gauge | AWG 2/0...500 kcmil aluminium/copper |
| Tightening torque | 38.9...442.5 lbf.in (4.4...50 N.m) 0.1...0.4 in² (70...240 mm²) (AWG 2/0...500 kcmil) |
| Trip unit technology | ElectronicMicroLogic 2.3 M, |
| Thermal protection adjustment range | 312...520 A |
| Ambient air temperature for operation | 104 °F (40 °C) |
MPN
GV6PB600S
