Schneider Electric GV4PB115N

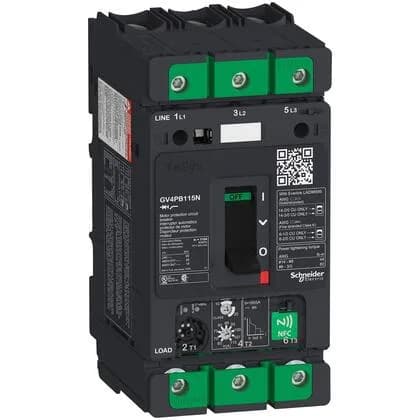

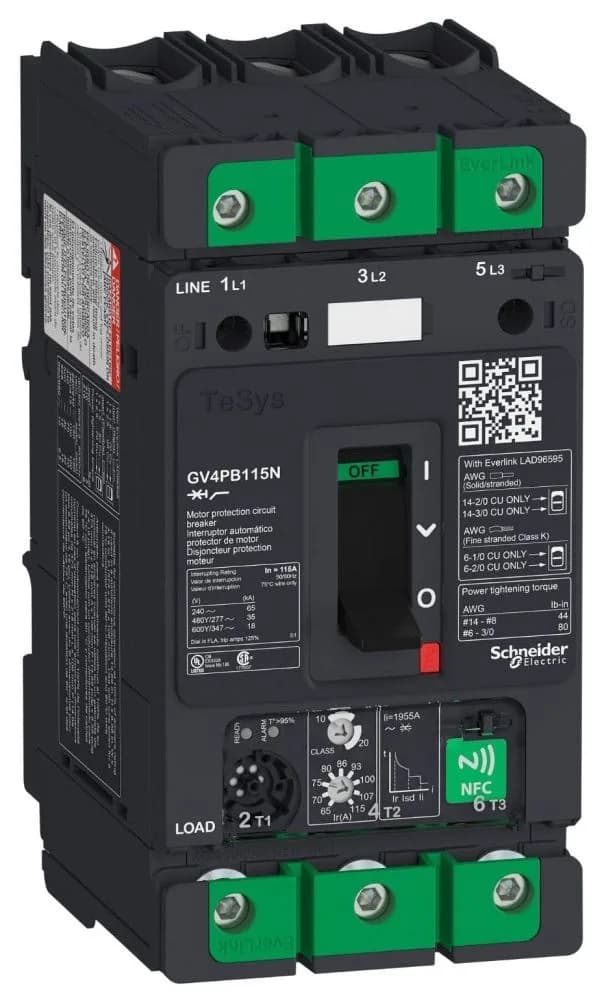

Schneider GV4PB115N TeSys GV4 115A 3P Motor Circuit Breaker

MPNGV4PB115N
Active

Schneider TeSys GV4, Motor circuit breaker, GV4PB115N, 115 A, 3-pole, 65 kA SCCR UL, electronic thermal-magnetic trip.

$217.17 – $610.00Ref. price · indicative, final on quote
Schneider Electric GV4PB115N datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV4PB115N key specifications
ParameterValue
Control typeToggle
Range of productTeSys GV4
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage800 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2 600Y/347 V AC 60 Hz UL 489
[Uimp] rated impulse withstand voltage8 kV IEC 60947-2
Breaking capacity65 kA SCCR 240 V AC 60 Hz UL 489 35 kA SCCR 480Y/277 V AC 60 Hz UL 489 18 kA SCCR 600Y/347 V AC 60 Hz UL 489 100 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 50 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 25 kA Icu 500 V AC 50/60 Hz IEC 60947-2 15 kA Icu 525 V AC 50/60 Hz IEC 60947-2 8 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2
Line rated current115 A
Magnetic tripping current1955 A
[Ith] conventional free air thermal current115 A IEC 60947-4-1
[Ics] rated service short-circuit breaking capacity100 % 220/240 V AC 50/60 Hz IEC 60947-2 100 % 380/415 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 500 V AC 50/60 Hz IEC 60947-2 100 % 525 V AC 50/60 Hz IEC 60947-2 25 % 660/690 V AC 50/60 Hz IEC 60947-2

All specifications

GV4PB115N additional specifications
ParameterValue
Power dissipation per pole4.6 W
Poles description3P
Phase failure sensitivityYes IEC 60947-4-1
Rated dutyContinuous IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1
IK degree of protectionIK07 IEC 62262
IP degree of protectionIP40 IEC 60529
Connections - terminalsEverLink BTR screw connectors top) 1 0.002...0.1 in² (1.5...70 mm²) - rigid EverLink BTR screw connectors top) 1 0.002...0.08 in² (1.5...50 mm²) - flexible EverLink BTR screw connectors bottom) 1 0.004...0.1 in² (2.5...95 mm²) - rigid EverLink BTR screw connectors bottom) 1 0.004...0.1 in² (2.5...70 mm²) - flexible
Pollution degree3
Operating altitude5000 m
ColorGray RAL 7016)
Depth4.6 in (116 mm)
Width3.2 in (81 mm)
Height6.7 in (171 mm)
Electrical durability10000 cycles AC-3 440 V In/2 5000 cycles AC-3 440 V In
Mechanical durability40000 cycles
StandardsEN/IEC 60947-1 EN/IEC 60947-2 EN/IEC 60947-4-1 UL 489 CSA C22.2 No 5
RangeTeSys Deca
CategoryUS10I1122365
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV4PB
Tightening torque79.7 lbf.in (9 N.m) 0.02...0.1 in² (16...95 mm²) 44.3 lbf.in (5 N.m) 0.002...0.02 in² (1.5...10 mm²)
Device applicationMotor protection
Operating positionAny position
Trip unit technologyElectronic Thermal-magnetic
Mechanical robustnessVibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 Vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 Shocks 15 gn 11 ms IEC 60068-2-27
Maximum operating rate25 cyc/h
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-58...185 °F (-50...85 °C)
Ambient air temperature for operation-13...158 °F (-25...70 °C)

Product details

What the GV4PB115N Is and Does

The GV4PB115N is a 115 A, 3-pole motor circuit breaker in the TeSys GV4 range. It provides combined overload and short-circuit protection via an electronic thermal-magnetic trip unit with fixed magnetic tripping at 1955 A. The utilization category AC-3 matches motor switching duty. Breaking capacity reaches 65 kA SCCR at 240 V AC (UL 489) and 100 kA Icu at 220/240 V AC (IEC), allowing direct installation on high-fault-capacity industrial panels without upstream fusing in many cases.

The 115 A line-rated current sets the continuous load limit. The magnetic trip is fixed at 1955 A. EverLink screw terminals accept up to 95 mm² rigid bottom connection and 70 mm² top. Torque settings are 44.3 lbf·in for smaller conductors and 79.7 lbf·in for the main power circuit. With IP40 enclosure and IK07 impact resistance, the unit is suitable for clean industrial cabinet environments. Pollution degree 3 confirms operation in typical factory atmospheres.

Dual-certified under UL 489 and CSA C22.2 No 5 for North America, plus IEC 60947-1/-2/-4-1 for global panels. Fire resistance tested at 960 °C (IEC 60695-2-11).
