Fit for Square D LA/LH/Series 4/Q4 Breakers
Square D LA11352 auxiliary switch designed for LA/LH/Series 4/Q4 circuit breakers. Contact configuration 2NO-2NC. Rated 10 A at 125/250 VAC, 5 A at 30 VDC, with UL and CSA approval.

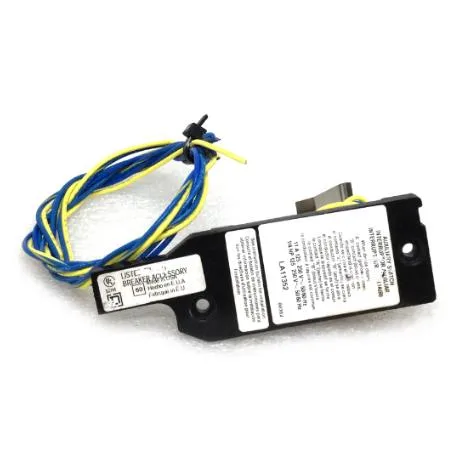

Square D LA11352 Circuit Breaker Auxiliary Switch, 2NO-2NC
MPNLA11352
Square D LA11352, Circuit Breaker Accessory, Breaker Auxiliary Switch, 2NO-2NC, 10A at 125/250 VAC, 5A at 30 VDC.
$820.00 – $1,037.56Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| AC voltage rating | 125/250 V |
| DC voltage rating | 30 V |
| Contact configuration | 2NO-2NC |
| Used on | LA/LH/SERIES 4/Q4 CIRCUIT BREAKER |
| Category | Circuit Breaker Accessories |
| Sub-Category | Breaker Auxiliary Switch |
| Prop 65 warning | WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING: DINP AND DIDP WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CARCINOGEN AND REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV |
| Manufacturer brand | Square D Co. |
| Product description | Square D LA11352 Circuit Breaker Auxiliary Switch 2A/2B |
| Additional information | APPROVAL UL, CSA; CURRENT RATING 10 AMPERE AT 125/250 VAC, 5 AMPERE AT 30 VDC |
| Full technical description | La/Lh/Series 4/Q4 Circuit Breaker Used on; 2NO-2NC Contact Configuration; 125/250 V AC Voltage Rating; 30 V DC Voltage Rating; Approval UL, CSA; Current Rating 10 Ampere at 125/250 VAC, 5 Ampere at 30 VDC |
Product details
Frequently asked questions
What is the UPC for LA11352?
UPC is 78590100548.
Which circuit breakers is LA11352 used on?
Used on Square D LA, LH, Series 4, and Q4 circuit breakers.
What approvals does LA11352 carry?
UL and CSA approval is listed.
MPN
LA11352
