Overview

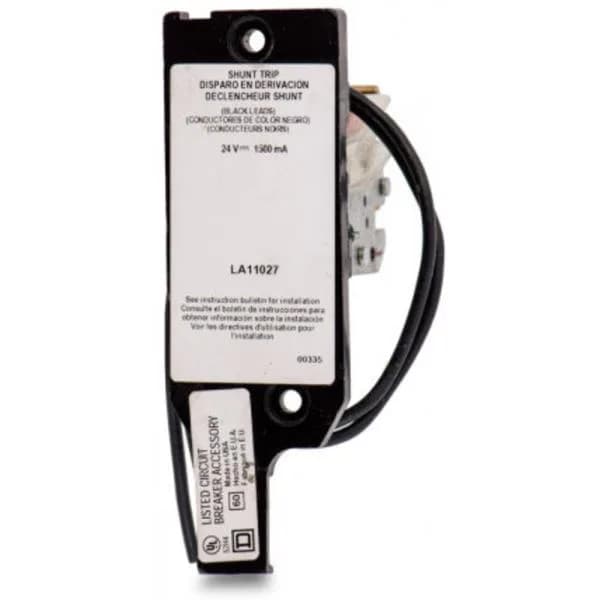

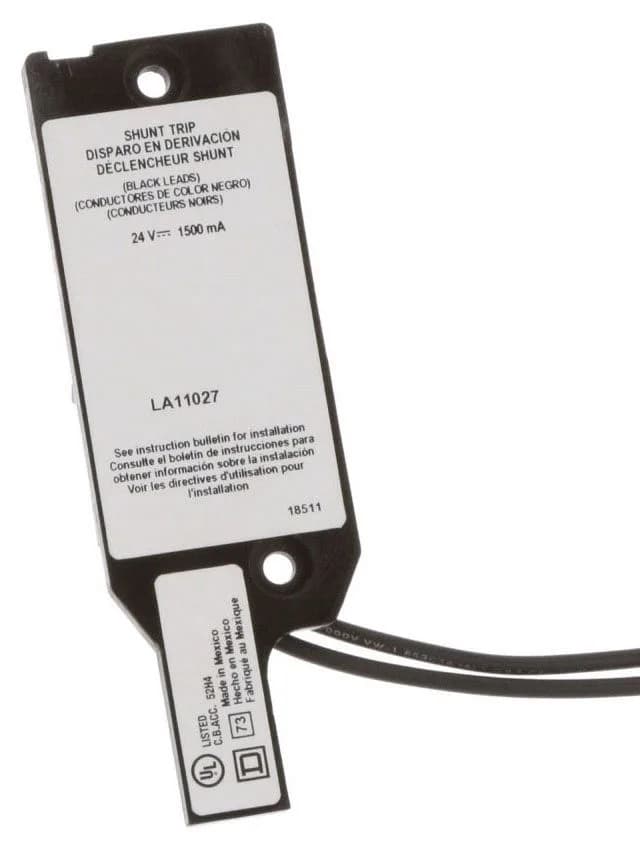

The LA11027 is a Schneider shunt trip accessory for FA/FH/FC frame circuit breakers, energized by a 24 V DC coil drawing 36 W. Terminal torque is 6.2 N·m. It is in active production, so standard lead times apply for new orders.
Selection vs LA11042
The LA11042 is a 24 V AC/DC shunt trip rated 60 VA at 12 V and 21/168 VA at 24 V, versus the LA11027's fixed 36 W DC-only coil. Pick the LA11027 when the control circuit is 24 V DC and you need the lower inrush; choose the LA11042 for 12 V systems or AC coils.
