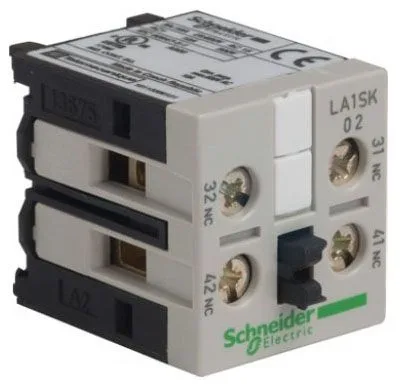

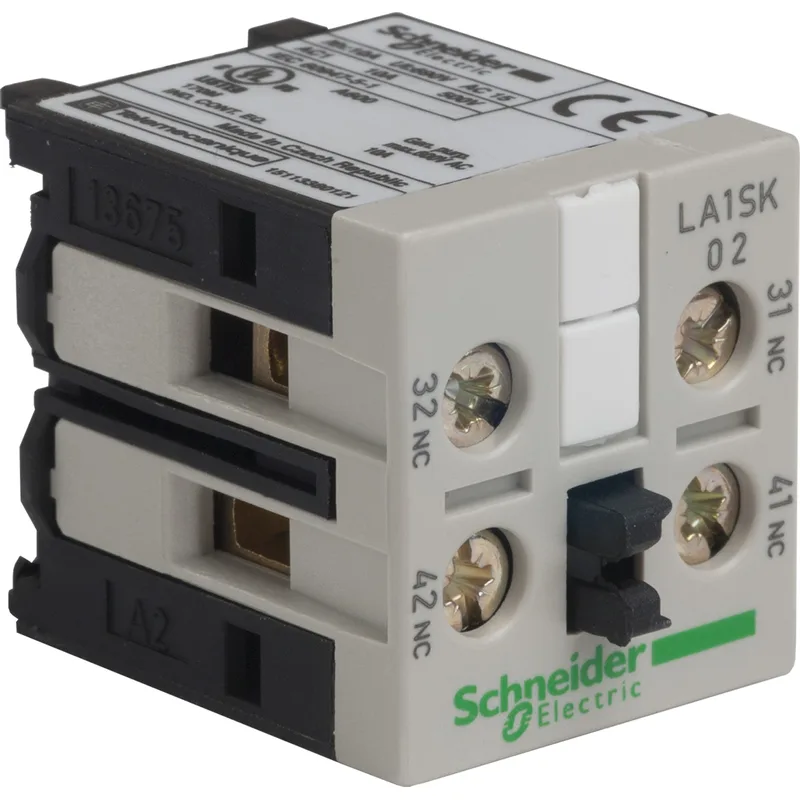

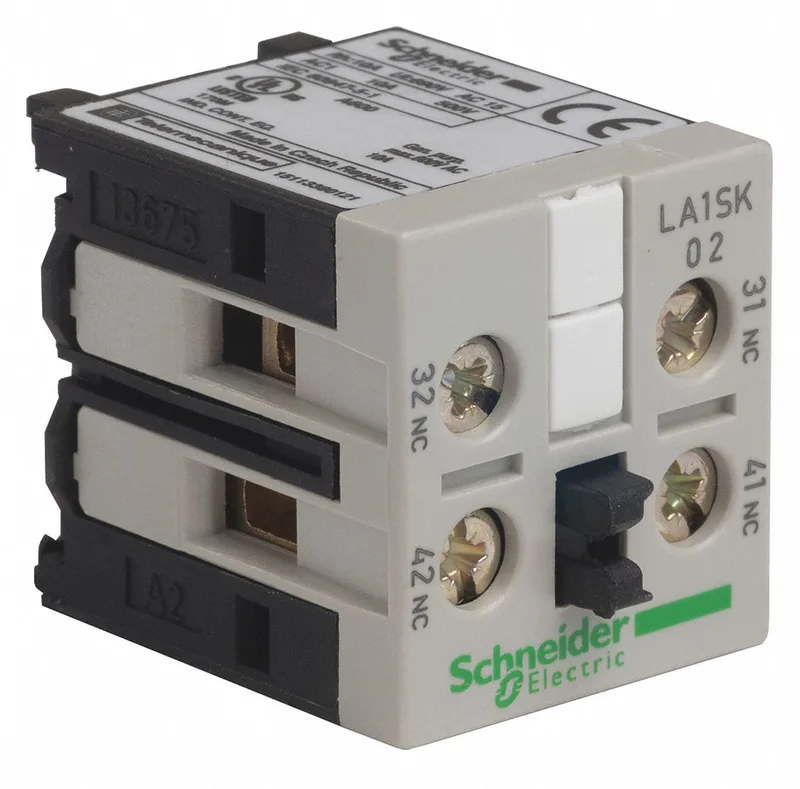

Schneider Electric LA1SK02
MPNLA1SK02
Active
TeSys SK, auxiliary contact block, 2 NC|TeSys SK, auxiliary contact block, 2 NC
$2.78Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Auxiliary contact block |
| Voltage | 690 V IEC 60947 690 V BS 5424 690 V VDE 0110 group C 690 V CSA C22.2 No 14 |
| [Ue] rated operational voltage | 690 V AC <= 400 Hz |
| [Ith] conventional free air thermal current | 10 A (at 131 °F (55 °C)) |
| Pole contact composition | 2 NC |
| IP degree of protection | IP2X |
| Mounting location | Front side |
| Connections - terminals | screw clamp terminals 1 0.002...0.009 in² (1.5...6 mm²)solid screw clamp terminals 2 0.002...0.006 in² (1.5...4 mm²)solid screw clamp terminals 1 0.0008...0.009 in² (0.5...6 mm²)flexible with cable end screw clamp terminals 2 0.0005...0.004 in² (0.35...2.5 mm²)flexible with cable end screw clamp terminals 1 0.0005...0.009 in² (0.35...6 mm²)flexible without cable end screw clamp terminals 2 0.0005...0.002 in² (0.35...1.5 mm²)flexible without cable end |
| Operating altitude | 6561.68 ft (2000 m) without derating |
| Width | 1.06 in (27 mm) |
| Standards | CSA C22.2 No 60947-5-1 EN/IEC 60947-5-1 UL 60947-5-1 |
| Range | TeSys |
All specifications
| Parameter | Value |
|---|---|
| Category | US10I1222371 |
| Device short name | LA1SK |
| Tightening torque | 7.08 lbf.in (0.8 N.m) screw clamp terminals |
| Protective treatment | TC IEC 60068 |
| Associated fuse rating | 10 A gL conforming to IEC 60947 10 A gL conforming to VDE 0660 |
| Auxiliary contacts operation | Instantaneous |
| Ambient air temperature for storage | -58...158 °F (-50...70 °C) |
| Ambient air temperature for operation | -4...122 °F (-20...50 °C) |
MPN
LA1SK02
