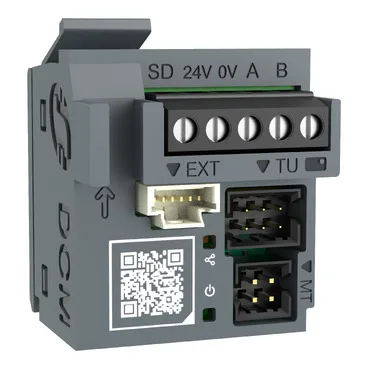

Schneider Electric LV434311
MPNLV434311
Active
DCM Modbus SL Communication and Control Module
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product / component type | Communication module |
Mechanical
| Parameter | Value |
|---|---|
| Height | 34.33 mm |
| Width | 27.4 mm |
| Depth | 30.15 mm |
Specifications
| Parameter | Value |
|---|---|
| Device short name | breaker status control module |
Other specifications
| Parameter | Value |
|---|---|
| Input voltage | 24 V DC |
| Output current | 0...450 mA |
| Output voltage | 24 V DC |
| Range of product | ComPact NSX100...250 ComPact NSX400...630 |
| Current consumption | < 30 mA 24 V DC room temperature |
| Power consumption in | 0.72 W |
| Connections - terminals | Screw type terminals |
| Communication network type | Modbus, Modbus Serial line slave4.8, 9.6, 19.2, 38.4 kbit/s on RS485 |
MPN
LV434311
