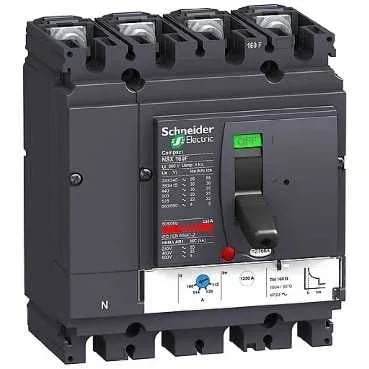

Schneider Electric LV430083
MPNLV430083
Obsolete
LV430083 by SCHNEIDER ELECTRIC
$179.07Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Network type | AC DC |
| Protection type | L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
| Range of product | ComPact NSX100...250 |
| Product or component type | Trip unit |
| Long-time protection delay adjustment type tr | Fixed |
| Short-time protection delay adjustment type tsd | Fixed |
| Short-time protection pick-up adjustment type isd | Fixed |
| Long-time pick-up adjustment type ir (thermal protection) | Adjustable |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz 750 V DC |
| Trip unit rated current | 160 A at 40 °C |
| Network frequency | 50/60 Hz |
| Poles | 3P |
All specifications
| Parameter | Value |
|---|---|
| Protected poles description | 3t |
| Standards | EN/IEC 60947-2 UL 508 |
| Range | ComPact |
| Trip unit name | TM-G |
| Device application | Generator |
| Trip unit technology | Thermal-magnetic |
| Earth-leakage protection | Without |
| Trip unit protection functions | LI |
| Ambient air temperature for storage | -50...85 °C |
| Ambient air temperature for operation | -25...70 °C |
| [Tr] Long-Time protection delay adjustment range | 120...400 s at 1.5 x In |
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| [Isd] short-time protection pick-up adjustment range | 440 A |
