Schneider Electric LVS04034
MPNLVS04034
Active

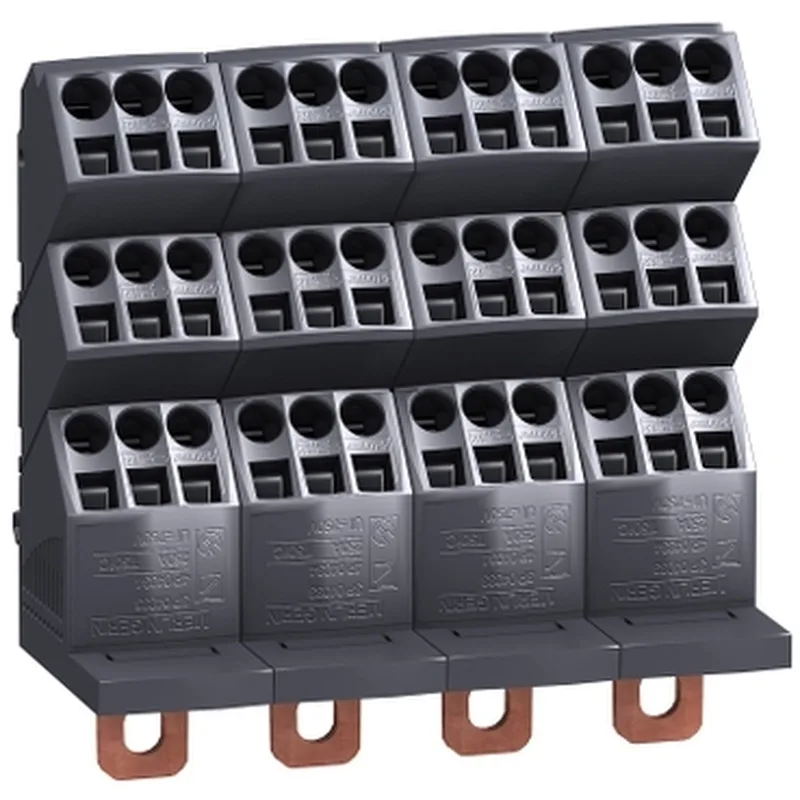

Distribution block, LINERGY DP, for ComPacT 4P, 250A, 36holes
$67.16 – $110.19Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Linergy |
| Product or component type | Distribution block |
| Voltage | 750 V AC |
| [Ue] rated operational voltage | 690 V AC |
| [Ipk] rated peak withstand current | 30 kA |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icw] rated short-time withstand current | 8.5 kA for 1 s |
| [Ie] rated operational current | 250 A at 40 °C |
| Poles description | 4P |
| IP degree of protection | IPxx B |
| Mounting support | Mounting plate DIN rail |
| Connections - terminals | Supply: direct connection120 mm² Distribution: spring terminal (phase) , 6 x 4...10 mm² (flexible) Distribution: spring terminal (phase) , 3 x 6...16 mm² (flexible) Distribution: spring terminal (phase) , 6 x 4...10 mm² (rigid) Distribution: spring terminal (phase) , 3 x 6...16 mm² (rigid) |
All specifications
| Parameter | Value |
|---|---|
| Resistance to incandescent wire | 960 °C conforming to IEC 60695-2-11 |
| Pollution degree | 3 |
| Depth | 64 mm |
| Width | 140 mm |
| Color | Anthracite grey (RAL 7016) |
| Height | 140 mm |
| Standards | IEC 60947-7-1 IEC 61439-1, inside enclosure IEC 61439-2, inside enclosure |
| Range | Linergy |
| Installed device | EasyPact: fixed CVS100...250 without earth leakage protection - control: toggle - horizontal installation EasyPact: fixed CVS100...250 without earth leakage protection - control: direct front rotary handle - horizontal installation EasyPact: fixed CVS100...250 with earth leakage protection - control: toggle - horizontal installation EasyPact: fixed CVS100...250 with earth leakage protection - control: direct front rotary handle - horizontal installation EasyPact: fixed CVS100...250 without earth leakage protection - control: toggle - vertical installation EasyPact: fixed CVS100...250 without earth leakage protection - control: direct front rotary handle - vertical installation EasyPact: fixed CVS100...250 with earth leakage protection - control: toggle - vertical installation EasyPact: fixed CVS100...250 with earth leakage protection - control: direct front rotary handle - vertical installation ComPact: fixed INS250 - control: direct front rotary handle - horizontal installation ComPact: fixed INS250 - control: direct front rotary handle - vertical installation ComPact: fixed INS250 - control: lateral handle - vertical installation ComPact: fixed INV100 - control: direct front rotary handle - horizontal installation ComPact: fixed INV100 - control: direct front rotary handle - vertical installation ComPact: fixed INV160 - control: direct front rotary handle - horizontal installation ComPact: fixed INV160 - control: direct front rotary handle - vertical installation ComPact: fixed INV200 - control: direct front rotary handle - horizontal installation ComPact: fixed INV200 - control: direct front rotary handle - vertical installation ComPact: fixed INV250 - control: direct front rotary handle - horizontal installation ComPact: fixed INV250 - control: lateral handle - vertical installation ComPact: fixed INV250 - control: direct front rotary handle - vertical installation ComPact: fixed NSX100...250 and ammeter without earth leakage protection - control: toggle - horizontal installation ComPact: fixed NSX100...250 without earth leakage protection - control: toggle - horizontal installation ComPact: fixed NSX100...250 with earth leakage protection - control: toggle - horizontal installation ComPact: fixed NSX100...250 without earth leakage protection - control: direct front rotary handle - horizontal installation ComPact: fixed NSX100...250 with earth leakage protection - control: direct front rotary handle - horizontal installation ComPact: fixed NSX100...250 without earth leakage protection - control: motor mechanism - horizontal installation ComPact: plug-in NSX100...250 without earth leakage protection - control: toggle - horizontal installation ComPact: fixed NSX100...250 without earth leakage protection - control: toggle - vertical installation ComPact: fixed NSX100...250 with earth leakage protection - control: toggle - vertical installation ComPact: fixed NSX100...250 without earth leakage protection - control: direct front rotary handle - vertical installation ComPact: fixed NSX100...250 with earth leakage protection - control: direct front rotary handle - vertical installation |
| I2t on activation | 72250000 A².s |
| Overvoltage category | III |
| Accessory (separate part category) | Current distribution accessory |
| Ambient air temperature for operation | -25...55 °C |
MPN
LVS04034
