Schneider Electric LVS04033
MPNLVS04033
Active

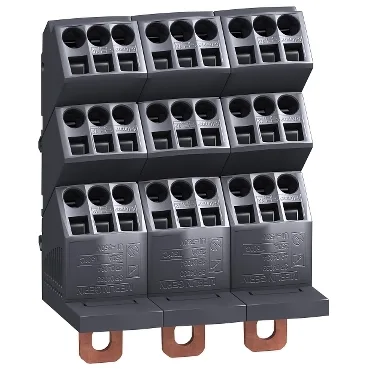

Distribution block, LINERGY DP, for ComPacT 3P, 250A, 27holes
$50.22 – $98.21Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | 690 V AC |
| Poles description | 3P |
| Rated insulation voltage (Ui) | 750 V AC |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Overvoltage category | III |
| Parameter | Value |
|---|---|
| Product name | Linergy DP |
| Product / component type | Distribution block |
| Product range / family | Linergy |
| Parameter | Value |
|---|---|
| Mounting support | Mounting plate DIN rail |
| Terminal connections | Supply: direct connection120 mm² Distribution: spring terminal (phase) , 6 x 4...10 mm² (flexible) Distribution: spring terminal (phase) , 3 x 6...16 mm² (flexible) Distribution: spring terminal (phase) , 6 x 4...10 mm² (rigid) Distribution: spring terminal (phase) , 3 x 6...16 mm² (rigid) |
| Width | 105 mm |
| Height | 140 mm |
| Depth | 64 mm |
| Parameter | Value |
|---|---|
| Operating ambient temperature | -25...55 °C |
| IP degree of protection | IPxx B |
| Pollution degree | 3 |
| Parameter | Value |
|---|---|
| Standards | IEC 60947-7-1 IEC 61439-1, inside enclosure IEC 61439-2, inside enclosure |
MPN
LVS04033
