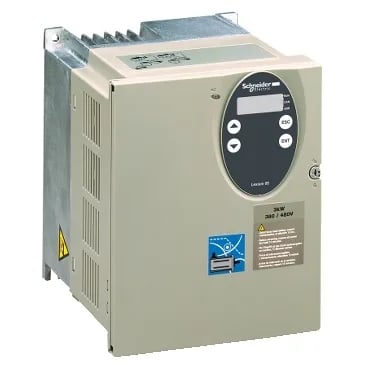

Schneider Electric LXM05AD28F1
MPNLXM05AD28F1
Obsolete
motion servo drive LXM05A - 0.85kW - 110..120 V - 1-phase - with EMC filter
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Lexium 05 |
| Type of polarization | Integrated and switchable impedances for CANopen No polarization impedances for Modbus |
| Product or component type | Motion servo drive |
| Output voltage | 1000...2000 m with conditions |
| Power supply voltage | 110...120 V - 15...10 % |
| Power supply voltage limits | 85...132 V |
| Line current | 20.7 A at 120 V 22.6 A at 110 V |
| Inrush current | 60 A |
| Maximum leakage current | 30 mA |
| Continuous output current | 13 A at 8 kHz 15 A at 4 kHz |
| Transient RMS output current | 20 A at 4 kHz for 3 s 20 A at 8 kHz for 3 s |
| Nominal power | 0.85 kW at 4 kHz |
All specifications
| Parameter | Value |
|---|---|
| Power supply frequency limits | 47.5...63 Hz |
| Supply frequency | 50/60 Hz - 5...5 % |
| Switching frequency | 8 kHz 4 kHz |
| Network number of phases | Single phase |
| Component name | LXM05A |
| Overvoltage category | III |
| Analogue input number | 2 |
| Discrete input number | 2 safety discrete input(s) 4 logic discrete input(s) |
| Maximum prospective line isc | 1 kA |
MPN
LXM05AD28F1
