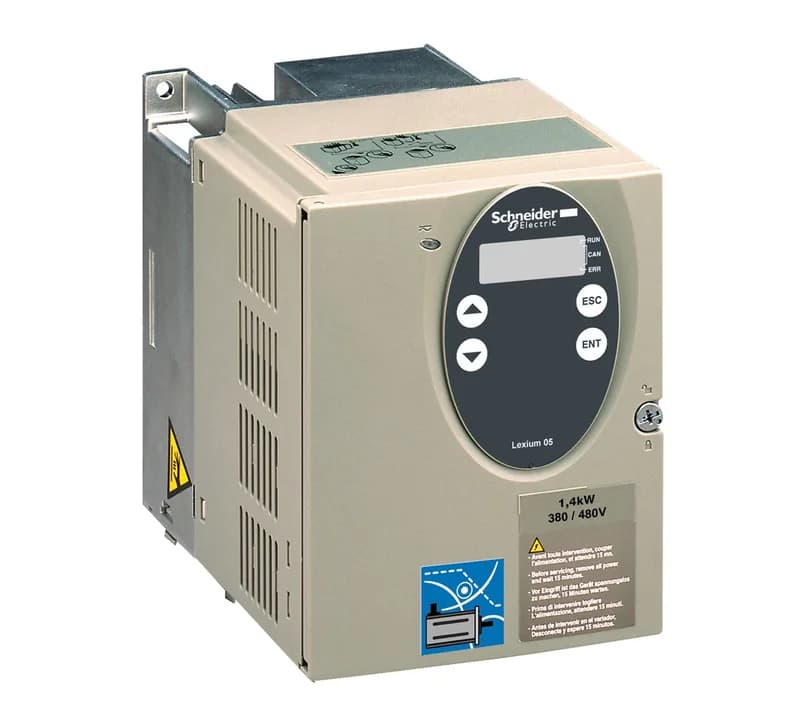

Schneider Electric LXM05AD17M2
MPNLXM05AD17M2
Obsolete
Schneider Electric Motion Servo Drive
$3,700.00 – $4,805.49Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Lexium 05 |
| Type of polarization | Integrated and switchable impedances for CANopen No polarization impedances for Modbus |
| Product or component type | Motion servo drive |
| Output voltage | 1000...2000 m with conditions |
| Power supply voltage | 200...240 V - 15...10 % |
| Power supply voltage limits | 170...264 V |
| Line current | 10.5 A at 240 V 12.7 A at 200 V |
| Inrush current | 60 A |
| Maximum leakage current | 30 mA |
| Continuous output current | 7 A at 8 kHz 8 A at 4 kHz |
| Transient RMS output current | 11 A at 8 kHz for 3 s 12 A at 4 kHz for 3 s |
| Nominal power | 1.2 kW at 4 kHz |
All specifications
| Parameter | Value |
|---|---|
| Power supply frequency limits | 47.5...63 Hz |
| Supply frequency | 50/60 Hz - 5...5 % |
| Switching frequency | 8 kHz 4 kHz |
| Network number of phases | Single phase |
| Component name | LXM05A |
| Overvoltage category | III |
| Analogue input number | 2 |
| Discrete input number | 2 safety discrete input(s) 4 logic discrete input(s) |
| Maximum prospective line isc | 1 kA |
MPN
LXM05AD17M2
