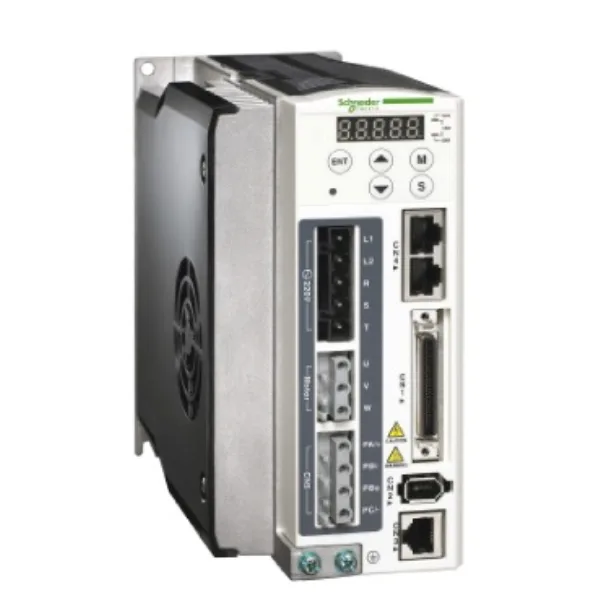

Schneider LXM23AU10M3X Servo Drive
MPNLXM23AU10M3X
Active
LXM23AU10M3X - SERO DRIVE by TELEMECANIQUE
$1,665.14Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Lexium 23 Plus |
| Product or component type | Motion servo drive |
| Output voltage | 1000...2000 m with continuous power derating of 1 % per 100 m |
| Supply voltage limits | 200...255 V single phase 170...255 V 3 phases |
| Supply voltage | 220 V single phase (tolerance: - 10...15 %) 220 V 3 phases (tolerance: - 20...15 %) |
| Maximum leakage current | 3.5 mA |
| Continuous output current | 7.3 A |
| Nominal power | 1 kW at 220 V |
| Continuous power | 1000 W at 220 V |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network frequency limits | 47.5...63 Hz |
| Network number of phases | 3 phases Single phase |
| Device short name | LXM23 |
| Format of the drive | Book |
MPN
LXM23AU10M3X
