Schneider Electric LZ2H6X53BD
MPNLZ2H6X53BD
Active

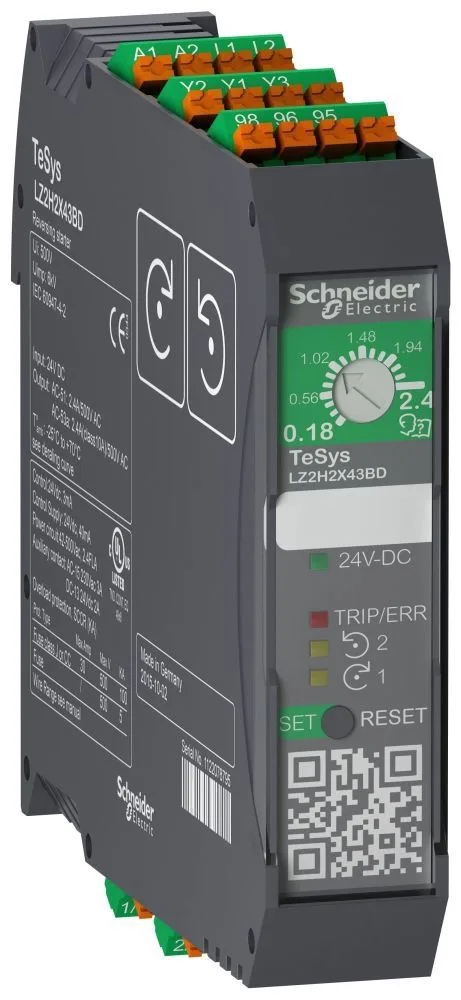

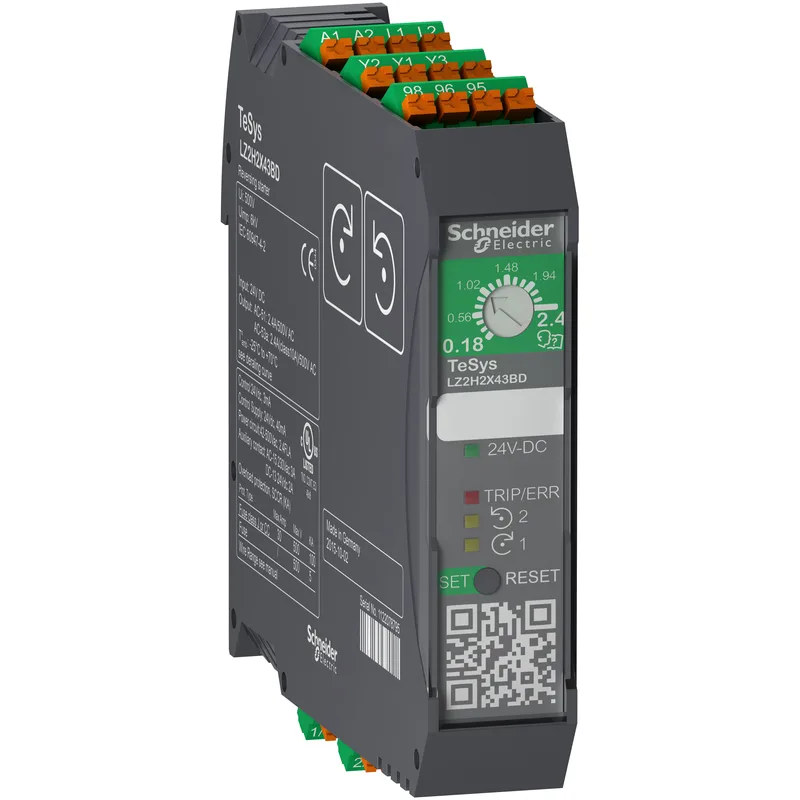

COMPACT STARTER_REV 6.5A STD SPRING|COMPACT STARTER_REV 6.5A STD SPRING
$3.92Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Motor starter type | Direct on line |
| Product or component type | Reversing ultra-compact starter |
| Coil voltage | 24 V DC |
| Voltage | 500 V AC 50/60 Hz |
| Control circuit voltage limits | 19.2...30 V DC |
| [Ue] rated operational voltage | 500 V AC |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Current consumption | <= 40 mA 24 V DC |
| [Ie] rated operational current | 6.5 A 500 V AC-53A 9 A 500 V AC-51 5 A 500 V AC-53A mounting side by side 7 A 500 V AC-51 mounting side by side |
| Motor power | 1.5 kW 220 V AC 0.65 1.5 kW 230 V AC 0.65 2.2 kW 380 V AC 0.65 3 kW 400 V AC 0.65 3 kW 415 V AC 0.65 3 kW 440 V AC 0.65 3 kW 500 V AC 0.65 |
| Maximum horse power rating | 1 hp 200 V AC 1.5 hp 230 V AC 3 hp 460 V AC |
| Poles description | 3P |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 |
| Mounting mode | By clips |
| Mounting support | DIN rail |
| Connections - terminals | spring clamp terminals 1 0.0003...0.004 in² (0.2...2.5 mm²) rigid spring clamp terminals 1 0.0004...0.004 in² (0.25...2.5 mm²) flexible - with cable end spring clamp terminals 1 0.0003...0.004 in² (0.2...2.5 mm²) flexible - without cable end |
| Pollution degree | 2 |
| Depth | 4.5 in (114.5 mm) |
| Width | 0.9 in (22.5 mm) |
| Height | 3.9 in (99 mm) |
| Electrical durability | 30 Mcycles |
| Standards | UL 60947-4-1 IEC 60947-4-2 |
| Certifications | CULus CE |
| Range | TeSys |
| Reset | Manual Automatic reset Electrical reset |
| Category | US10I1222349 |
| Device short name | LZ2H |
| Protective treatment | TC |
| Maximum operating rate | 120 cyc/mn AC-51 50 % 6 cyc/mn AC-53A 50 % |
| Thermal overload class | Class 10A IEC 60947-4-2 |
| Auxiliary contact composition | 1 C/O fault signalling |
| Ambient air temperature for storage | -40...176 °F (-40...80 °C) |
| Thermal protection adjustment range | 1.5...9 A |
| Ambient air temperature for operation | -13...86 °F (-25...30 °C) without derating 86...158 °F (30...70 °C) with derating |
MPN
LZ2H6X53BD
