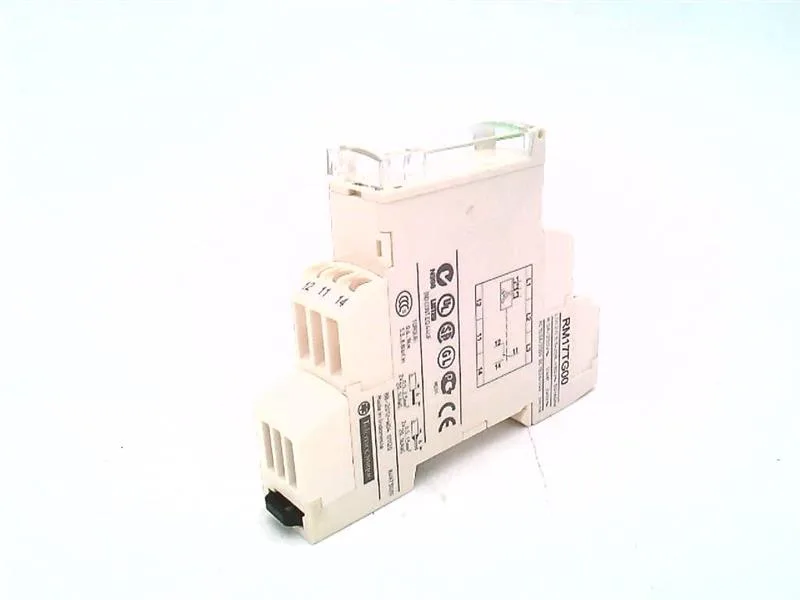

Schneider Electric RM17TG00
MPNRM17TG00
Active
HARMONY, MODULAR 3-PHASE SUPPLY
$33.02Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Control relay |
| Control type | Without test button |
| Time delay type | Without |
| Range of product | Harmony Control Relays |
| Product or component type | 3-phase control relay |
| Contacts type and composition | 1 C/O |
| Voltage range | 183...528 V |
| Supply voltage limits | 183...528 V AC |
| Dielectric test voltage | 2 kV AC 50 Hz, 1 min |
| Maximum switching voltage | 250 V AC 250 V DC |
| Supply voltage | , self-powered |
| Measurement voltage limits | 183...528 V AC |
All specifications
| Parameter | Value |
|---|---|
| Voltage detection threshold | < 100 V AC |
| Coil voltage | 208...480 V |
| Voltage | 400 V IEC 60664-1 |
| Control circuit voltage limits | - 12 % + 10 % Un |
| Nominal output current | 5 A |
| Minimum switching current | 10 mA 5 V DC |
| Delay at power up | 650 ms |
| Power consumption in | 0...22 VA 400 V AC 50 Hz |
| Supply frequency | 50/60 Hz +/- 10 % |
| Control circuit frequency | 50...60 Hz +/- 10 % |
| Utilisation category | AC-12 IEC 60947-5-1 AC-13 IEC 60947-5-1 AC-14 IEC 60947-5-1 AC-15 IEC 60947-5-1 DC-12 IEC 60947-5-1 DC-13 IEC 60947-5-1 |
| IP degree of protection | IP20 IEC 60529 terminals) IP30 IEC 60529 casing) |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end |
| Response time | 500 MOhm 500 V DC IEC 60255-5 > 500 MOhm 500 V DC IEC 60664-1 |
| Pollution degree | 3 IEC 60664-1 |
| Shock resistance | 15 gn 11 ms IEC 60255-21-1 |
| Relative humidity | 95 % 131 °F (55 °C) IEC 60068-2-30 |
| Vibration resistance | 0.35 mm (f= 5...57.6 Hz) conforming to IEC 60068-2-6 1 gn (f= 57.6...150 Hz) conforming to IEC 60255-21-1 |
| Non-dissipating shock wave | 4 kV |
| Width | 0.7 in (17.5 mm) |
| Housing material | Polycarbonate |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Standards | IEC 60255-1 |
| Marking | CE |
| Category | US10CP222380 |
| Directives | 73/23/EEC - low voltage directive 89/336/EEC - electromagnetic compatibility |
| Relay name | RM17TG |
| Operating rate | <= 360 operations/hour full load |
| Output contacts | 1 C/O |
| Local signalling | LED (yellow) for relay ON |
| Measurement range | 208...480 V AC |
| Tightening torque | 5.3...8.9 lbf.in (0.6...1 N.m) IEC 60947-1 |
| Operating position | Any position without derating |
| Overvoltage category | III conforming to IEC 60664-1 |
| Safety reliability data | MTTFd = 924.6 years B10d = 850000 |
| Switching capacity in | 1250 VA |
| Relay monitored parameters | Phase sequence Phase failure detection (2 or more phase cut) |
| Product specific application | For 3-phase supply |
| Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4 Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 Immunity for industrial environments conforming to IEC 61000-6-2 |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -4...122 °F (-20...50 °C) |
