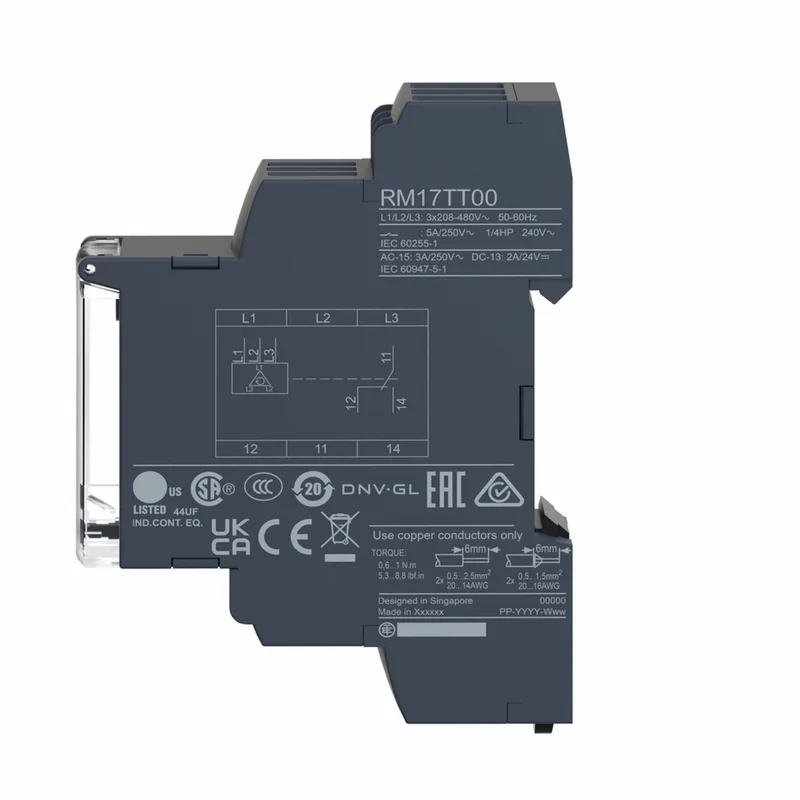

Schneider Electric RM17TT00

Schneider Electric RM17TT00

MPNRM17TT00
Active

HARMONY, MODULAR MULTIFUNCTION 3

$45.72Ref. price · indicative, final on quote
Schneider Electric RM17TT00 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

RM17TT00 key specifications
ParameterValue
TypeMultifunction control relay
Control typeWithout test button
Time delay typeWithout
Range of productHarmony Control Relays
Product or component type3-phase control relay
Contacts type and composition1 C/O
Voltage range208...480 V phase to phase
Supply voltage limits183...528 V AC
Dielectric test voltage2 kV AC 50 Hz, 1 min IEC 60255-5 2 kV AC 50 Hz, 1 min IEC 60664-1
Maximum switching voltage250 V AC 250 V DC
Supply voltage, self-powered
Measurement voltage limits183...528 V AC

All specifications

RM17TT00 additional specifications
ParameterValue
Coil voltage208...480 V
Voltage400 V IEC 60664-1
Control circuit voltage limits- 12 % + 10 % Un
Nominal output current5 A
Maximum switching current5 A AC 5 A DC
Minimum switching current10 mA 5 V DC
Delay at power up650 ms
Power consumption in0...22 VA 400 V AC 50 Hz
Supply frequency50/60 Hz +/- 10 %
Control circuit frequency50...60 Hz +/- 10 %
Phase failure sensitivity0.7 Un
Utilisation categoryAC-12 IEC 60947-5-1 AC-13 IEC 60947-5-1 AC-14 IEC 60947-5-1 AC-15 IEC 60947-5-1 DC-12 IEC 60947-5-1 DC-13 IEC 60947-5-1
IP degree of protectionIP20 IEC 60529 terminals) IP30 IEC 60529 casing)
Mounting support35 mm symmetrical DIN rail conforming to IEC 60715
Connections - terminalsScrew terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Response time< 200 ms (in the event of a fault)
Pollution degree3 IEC 60664-1
Shock resistance15 gn 11 ms IEC 60255-21-1
Relative humidity95 % 131 °F (55 °C) IEC 60068-2-30
Vibration resistance0.35 mm (f= 5...57.6 Hz) conforming to IEC 60068-2-6 1 gn (f= 57.6...150 Hz) conforming to IEC 60255-21-1
Non-dissipating shock wave4 kV IEC 60255-5 4 kV IEC 60664-1 4 kV IEC 61000-4-5
Width0.7 in (17.5 mm)
Housing materialPolycarbonate
Electrical durability100000 cycles
Mechanical durability30000000 cycles
StandardsIEC 60255-1
MarkingCE
CategoryUS10CP222380
Directives73/23/EEC - low voltage directive 89/336/EEC - electromagnetic compatibility
Hysteresis2 %
Relay nameRM17TT
Reset time1500 ms time delay
Operating rate<= 360 operations/hour full load
Output contacts1 C/O
Repeat accuracy0.5 % input and measurement circuit 3 % time delay
Local signallingLED (green) for power ON LED (yellow) for relay ON
Measurement error< 0.05 %/°C with temperature variation < 1 % over the whole range with voltage variation
Measurement range208...480 V AC
Tightening torque5.3...8.9 lbf.in (0.6...1 N.m) IEC 60947-1
Operating positionAny position without derating
Overvoltage categoryIII conforming to IEC 60664-1
Insulation resistance> 500 MOhm 500 V DC IEC 60255-5 > 500 MOhm 500 V DC IEC 60664-1
Maximum measuring cycle150 ms measurement cycle as true rms value
Safety reliability dataMTTFd = 502.2 years B10d = 470000
Switching capacity in1250 VA
Relay monitored parametersPhase failure detection Phase sequence
Product specific applicationFor 3-phase supply
Electromagnetic compatibilityEmission standard for industrial environments conforming to IEC 61000-6-4 Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 Immunity for industrial environments conforming to IEC 61000-6-2
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation-4...122 °F (-20...50 °C)
MPN
RM17TT00
