Schneider Electric SSL1D03BD
MPNSSL1D03BD
Active

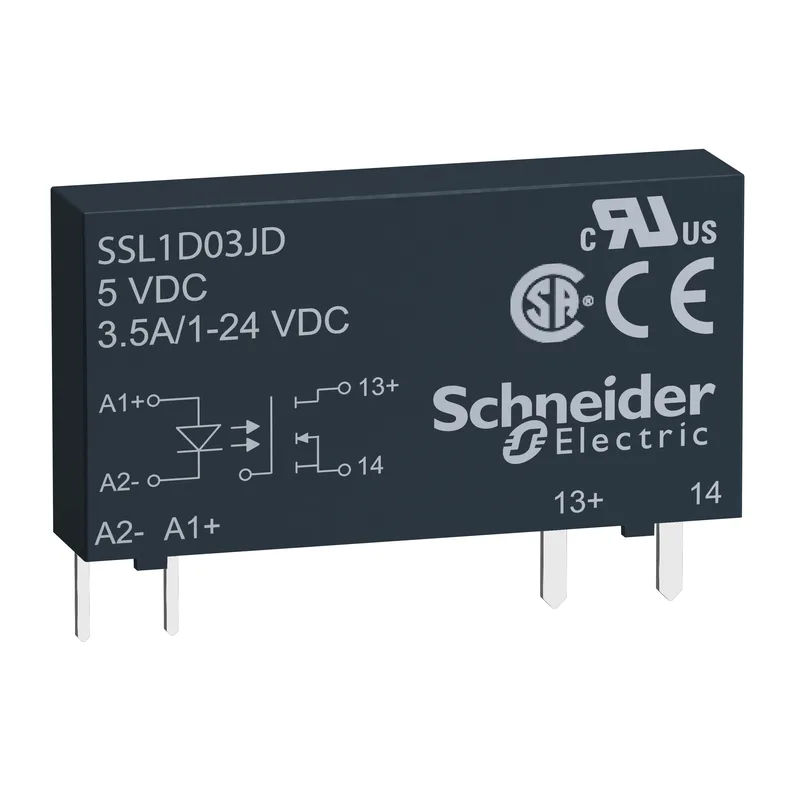

SSR SLIM 1 CHANNEL 3.5A@1-24VDC 15-30VDC|SSR SLIM 1 CHANNEL 3.5A@1-24VDC 15-30VDC
$12.19Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Harmony Solid State Relays |
| Solid state output type | Mosfet output DC switching |
| Output voltage | 3...30 V DC |
| Maximum voltage drop | <0.5 V on-state |
| Maximum switching voltage | 10 V DC turn-off |
| Minimum switching voltage | 15 V DC turn-on |
| Ui rated insulation voltage | 30 V |
| Coil voltage | 15...30 V DC |
| [Uimp] rated impulse withstand voltage | 3.5 kV for input to case IEC 62314 3.5 kV for input/output circuit UL 508 3.5 kV for input/output circuit IEC 62314 3.5 kV output to case IEC 62314 3.5 kV output to case 3.5 kV for input to case UL 508 3.5 kV output to case UL 508 |
| Load current | 0.001...3.5 A |
| Input current | 7 mA |
| Surge current | 9 A 10 ms |
All specifications
| Parameter | Value |
|---|---|
| Line rated current | 3.5 A |
| Maximum leakage current | 0.001 mA off-state |
| Maximum operating frequency | 500 Hz |
| Phases | 1 phase |
| IP degree of protection | IP00 |
| Mounting support | Socket |
| Response time | 0.2 ms (turn-on) 0.1 ms (turn-off) |
| Pollution degree | 2 |
| Depth | 0.6 in (15 mm) |
| Width | 0.2 in (5 mm) |
| Height | 1.1 in (28 mm) |
| Standards | IEC/EN 60947-1 IEC/EN 62314 UL 508 C22.2 No. 14 |
| Marking | CE |
| Category | US10CP222375 |
| Input impedance | 3500 Ohm |
| Flame retardance | V0 conforming to UL 94 |
| Device short name | SSL |
| Device presentation | Complete product |
| Dielectric strength | 2500 V for input/output |
| Overvoltage category | III |
| Capacitance unbalance | 2.5 pF input/output |
| Insulation resistance | > 100 MOhm 500 V DC |
| Output switching mode | DC switching |
| Transient overvoltage | 35 V |
| Electromagnetic compatibility | Electrostatic discharge - test level: 4 kV criteria B (contact discharge) conforming to IEC 61000-4-2 Electrostatic discharge - test level: 8 kV criteria B (air discharge) conforming to IEC 61000-4-2 Conducted RF disturbances - test level: 10 V criteria A (0.15...80 MHz) conforming to IEC 61000-4-6 Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m criteria A (80 MHz to 1 GHz) conforming to IEC 61000-4-3 Radiated radio-frequency electromagnetic field immunity test - test level: 3 V/m criteria A (1.4...6 GHz) conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test - test level: 2 kV criteria B (5 kHz) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV criteria B (5 kHz) conforming to IEC 61000-4-4 Surge immunity test - test level: 0.5 kV criteria B (line to line) conforming to IEC 61000-4-5 Surge immunity test - test level: 1 kV criteria B (line to earth) conforming to IEC 61000-4-5 Radiated emission - test level: 30...1000 Mhz conforming to IEC 60947-1 Conducted emission - test level: 0.15...30 Mhz conforming to IEC 60947-1 |
| Ambient air temperature for storage | -4...185 °F (-20...85 °C) |
| Ambient air temperature for operation | -4...176 °F (-20...80 °C) |
