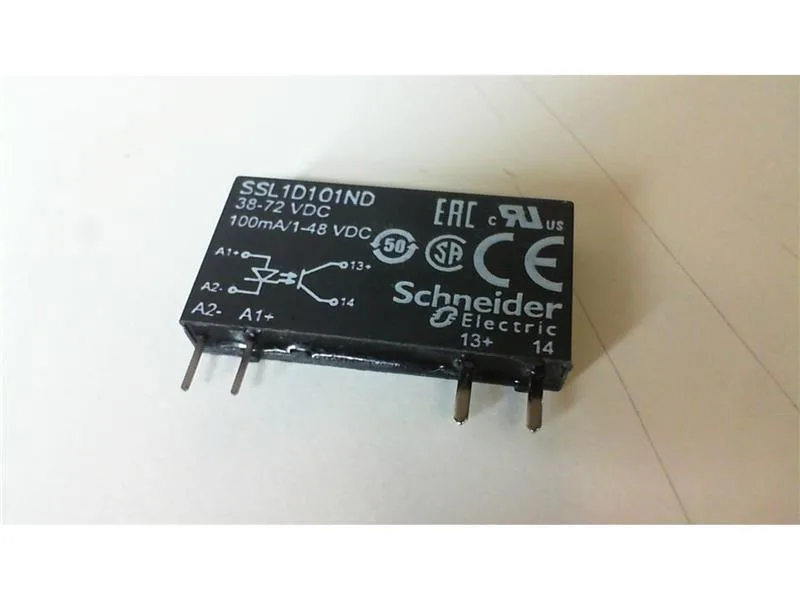

Schneider Electric SSL1D101ND
MPNSSL1D101ND
Obsolete
SSL1D101ND - SSR SLIM 1 CHANN by SCHNEIDER ELECTRIC
$10.40Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Harmony Relay |
| Solid state output type | Transistor output DC switching |
| Contacts type and configuration | 1 NO |
| Output voltage | 1...48 V DC |
| Maximum voltage drop | <1 V on-state |
| Maximum switching voltage | 10 V DC turn-off |
| Minimum switching voltage | 38 V DC turn-on |
| Coil voltage | 38...72 V DC |
| Load current | 0.001...0.1 A |
| Surge current | 0.3 A 10 ms |
| Line rated current | 0.1 A |
| Maximum leakage current | 0.001 mA off-state |
All specifications
| Parameter | Value |
|---|---|
| Maximum operating frequency | 500 Hz |
| Phases | 1 phase |
| Mounting support | Socket |
| Response time | 0.02 ms (turn-on) 0.13 ms (turn-off) |
| Pollution degree | 2 |
| Depth | 0.6 in (15 mm) |
| Width | 0.2 in (5 mm) |
| Height | 1.1 in (28 mm) |
| Marking | CE |
| Category | US10CP222375 |
| Input impedance | 20 kOhm |
| Flame retardance | V0 conforming to UL 94 |
| Device short name | SSL |
| Device presentation | Complete product |
| Dielectric strength | 3750 V for input/output |
| Overvoltage category | III |
| Capacitance unbalance | 1.5 pF input/output |
| Transient overvoltage | 60 V DC |
| Ambient air temperature for storage | -4...185 °F (-20...85 °C) |
| Ambient air temperature for operation | -4...176 °F (-20...80 °C) |
MPN
SSL1D101ND
