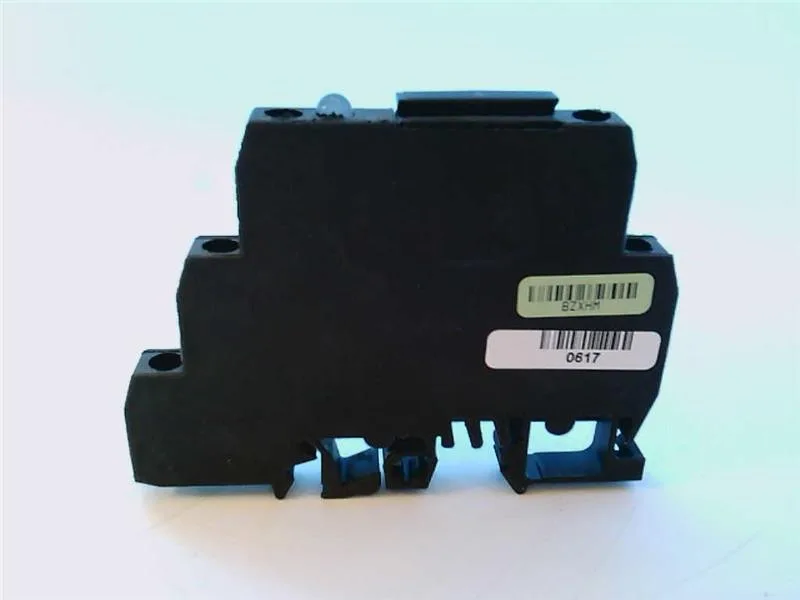

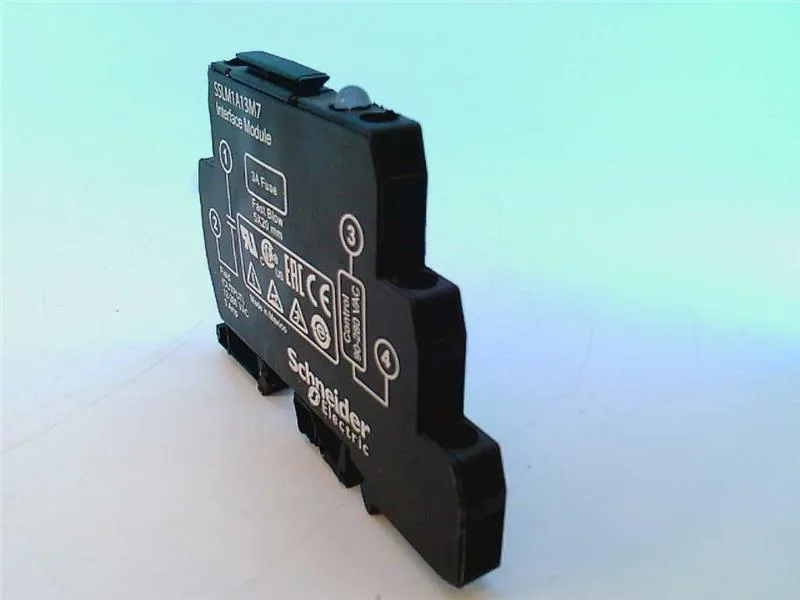

Schneider Electric SSLM1A13M7
MPNSSLM1A13M7
Obsolete

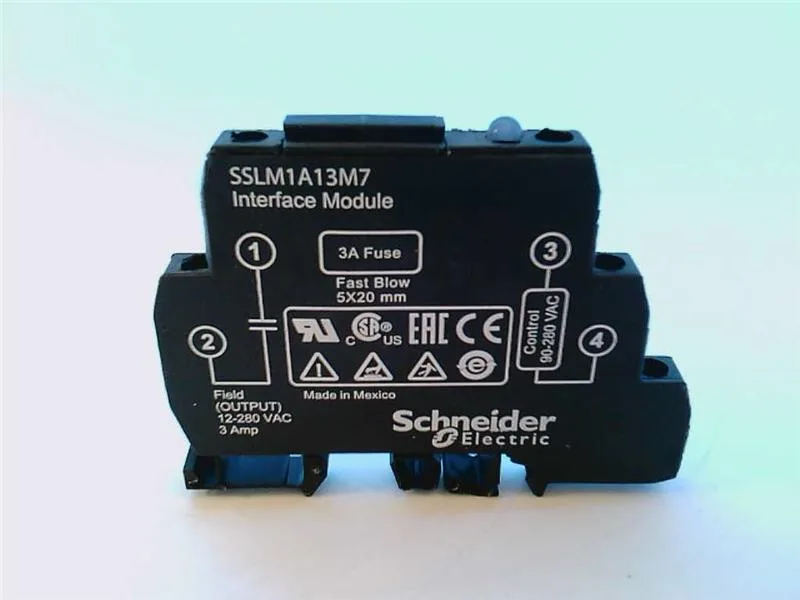

SSLM1A13M7 - SSR OUTPUT MOD by SQUARE D
$17.78Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Harmony Relay |
| Contacts type and configuration | 1 NO |
| Output voltage | 12...280 V AC |
| Switching voltage | 90 V AC turn-on |
| Maximum voltage drop | <1.65 V on-state |
| Coil voltage | 90...280 V AC |
| Load current | 0.1...3 A |
| Line rated current | 3 A |
| Maximum leakage current | 5 mA off-state |
| Phases | 1 phase |
| Mounting support | Symmetrical DIN rail |
| Connections - terminals | Screw terminals, 1 x 0.2...1 x 5.26 mm² AWG 24...AWG 10) |
All specifications
| Parameter | Value |
|---|---|
| Pollution degree | 2 |
| Depth | 2.5 in (63 mm) |
| Width | 0.3 in (7.5 mm) |
| Height | 3.1 in (80 mm) |
| Marking | EAC CSA UL CE |
| Category | US10CP221127 |
| CLAMPING FORCE | 0.6...0.8 N.m |
| Device short name | SSLM |
| Device presentation | Complete product |
| Dielectric strength | 4000 V for input/output |
| Overvoltage category | III |
| Ambient air temperature for operation | 32...158 °F (0...70 °C) |
MPN
SSLM1A13M7
