Schneider Electric VBF02
MPNVBF02
Active

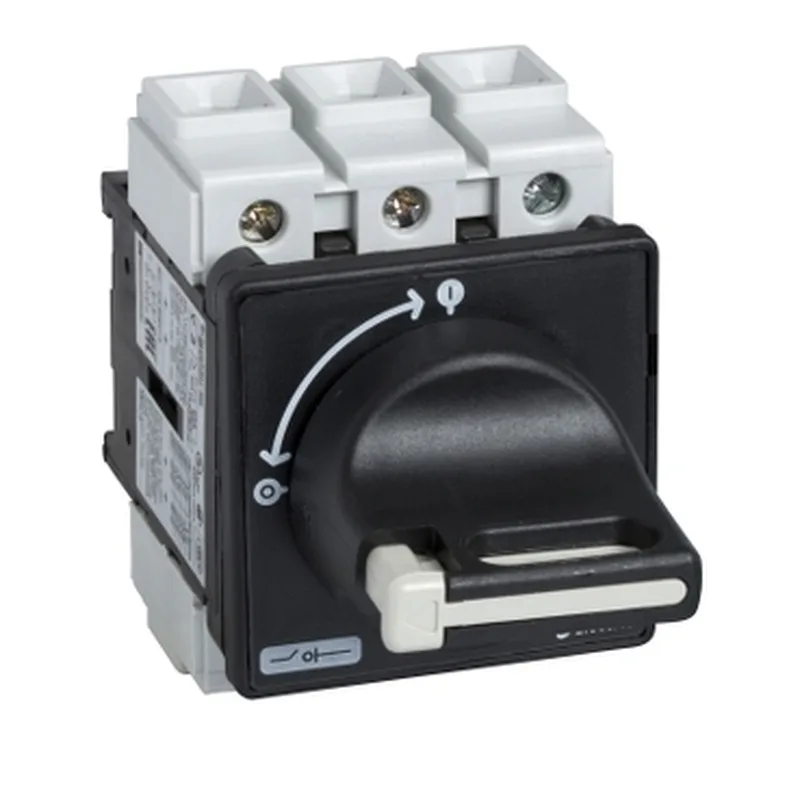

Switch disconnector,TeSys Control,for ON/OFF,12A(V02),4 screws fixing,for mountingfor mounting on door
$27.81Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Rotary handle |
| Network type | DC AC |
| Product type | Switch disconnector |
| Contact type and composition | 3 NO |
| [Ue] IEC rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icw] rated short time withstand current | 300 A 400 V 1 s |
| Breaking capacity | 120 A 400 V AC-21A) 120 A 400 V AC-22A) 120 A 400 V AC-23A) |
| [Ie] rated operational current | 8.1 A AC-23 Ue: 400 V |
| Rated conditional short circuit current | 10 kA 400 V 12 A aM 10 kA 400 V 12 A gG |
| [Icm] rated short circuit making capacity | 1 kA 400 V at Ipeak |
| [Ith] conventional free air thermal current | 12 A |
All specifications
| Parameter | Value |
|---|---|
| [Ithe] conventional enclosed thermal current | 10 A |
| IEC rated operational power in | 3 kW 400...415 V AC-3) 4 kW 500 V AC-3) 1.5 kW 230...240 V AC-3) 5.5 kW 500 V AC-23A) 5.5 kW 690 V AC-3) 7.5 kW 690 V AC-23A) 3 kW 230...240 V AC-23A) 4 kW 400...415 V AC-23A) |
| Poles | 3P |
| Intermittent duty class | 30 |
| IP rating | IP20 conforming to IEC 60529 IP65 |
| Mounting method | By 4 screws handle |
| Mounting support | Handle door Switch door |
| Rotary handle mounting style | Direct |
| IEC terminal connection | Power circuit screw clamp terminals 0.02 in² (10 mm²) solid Power circuit screw clamp terminals 0.009 in² (6 mm²) flexible - with cable end |
| Width | 2.4 in (60 mm) |
| Height | 2.9 in (74 mm) |
| Handle color | Black |
| Base dimension | 60 x 60 mm |
| Product weight | 0.55 lb(US) (0.25 kg) |
| Handle front plate color | Black |
| Electrical durability | 100000 cycles AC-21 30000 cycles DC-1 30000 cycles DC-2 30000 cycles DC-3 30000 cycles DC-4 30000 cycles DC-5 |
| Mechanical durability | 100000 cycles |
| Standards | IEC 60947-3 |
| Range | TeSys |
| Marking | 0 - 1 |
| Category | US10CP121730 |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Device short name | VBF |
| Safety category | High performance |
| Tightening torque | Power circuit 18.6 lbf.in (2.1 N.m) screw clamp terminals |
| Compatibility code | Main switch disconnector |
| Device application | Preventive maintenance |
| Device composition | Switch Handle |
| Protective treatment | TC |
| Mechanical robustness | Vibrations 10...150 Hz 1 gn) IEC 60068-2-6 Shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Making capacity ( i rms) | 120 A 400 V AC-21A 120 A 400 V AC-22A 120 A 400 V AC-23A |
| Rotary handle padlocking | 1 to 3 padlocks 0.2...0.3 in (4...8 mm) |
| Suitability for isolation | Yes |
| Ambient air temperature for operation | -4...122 °F (-20...50 °C) |
