Schneider Electric VBF0GE
MPNVBF0GE
Active

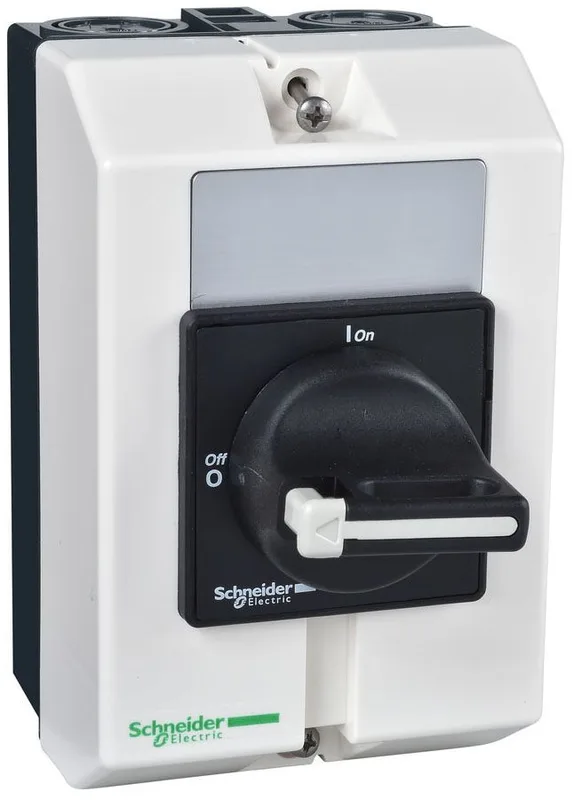

Square D VBF0GE Switch Disconnect Enclosure|Square D VBF0GE Switch Disconnect Enclosure
$33.02Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Rotary handle |
| Product or component type | Enclosed switch-disconnector |
| [Ue] rated operational voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icw] rated short-time withstand RMS current | 300 A 400 V 1 s |
| Breaking capacity | 200 A 400 V AC-21A) 200 A 400 V AC-22A) 200 A 400 V AC-23A) |
| [Ie] rated operational current | 14.5 A AC-23A)400 V |
| Rated conditional short-circuit current | 10 kA 400 V 25 A aM 10 kA 400 V 25 A gG |
| [Icm] rated short-circuit making capacity | 1 kA 400 V at Ipeak |
| [Ithe] conventional enclosed thermal current | 20 A |
| Rated operational power in | 7.5 kW 400 V AC-23) 5.5 kW 400 V AC-3) |
| Poles description | 3P |
All specifications
| Parameter | Value |
|---|---|
| Intermittent duty class | 30 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Connections - terminals | screw clamp terminals 0.02 in² (10 mm²) solid screw clamp terminals 0.009 in² (6 mm²) flexible - with cable end |
| Depth | 5.2 in (131 mm) |
| Width | 3.5 in (90 mm) |
| Height | 5.7 in (146 mm) |
| Handle colour | Black |
| Handle front plate colour | Black |
| Handle front plate dimension | 60 x 60 mm |
| Electrical durability | 100000 cycles AC-21 30000 cycles DC-1...5 |
| Mechanical durability | 100000 cycles |
| Standards | IEC 60204 IEC 60947-4-1 |
| Range | TeSys |
| Marking | 0 - 1 |
| Category | US10CP121730 |
| Fire resistance | 1760 °F (960 °C) IEC 60595-2-1 |
| Device short name | VBF |
| Safety category | High performance |
| Tightening torque | 18.6 lbf.in (2.1 N.m) screw clamp terminals |
| Device application | Preventive maintenance |
| Protective treatment | TC |
| Mechanical robustness | Vibrations 10...150 Hz 1 gn) IEC 60068-2-6 Shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Making capacity ( i rms) | 250 A 400 V AC-21A 250 A 400 V AC-22A 250 A 400 V AC-23A |
| Rotary handle padlocking | 1 to 3 padlocks 0.2...0.3 in (4...8 mm) |
| Suitability for isolation | Yes |
| Environmental characteristic | Standard environment |
| Ambient air temperature for operation | -4...122 °F (-20...50 °C) |
MPN
VBF0GE
