The VW3L10222 is a cable entry accessory for Schneider Electric's Lexium integrated drive family. It provides two M16 cable entries for routing both signal and power supply cables through a single sealed point on the drive enclosure. Rated IP54, the assembly keeps dust and splashing water out of the drive housing — sufficient for most control cabinet and light industrial environments, though not rated for washdown or submersion. The cable entry accepts cables with an outer diameter of 5 to 9 mm (0.2 to 0.4 in), covering common motor power and encoder/sensor cable sizes used on Lexium integrated drives.
Schneider Electric VW3L10222 Cable Entry IP54, 2 x M16, 5-9
MPNVW3L10222
Active
Schneider Electric Lexium integrated drive accessory, cable entry IP54 for signals and power supply cable, 2 x M16 entries, 5-9 mm cable OD, set of 1.
$40.64Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Cable entry IP54 for signals and power supply cable |
| Accessory category | Connection accessories |
| Accessory type | Connection accessories |
| Destination / intended use | For integrated drives |
| Product range | Lexium integrated drive |

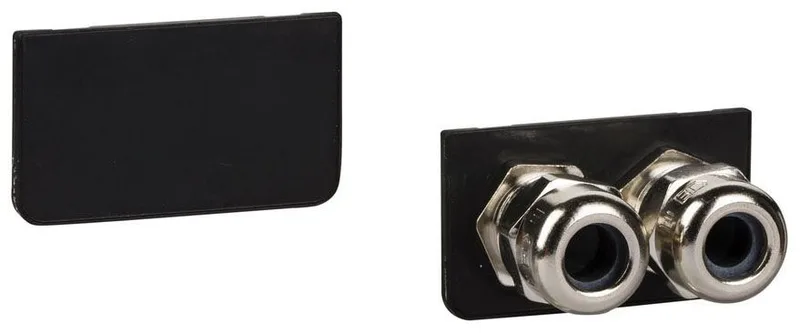

| Kit contents | 1 insert with cable entries 1 insert for sealing |
| Parameter | Value |
|---|---|
| IP protection rating | IP54 |
| Parameter | Value |
|---|---|
| Cable entry | 2 x M16 |
| Quantity per set | Set of 1 |
| Cable outer diameter | 0.2...0.4 in (5...9 mm) |
Product details
Frequently asked questions
What is the cable entry size and cable diameter range for VW3L10222?
It has two M16 cable entries and accepts cables with an outer diameter of 5 to 9 mm (0.2 to 0.4 in).
What IP rating does the VW3L10222 cable entry provide?
The assembly is rated IP54, protecting against dust ingress and splashing water from any direction.
