Schneider Electric VW3M5122R30 — Motor Control Accessories

VW3M5122R30 Power Cable, 3 m, Obsolete — Sourced to Order

MPNVW3M5122R30
Obsolete

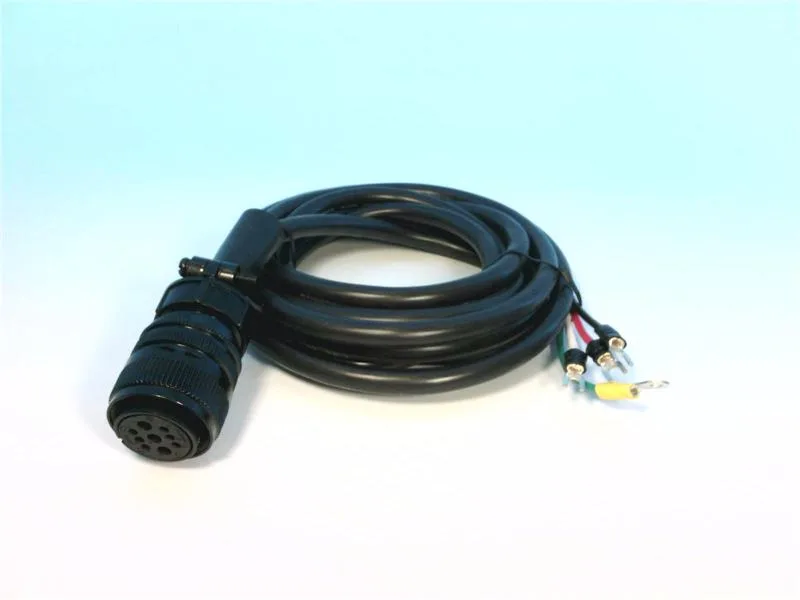

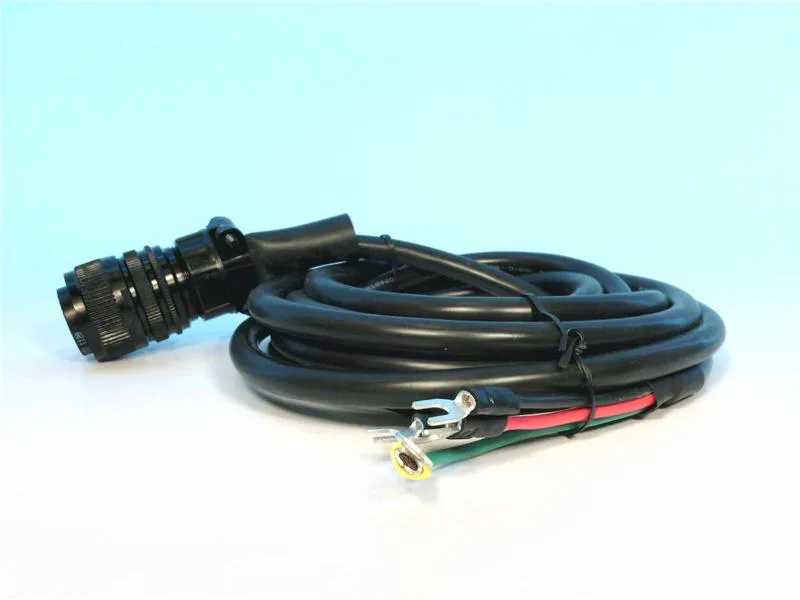

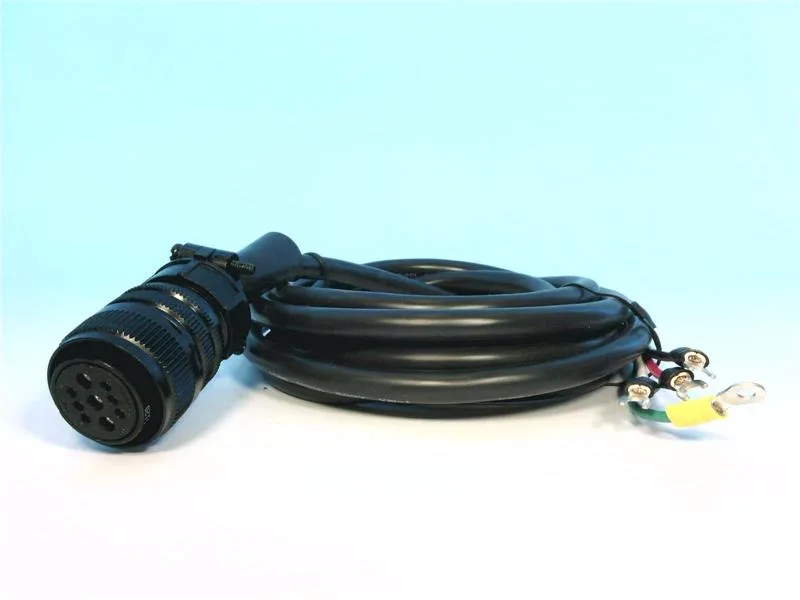

Schneider Electric VW3M5122R30 power cable, 3 m, 4 x 2.1 mm², flying leads with metal connector for servo motor side, no brake wires.

$166.74 – $226.11Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

VW3M5122R30 — Identification
ParameterValue
Product / component typePower cable
Accessory categoryConnection accessories
Accessory typePre-wired connector
VW3M5122R30 — Cable & Connector
ParameterValue
Cable length3 m
Cable composition4 x 2.1 mm²
Electrical connection1 free end with flying leads for servo drive side 1 connector, material: metal for servo motor side

Product details

The VW3M5122R30 is a pre-wired power cable from Schneider Electric, 3 m long with a 4 x 2.1 mm² conductor composition. One end has flying leads for the servo drive side; the other carries a metal connector for the servo motor. This variant omits brake wires — it's a straight power feed for the motor windings, no holding brake circuit.

The 3 m length covers most cabinet-to-motor runs inside a machine cell; if your layout needs more reach, you'll need a longer cable or a junction box. The 4 x 2.1 mm² conductors handle the phase currents for a typical small-to-medium servo motor — the cross-section suggests a rating around 6-8 A continuous, though the exact thermal limit depends on ambient and bundling. The metal connector on the motor end is the military-style round type common on Lexium and other Schneider servos; the drive end is bare flying leads, so you terminate into the drive's power terminals or a mating connector block.

Frequently asked questions

Where can I buy VW3M5122R30 and get a price?

We source VW3M5122R30 through independent distribution channels — new-old-stock and surplus inventory. Submit an RFQ; availability and current pricing are confirmed at quote time.

What is the cable length of VW3M5122R30?

The cable is 3 m long, measured end to end including both connectors.

What is the conductor size and configuration?

Four conductors, each 2.1 mm² cross-section. Three phases plus ground (no brake wires).
