Schneider Electric VW3M5121R50 — Motor Control Accessories

VW3M5121R50 Power Cable, 5 m, 4 x 1.3 mm², Obsolete

MPNVW3M5121R50
Obsolete

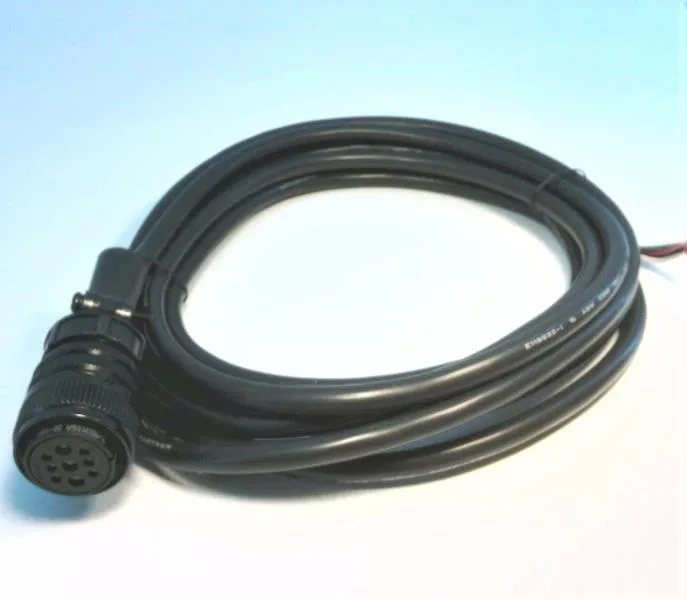

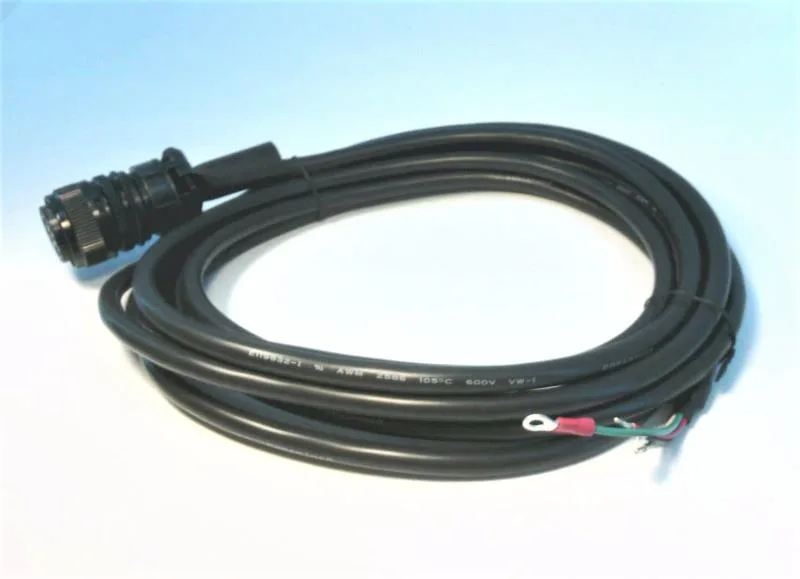

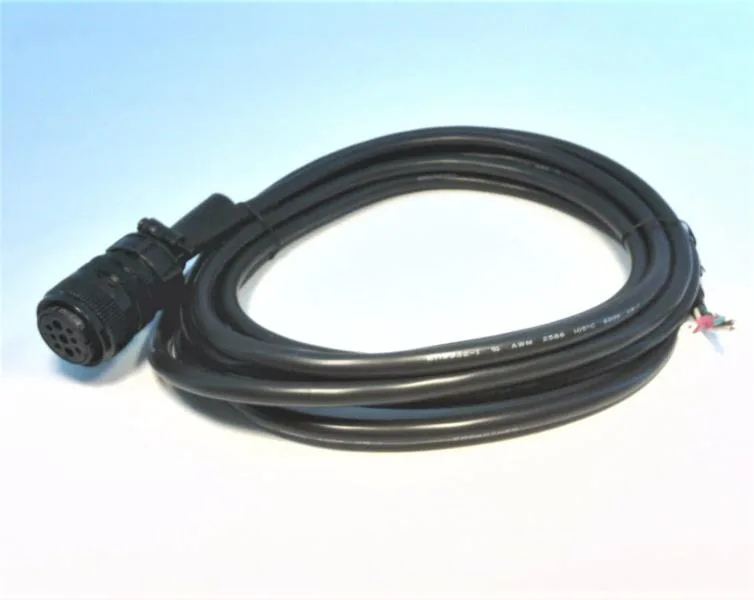

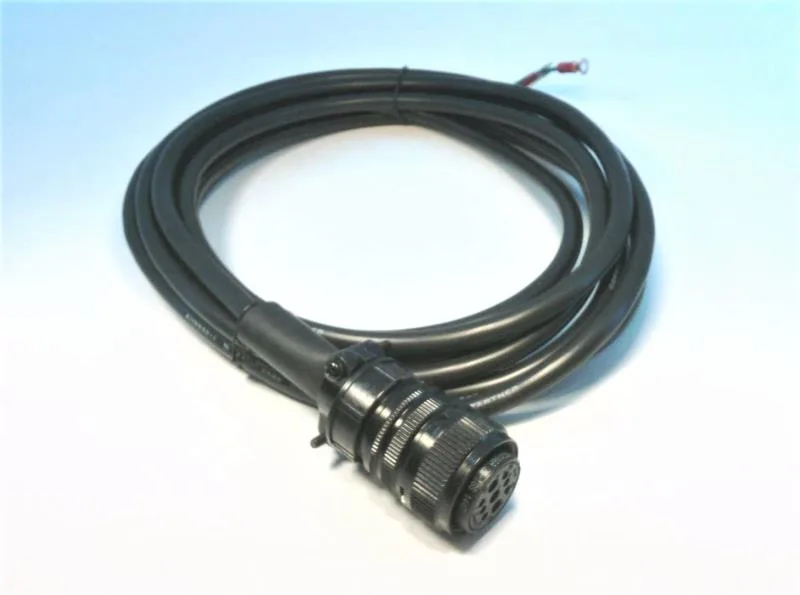

Schneider Electric VW3M5121R50 power cable, 5 m, 4 x 1.3 mm², flying leads, for servo drive military connector.

$101.16 – $144.95Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

VW3M5121R50 — Identification
ParameterValue
Product / component typePower cable
Accessory categoryConnection accessories
Accessory typePre-wired connector
VW3M5121R50 — Cable & Connector
ParameterValue
Cable length5 m
Cable composition4 x 1.3 mm²
Electrical connection1 free end with flying leads for servo drive side 1 connector, material: metal for servo motor side

Product details

The VW3M5121R50 is a 5 m power cable from Schneider Electric, built with 4 conductors of 1.3 mm² each. It terminates in flying leads on the drive side and a metal military-style connector on the motor side — no brake wires included. This is a pre-wired connection accessory for servo drive installations where you need a fixed cable run between the drive and motor, with the connector already molded on one end.

The 5 m length is the center-to-center distance between drive and motor — enough for most cabinet-to-machine runs but short enough to avoid voltage drop on the 1.3 mm² conductors at typical servo currents. The 4 x 1.3 mm² composition means three phases plus ground (or two phases plus two control cores, depending on the drive pinout); the absence of a brake pair is explicit in the description, so if your servo motor has a holding brake, this cable will not carry those wires. The flying-lead end requires a terminal block or direct wiring inside the drive cabinet — no pre-made connector on that side.

Frequently asked questions

Where can I buy VW3M5121R50?

We source this obsolete cable to order against an RFQ through independent distribution channels. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm position.

What is the cable length and conductor size?

The cable is 5 m long with 4 conductors of 1.3 mm² each. No brake wires are included.
