What this cable connects and why it matters

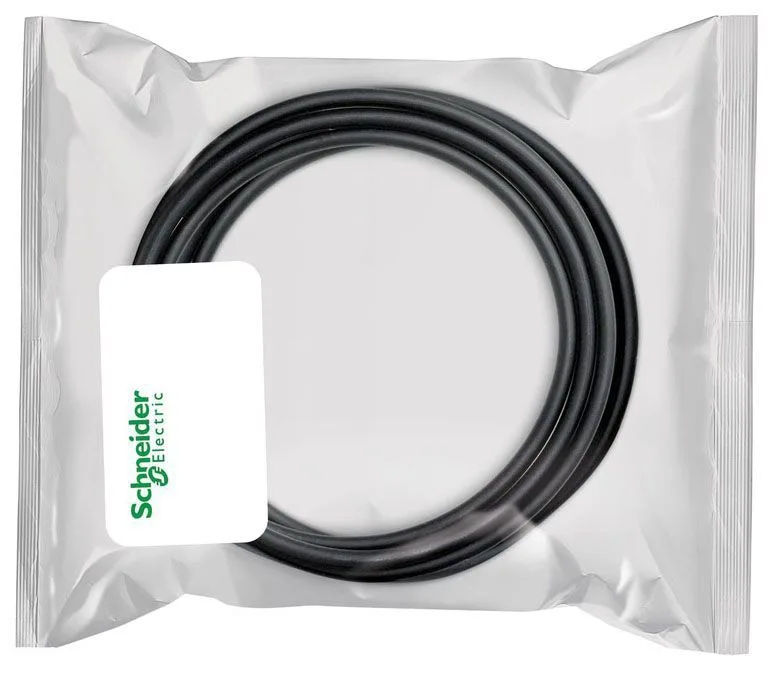

The VW3S8201R05 is the dedicated pulse/direction signal cable between a Schneider SD326 stepper drive and an external pulse generator — the part that carries the step and direction commands from the controller to the drive. Without it, the drive has no motion profile to execute. One end terminates in a 24-pin Molex SD326 connector that mates directly to the drive's control port; the other end is unterminated (cable end open) so you can wire it into the pulse generator's terminal block or connector of your choice. The cable is shielded — this matters in a stepper system because the pulse train is a fast-edged digital signal that radiates noise into adjacent wiring if unshielded. The shield drains that common-mode noise to ground at the drive end.
Length, voltage, and what they mean for panel layout
At 0.5 m (1.6 ft), this cable is meant for short panel-internal runs — the pulse generator sits in the same enclosure as the SD326 drive, not across the plant floor. Longer runs would need a differential line driver and a different cable assembly. The control circuit runs at 5 V, which is the logic level for most step/direction generators (PLC high-speed outputs, indexer modules, or dedicated pulse-train cards). Confirm your pulse source outputs a 5 V signal before committing — a 24 V pulse train will damage the drive input.
It is a standard accessory for the SD326 series, so production is tied to the drive family's lifecycle.
