Pulse/direction signal cable for Lexium SD3

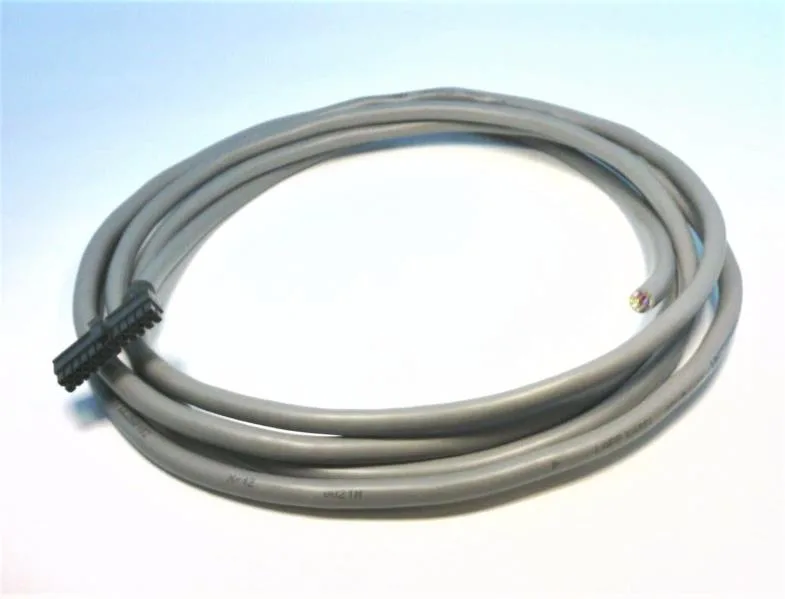

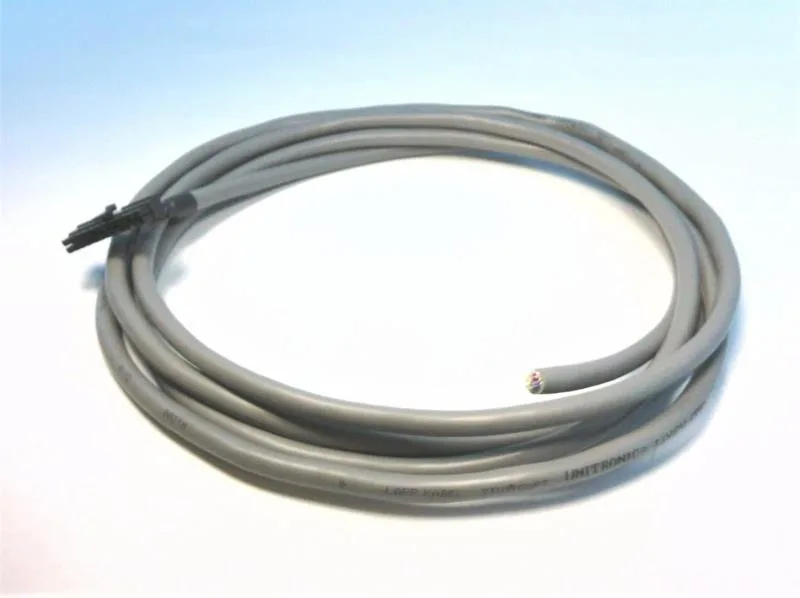

The VW3S8202R30 is the dedicated cable for carrying pulse/direction commands between a Lexium SD326 stepper drive and an external impulse generator. It runs 24 V control signals over a shielded 3 m length, with a 24-pole Molex SD326 connector on the drive end and an open end for field wiring to the generator.
Shielded construction and connector fit

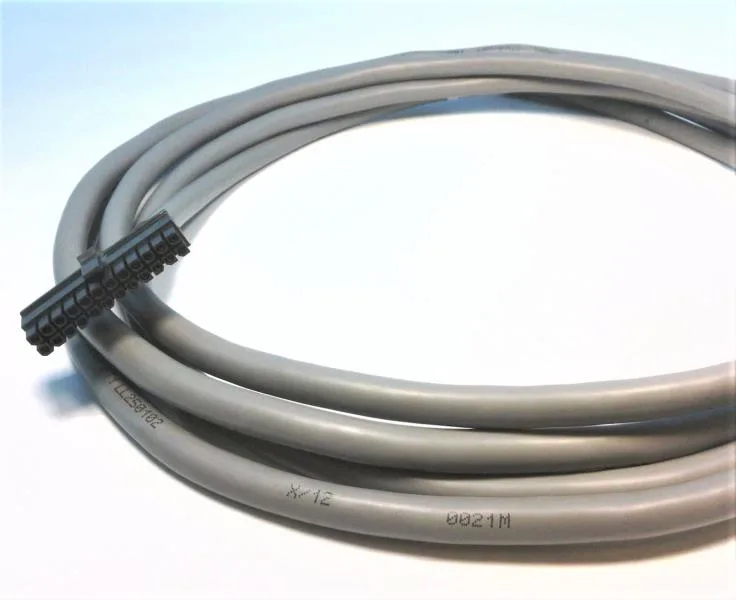

Shielded cable keeps pulse edges clean in electrically noisy cabinets — important when step-loss on a long run means a position error that the drive cannot correct. The 24-pole Molex SD326 connector mates directly with the SD326 drive port; the open end terminates at the generator terminals, so the installer controls the gland entry and cable routing.
