The Telemecanique XS1M08PA370 is an 8 mm diameter inductive proximity sensor with a 1.5 mm sensing range. Output is PNP normally open. It runs on 12 to 48 VDC and switches up to 200 mA. Cable is 3-wire, 2 meters long. Metal housing and IP67 rating mean it shrugs off coolant splash, dust, and the general grime you find on rotating equipment. Temperature range goes from -25 to 80 °C, so it will sit happily next to a hot bearing housing without complaint.

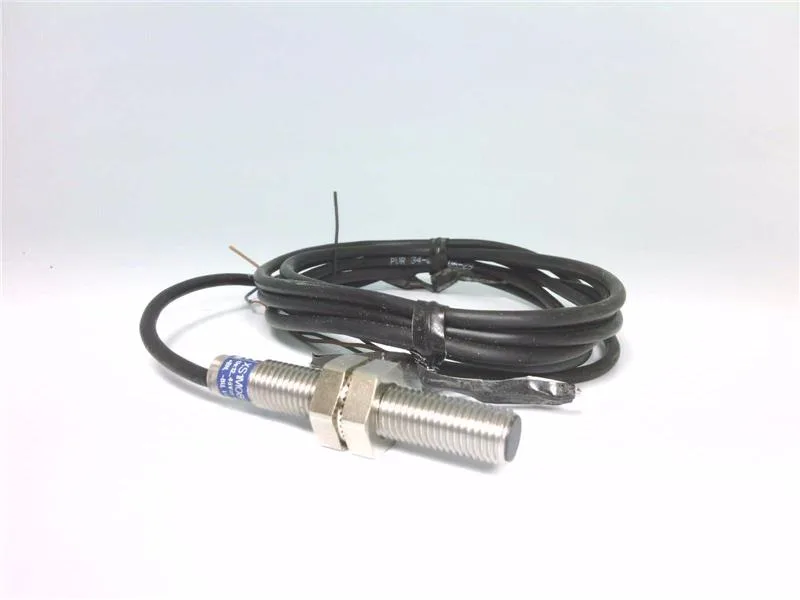

Telemecanique XS1M08PA370 Inductive Proximity Sensor, 1.5mm
MPNXS1M08PA370
Telemecanique XS1M08PA370, Inductive Proximity Sensor, 8 mm cylindrical, 1.5 mm sensing range, PNP NO output, 12-48 VDC, IP67.
$189.80Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Inductive Proximity Sensor |
| Parameter | Value |
|---|---|
| Electrical connection | Cable 3-Wires, 2 m |
| Parameter | Value |
|---|---|
| Housing material | Metal |
Product details
Frequently asked questions
What type of sensor is the XS1M08PA370?
It is an inductive proximity sensor with a PNP normally open output and a 1.5 mm sensing range.
MPN
XS1M08PA370
