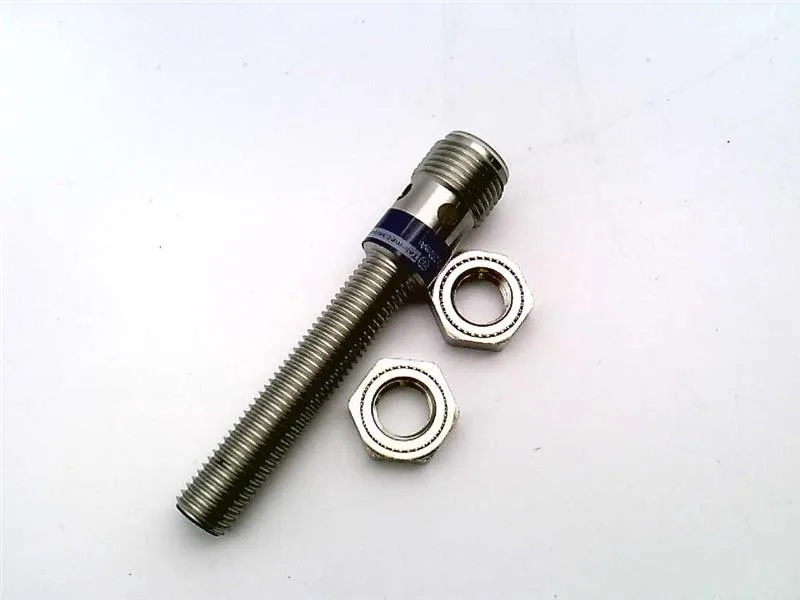

The Telemecanique XS1M08PC410D is a shielded 8 mm tubular inductive proximity sensor from the OsiSense XS series, rated for 12 to 24 VDC operation with a PNP output configurable as NO or NC. It switches at up to 5000 Hz and delivers 200 mA continuous load current.
Mounting & Wiring Fit
Threaded 8 mm barrel, shielded (flush mount). The 4-pin M12 male micro connector mates with standard M12 cordsets. Rated NEMA 3/4X/6P/12/13 and IP67 — suitable for washdown environments and wet locations. Operating temperature spans -13 to 176 °F.
