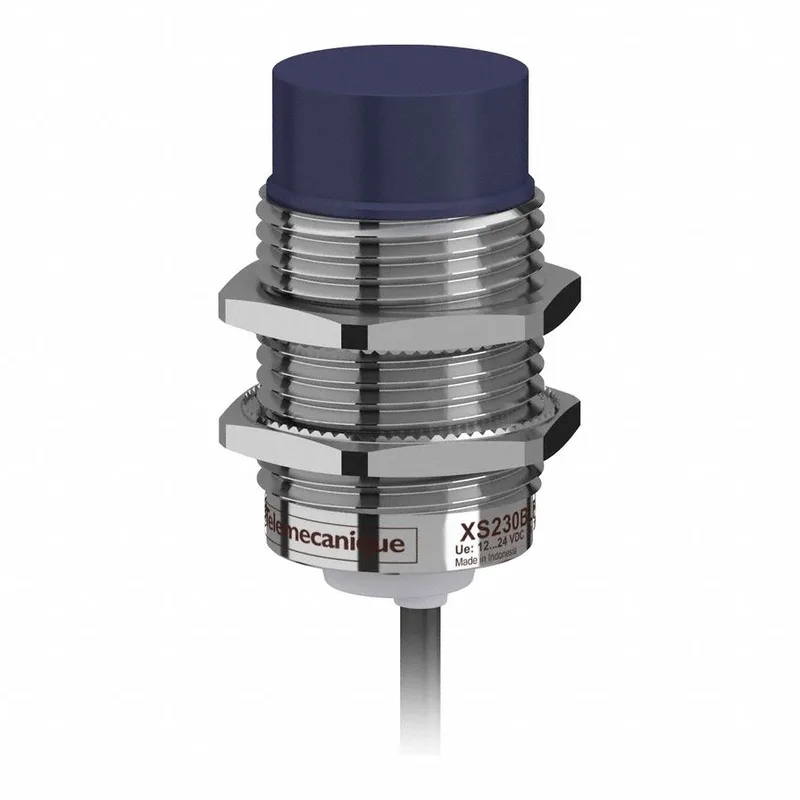

Inductive proximity sensor from the XS2 series, order code XS230BLPAL5. Unshielded M30 threaded barrel with PNP normally-open output, rated for 15 mm sensing distance. Supply range 12-24 VDC, maximum load current 200 mA. Prewired with a 5 m cable, IP67 and NEMA 4X enclosure. Body is nickel-plated brass with an integrated indicator light.
Mounts via the M30 threaded body using the supplied hex nuts. Unshielded construction means the sensor can be flush-mounted in metal without derating the 15 mm sensing range — confirm the target material (mild steel reference) to ensure reach. Cable exits axially; 5 m length covers most panel-to-gland routing without a junction box. Indicator light visible from the side of the barrel for quick status check.
Compliance: CE, CSA, RoHS, and UL Listed marks apply. The nickel-plated brass body offers corrosion resistance for washdown or outdoor enclosures (NEMA 4X). For panel-builder traceability, the 5 m cable is terminated in bare wires—no connector to spec.
